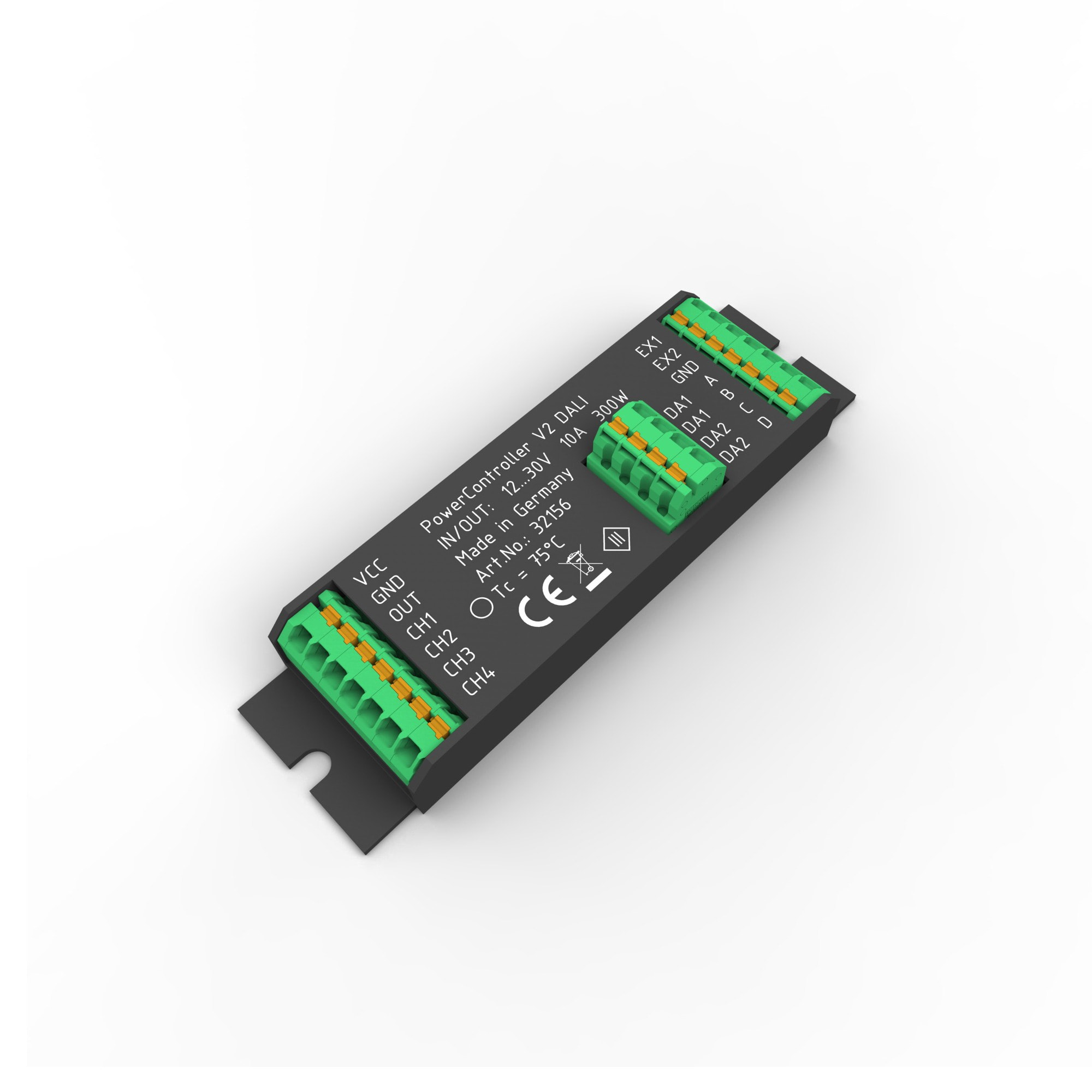

This new version of the PowerController V2 is a powerful Dali enabled control unit for dimming of single color LED modules. It offers the option of integrating up to 4 DALI 102 devices into a DALI system from a small package of only 100 x 29 x 13 mm in size. The DALI devices can be LED modules or strips with 10-30VDC input voltage and up to 300W total power. You can connect them in one chain for single control or in up to 4 chains for individual or group control.
Connect the two DALI inputs (DA2) on the power controller to the DALI BUS cable. The 4 outputs (CH1-CH4) are each connected to the negative lead of the monochrome modules, while the positive leads are connected to OUT via terminals (part no. 33736). The operating voltage comes from GND and VCC.
How it works
After all components have been properly wired, power can be applied to the PowerController V2 DALI and an addressing can then be performed on the DALI-BUS. Depending on the software used, new DALI devices will appear which can now be individualized.
The slim format and the practical input or ouput terminals allows easy installation in control cabinets. A total of up to 10 A can be switched via the outputs. The PowerController V2 DALI allows the control of constant voltage LED modules.
Control of multiple constant current LED modules is also possible
The Powercontroller V2 unit is compatible with the new extension constant current LED driver, article number 34722. With this driver you can control up to 4 groups of lightsources at a constant current of 1-1500mA and 4-42 V, such our LinearZ LED modules.
|Manufacturer Product Code||32156|
|Dimensions: Length (cm)||10|
|Availability beyond shown stock:||YES|
