Build Your Own LumiBar-112 Multicolor 3 channel Plug & Play, TW, Dynasolis, RGB, LED module Zhaga 28x2cm, Made in Germany, 24V
Use this specialized form to order your custom LumiBar-112 Multicolor 3 channel LED strips.
- More details below
- Terms & Conditions apply
- Information with * is required.

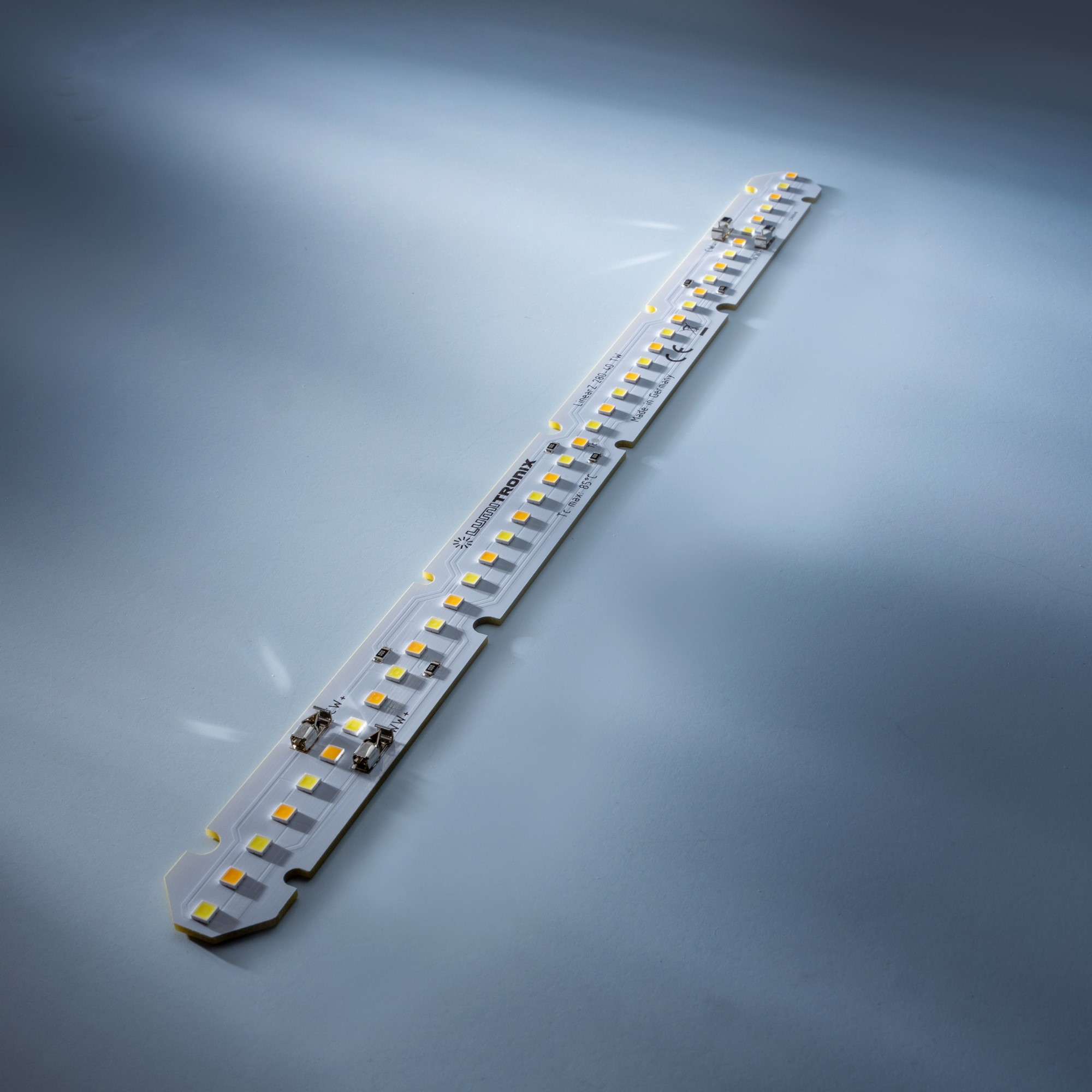

Build Your Own LumiBar-112 Multicolor 3 channel Nichia LED Strip
- LumiBar-112 is equipped with 112 Mid-Power Nichia 757 LEDs from Japan, with the highest performance on the market
- 280x20mm LED strip Designed according to the Zhaga standard (Book 7 L28W2)
- 3 channel configuration, with 28 LEDs for channel 1, 56 LEDs for channel 2, 28 LEDs for channel 3
- Easy-to-use plug-and-play connection system
- Color LED options: Azure (Dynasolis), Blue, Blue-Green, Green, Yellow, Red
- White LED CRI options: 70, 80, 90, 99
- Color temperature options: 1800K to 7800K
- Special Nichia technology options: Optisolis, Vitasolis, H6, HPS, Horticulture (at 5000K)
- 24VDC constant voltage
Build Your Own LumiBar-112 Multicolor 3 channel Plug & Play LED strip (up to 8000lm/m)
The LumiBar-112 is a 3 channel LED module with 28 clusters of 4 LEDs that can be customized to meet a wide range of dynamic lighting applications, including RGB, Tunable White, Two Color, Circadian and more. The second channel has double the number of LEDs, that can serve the purpose as the main lighting source or to focus more on a certain color.
The LED strip uses the latest generation Nichia 757 LED series, the industry leading 3030 Mid-power LEDs. The 757 White LED series have industry's highest luminous efficacy (up to 222 lm/w), reliability (up to 100.000h L70 lifetime) and feature special technologies such as full spectrum Optisolis, Vitasolis, H6, HPS, Horticulture. Color Nichia 757 LEDs include Azure (for Dynasolis), Blue, Green, Red and Yellow. For horticulture the special 5000K Nichia 757 LED is available.
The LED strip is designed according to the Zhaga standard (Book 7 L28W2) and uses plug & play connectors for solderless installation. The 24VDC design allows many strips to be powered in a row with common constant voltage power supplies, paired with a 3 channel dimmer. The high LED density results in no light spots and very high luminous flux, up to 8000 lm/m for the double channel in white 4000K CRI80. Its compact design makes it ideal for commercial and medical applications.
These features make it the ideal choice for building bright and compact luminaires for commercial spaces, warehouses, factories, or offices.
Made in Germany, with a lifetime of more than 100,000 hours, the LumiBar LED strip is a reliable and professional product for long-term use.
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Custom LumiBar-112 LED Strip Order Process Explained & Technical details:
Build Your Own LumiBar-112 Nichia LED Strip, Made in Germany, with Nichia 757 LED series.
Step 1: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 178 pcs.
Step 2: LED COLOR for each channel
For each of the three channels, the LED color can be selected. Based on the choice, further options will appear.
Step 2: Nichia 757 LED COLOR for each channel (optional, depends on choice)
For color LED selection, the LumiBar can be built with the latest generation Nichia 757 COLOR LED series, the industry leading 3030 Mid-power LEDs. There is only one type of color LED for each option.
Click here to see the current Nichia color LED line-up.
Nichia 757 Color LEDs include:
- AZURE: LEDs focusing on 460nm*. Component for Dynasolis. Choose a warm white LED for the second channel for complete effect.
- BLUE: 465nm peak*
- BLUE-GREEN: 505nm peak*
- GREEN: 515nm peak*
- YELLOW: 570nm peak*
- RED: 635nm peak*
*See Nichia LED spectrum.
The datasheet will specify Nichia LED part number.
Step 3: White LED Color temperature for each channel (optional, depends on choice)
The LumiBar can have white LEDs for one, two, three channels, or none. Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.
Step 4: Nichia 757 LED CRI and Special Type for each channel (optional, depends on choice)
The White channel(s) of the strip will use the latest generation Nichia 757 White LED series, the industry leading 3030 Mid-power LEDs. The 757 LED series have industry's highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime). Each LED has a typical consumption of 0.2W at 65mA, for a luminous flux up to 45 lm.
Click here to the see current Nichia line-up.
Special Nichia 757 LED types include:
- Optisolis 757 & CRI99: LEDs with a spectrum close to natural light, CRI99, R9 minimum 85
- H6 757 Series & CRI90: LEDs that achieve a color quality better than traditional LEDs (Ra≥90, R9≥50, R15≥85) while maintaining an efficacy better than Ra≥80 LEDs.
- Vitasolis 757 Series & CRI80: Vitasolis LEDs emit a natural white color with a high content of blue-green energy proven to stimulate awakening and supports a vibrant life.
- HPS 757 Series & CRI70: LED that genuinely reproduces the emission color of High-Pressure Sodium lamps (HPS), which is most often used for road lighting and outdoor lighting around the world.
- Rs060 Hortisolis: a 5000K LED that incorporates all the light required for plant growth into a single package by elaborating a combination of phosphors, making it possible to increase the production efficiency per area of the artificial farm.
Not all color temperatures are available for every LED type or CRI. Datasheet will specify Nichia LED part number.
Step 6: Scope of Delivery
The order process and online payment can be made for the full Order Quantity (pcs) or for drawing, design or samples. Based on your choice, the scope of delivery and the payment will be:
- Order Quantity (pcs): the full quantity entered at step 1, including drawing, design and samples.
- Design and Samples Only: Design, datasheet and 5 samples of the LED strip/module with the specifications from the order.
The datasheet will include:
- Dimensional drawing, with position of the LEDs, solder pads, current regulation components, printed information on the PCB.
- Summary of the main characteristics (technical data of the cutting unit), including dimensions, operation mode, voltage, current, power, color temperature, luminous flux, efficiency, CRI, LED type.
- PCB information: base material, layers, copper.
LumiBar-112 Technical Specifications:
- 112 Nichia 757 LEDs per strip, 400 per meter
- Dimensions (WxHxD): 280 x 20 x 4.57 mm
- Designed according to the Zhaga standard (Book 7 L28W2)
- Plug & Play connection system, for wire gauge: 18AWG - 26 AWG / 0.13mm² - 0.8mm²
- 24VDC constant voltage with 3 channel control, with common +
- Ultra-high brightness, up to 8000lm per meter for CRI80 at 5000K
- 100.000h lifetime
- Color LED options: Azure (Dynasolis), Blue, Blue-Green, Green, Yellow, Red
- White LED CRI options: 70, 80, 90, 99
- Color temperature options: 1800K to 7800K
- Special Nichia technology options: Optisolis, Vitasolis, H6, HPS, Horticulture (at 5000K), Dynasolis (Azure+Warm White)
- Rated output up to 8W per channel
- Optimized for office, industrial or commercial applications
- Easy to install
- 5-year warranty
- 3-step MacAdam ellipse
- Dimmable
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
Applications for Lumibar-112 LED Nichia Strips:
- Production of compact and very bright luminaires
- Commercial lighting for the presentation of products
- High flux, long-lasting lighting fixtures for shops, offices, TV studios, medical clinics
- Horticulture
- Emergency lighting
| SKU | lumibar_112_3ch |
|---|---|
| Luminous Flux per meter | 8000 |
| Dimmable | Tunable White, Dimmable, Adjustable color |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Product Family | LumiBarTW |
| Strip Type | Rigid |
| Dimensions | 280x20x4.57 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 4.57 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 24 |
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
