Daisy 14 Nichia NF2W757G-MT LED Strip 2 in 1 Tunable White 2700-6500K 290+300lm 175mA 19.9V 14 LEDs 28cm module (up to 1071lm/m)

MiniDaisy 14 Nichia NF2W757G-MT 2-in-1 LED Module Tunable White 2700K-6500K, 290+300 lm, 2 x 175 mA, 28 cm

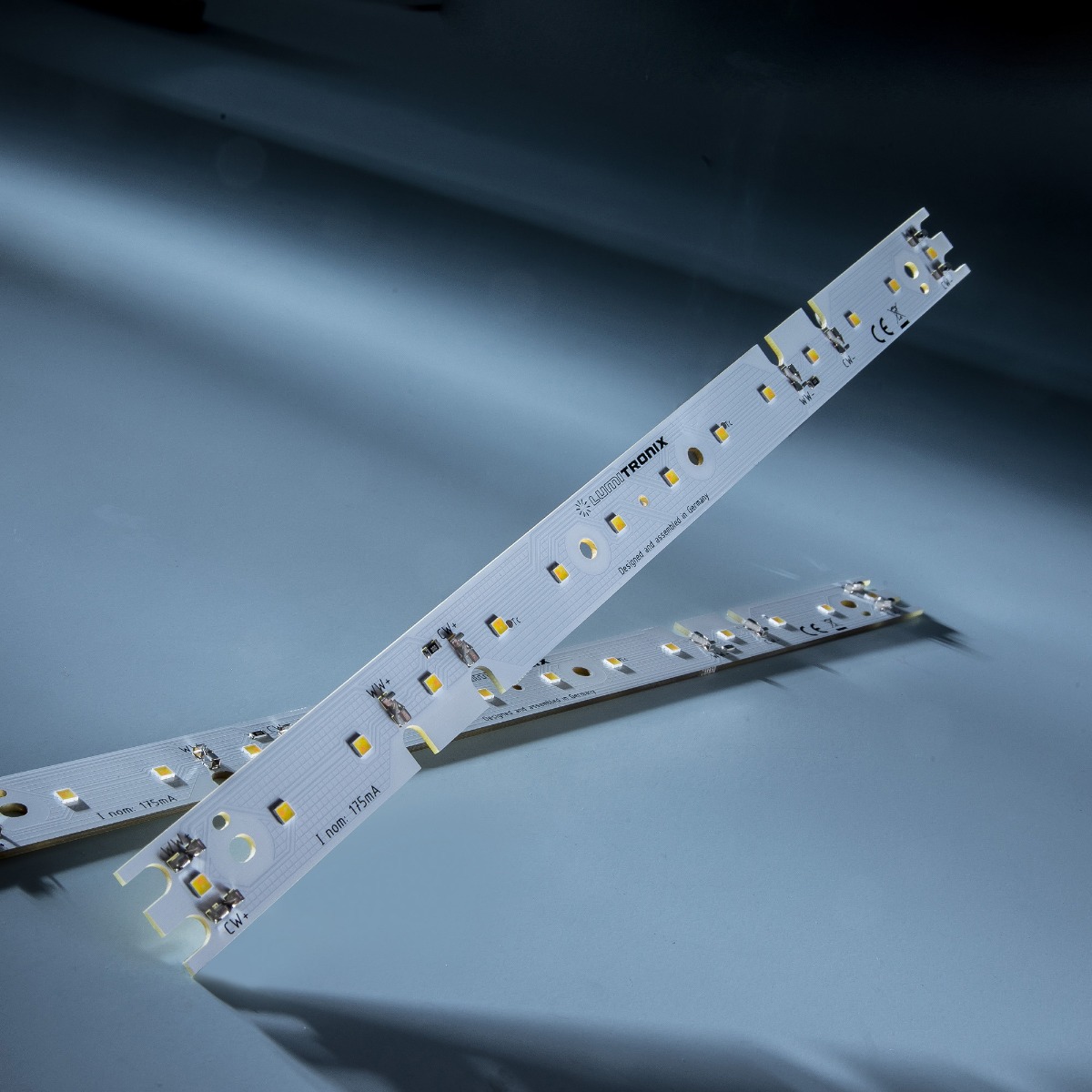

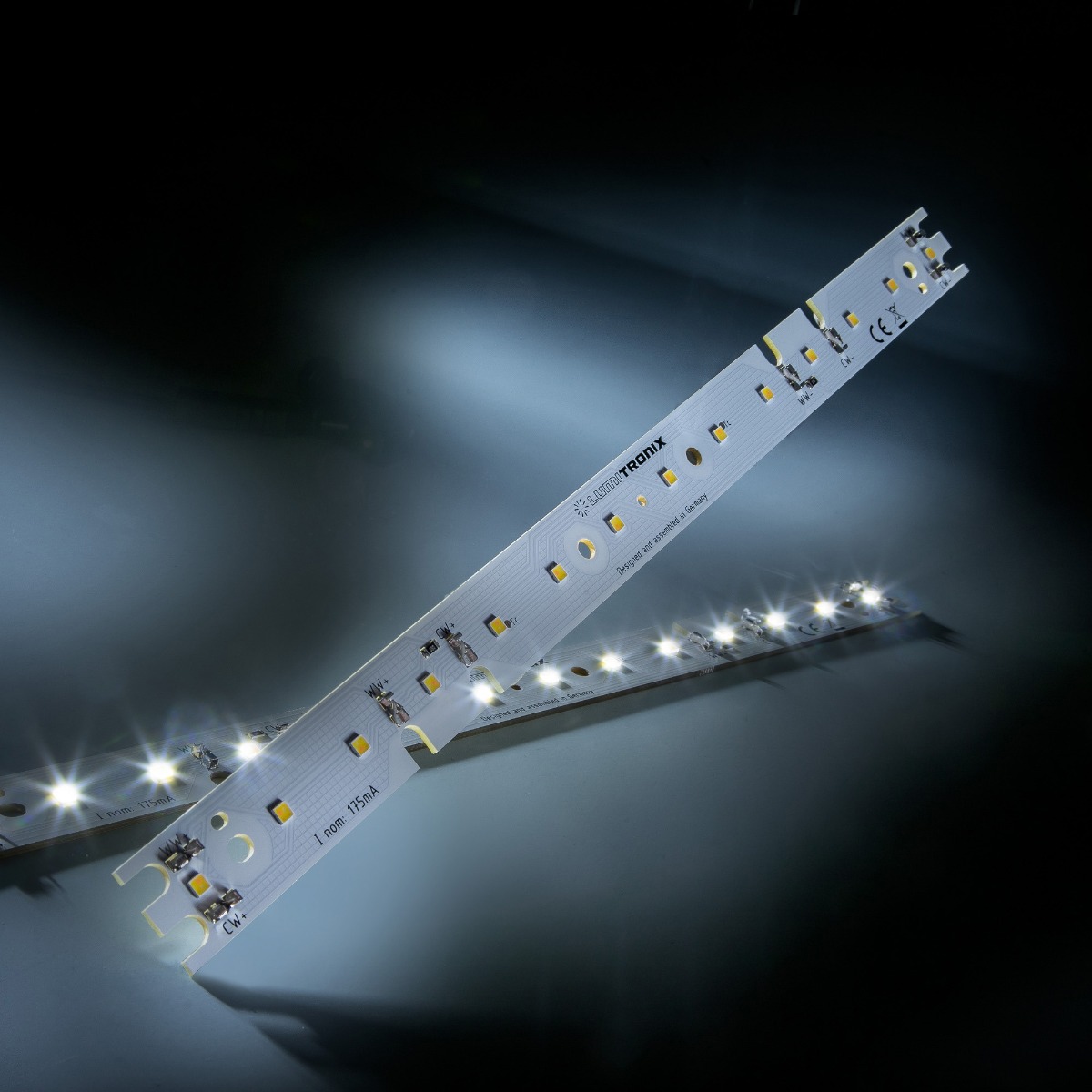

The MiniDaisy 14 TW is a slim, 20 mm wide tunable white LED module with 14 Nichia NF2W757G-MT 2-in-1 LEDs. Each LED contains both color channels under a single phosphor layer, so the color temperature can be adjusted over the wide range from warm 2700K to daylight 6500K with homogeneous light and finer color mixing than with separate warm and cold LEDs. Each channel delivers about 290 to 300 lm at 175 mA. Developed together with LEDiL for the DAISY-MINI rod lens, it is a compact light engine for narrow office, workplace, shop and restaurant luminaires.

Features of the MiniDaisy 14 TW LED Module

• 14 Nichia NF2W757G-MT 2-in-1 tunable white LEDs
• Color temperature adjustable from 2700K to 6500K under one light emitting surface
• Homogeneous light and smooth color mixing
• Luminous flux of 290 lm (2700K) and 300 lm (6500K)
• CRI above 80
• Constant current 175 mA per channel at 19.9 V
• Designed for the LEDiL DAISY-MINI rod lens
• Slim board: 279.65 x 20 x 3.55 mm
• Lifetime of more than 60,000 hours
• Made in Germany

Applications of the MiniDaisy 14 TW LED Module

As a tunable white light engine for LEDiL DAISY optics, the MiniDaisy 14 TW is designed for the following main applications:

• Linear lighting: Mounted end to end in a profile or luminaire body and fitted with DAISY lenses, MiniDaisy 14 TW modules create continuous lines of tunable white light for pendant and surface-mounted luminaires in offices, workplaces, shops, halls and commercial buildings. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Cove lighting and wall washing: Used without lenses in coves, or with the wide DAISY lenses for wall washing, the module bathes ceilings and walls in soft indirect light whose color temperature can follow the mood of the room. Learn more about cove lighting with LED strips.
• Tunable white and human-centric lighting: A single Nichia 2-in-1 LED type covers the wide range from warm 2700K to daylight 6500K under one light emitting surface, so the color mixes evenly at every setting. The light can follow the course of the day, with cooler, activating light in the morning and warmer, relaxing light in the evening, in offices, schools, care facilities and hotels. Read more about Human Centric Lighting with adjustable intensity and color temperature.

LEDiL DAISY Optics for a Complete Linear Luminaire

The MiniDaisy 14 TW is designed for the slim LEDiL DAISY-MINI rod lens: the 14 LEDs sit exactly under the 14 lens elements, and holes in the board accommodate the lens, so the module and optic form a compact, ready-to-use light engine for narrow linear luminaires.

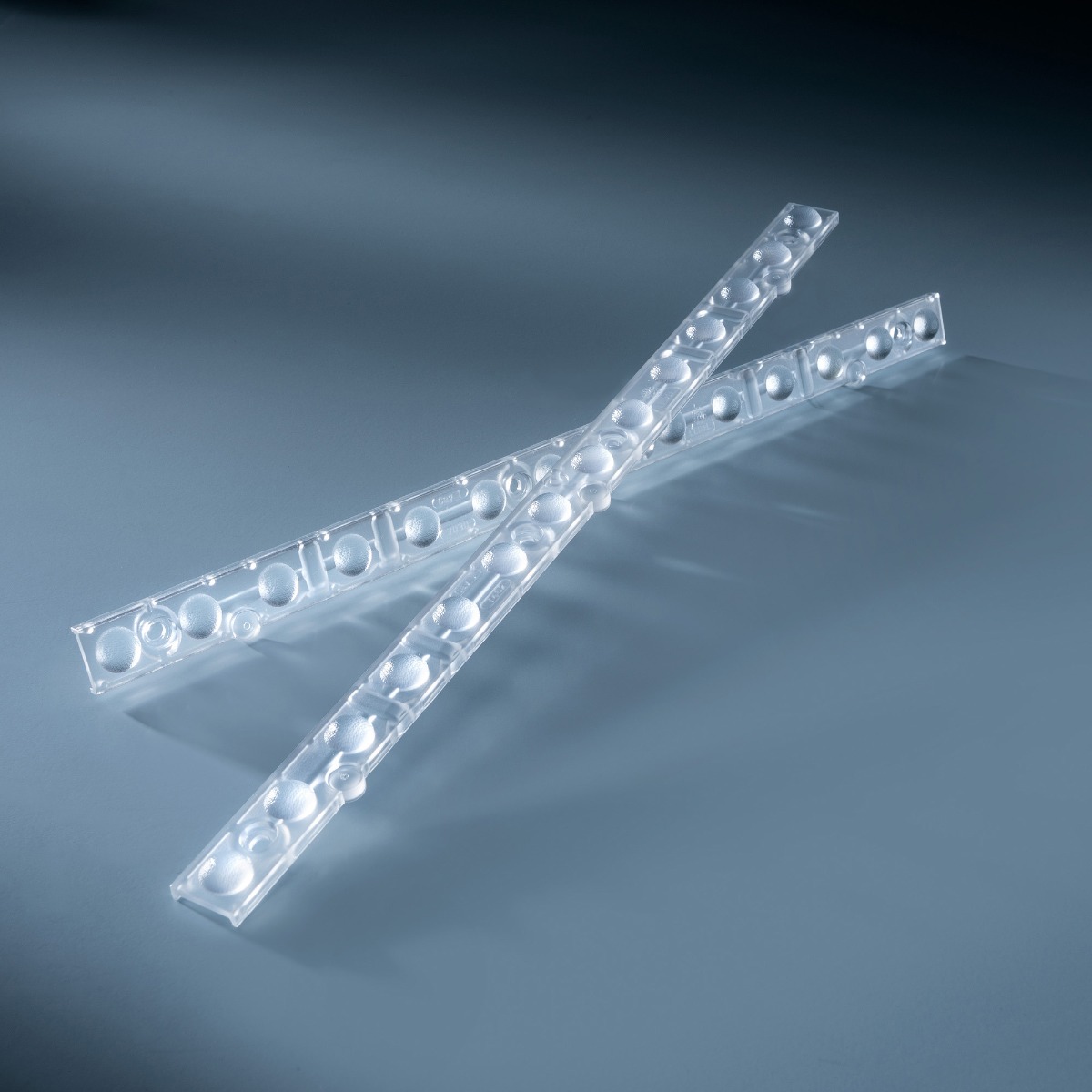

• LEDiL F17462_DAISY-MINI-W-D: rod of 14 lenses, wide beam of about 55° (SKU 35899), one per module

See all LEDiL DAISY lenses for Daisy modules.

Technical Data of the MiniDaisy 14 TW LED Module

• Article number (SKU): 35783
• LED: Nichia NF2W757G-MT (2-in-1 tunable white)
• Number of LEDs: 14
• Color temperature: 2700K to 6500K
• Color rendering index: CRI (Ra) >80
• Luminous flux: 2700K: 290 lm, 6500K: 300 lm
• Operating mode: Constant current, 2 channels
• Operating point: 175 mA per channel at 19.9 V
• Power: about 3.5 W per channel (calculated)
• Lifetime: >60,000 h
• Dimensions: 279.65 x 20 x 3.55 mm

Installation and Operation

• Mounting: mount the module on a heat sink, aluminum profile or the metal body of the luminaire for good heat transfer; use the holes in the board to position the DAISY lens.
• LED driver: operate each color channel with a constant current driver or a 2-channel tunable white controller set to 175 mA per channel (about 19.9 V); never connect the module directly to a constant voltage supply. Wire the channels according to the PCB markings. Dimming and color temperature control are done by the controller.
• Handling: do not touch or press the LEDs, observe standard ESD precautions, and keep the module away from aggressive chemicals. The module is not waterproof; for humid or outdoor environments, install it in a closed, suitable luminaire housing.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the MiniDaisy 14 TW Outperforms Low-Cost LED Modules

Compared with low-cost LED modules, the MiniDaisy 14 TW differs in two areas that decide how long a lighting installation performs well:

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost modules often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
• PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
