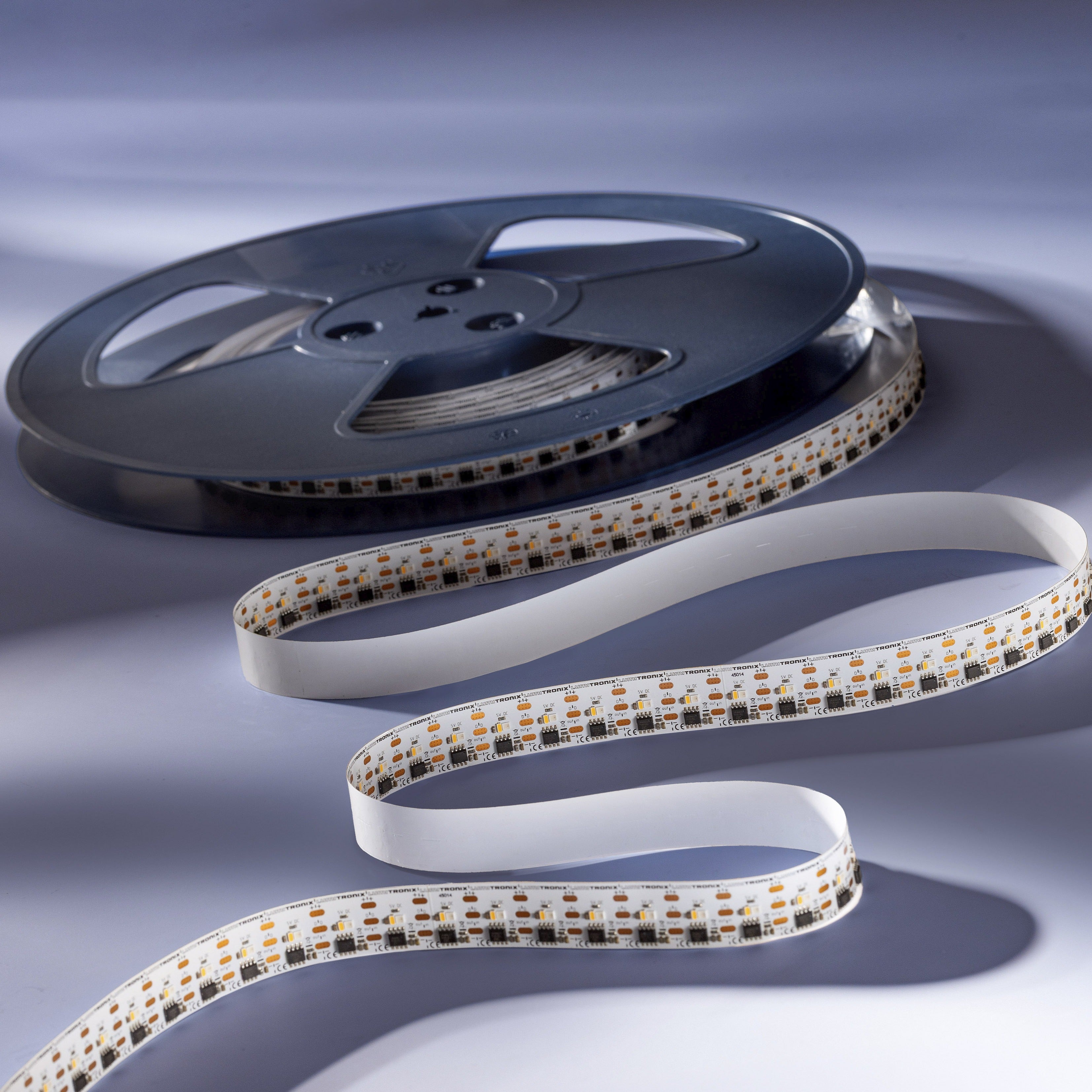

iFlex PRO RGBW LED Strip 5V 0.2W 136 LEDs/m 14.7mm R2R
- Individually addressable RGBW pixels, controlled through one data line
- 2 RGBW LEDs per 14.71 mm segment (about 136 LEDs per meter) for smooth gradients
- Dedicated warm white 2700K chip with CRI>80 and 3-step MacAdam binning
- Per segment: red 4.0 lm, green 13.0 lm, blue 3.1 lm, white 16.5 lm
- 5 V DC operation, per-channel current software-adjustable from 6.5 to 38 mA
- Compatible with Beckhoff EL2574 and Arduino
- Lifetime of more than 60,000 hours for red, green and white (blue: 35,000 hours)
- Made in Germany, 5-year warranty
iFlex PRO Addressable RGBW LED Strip 5 V with Individually Controllable Pixels

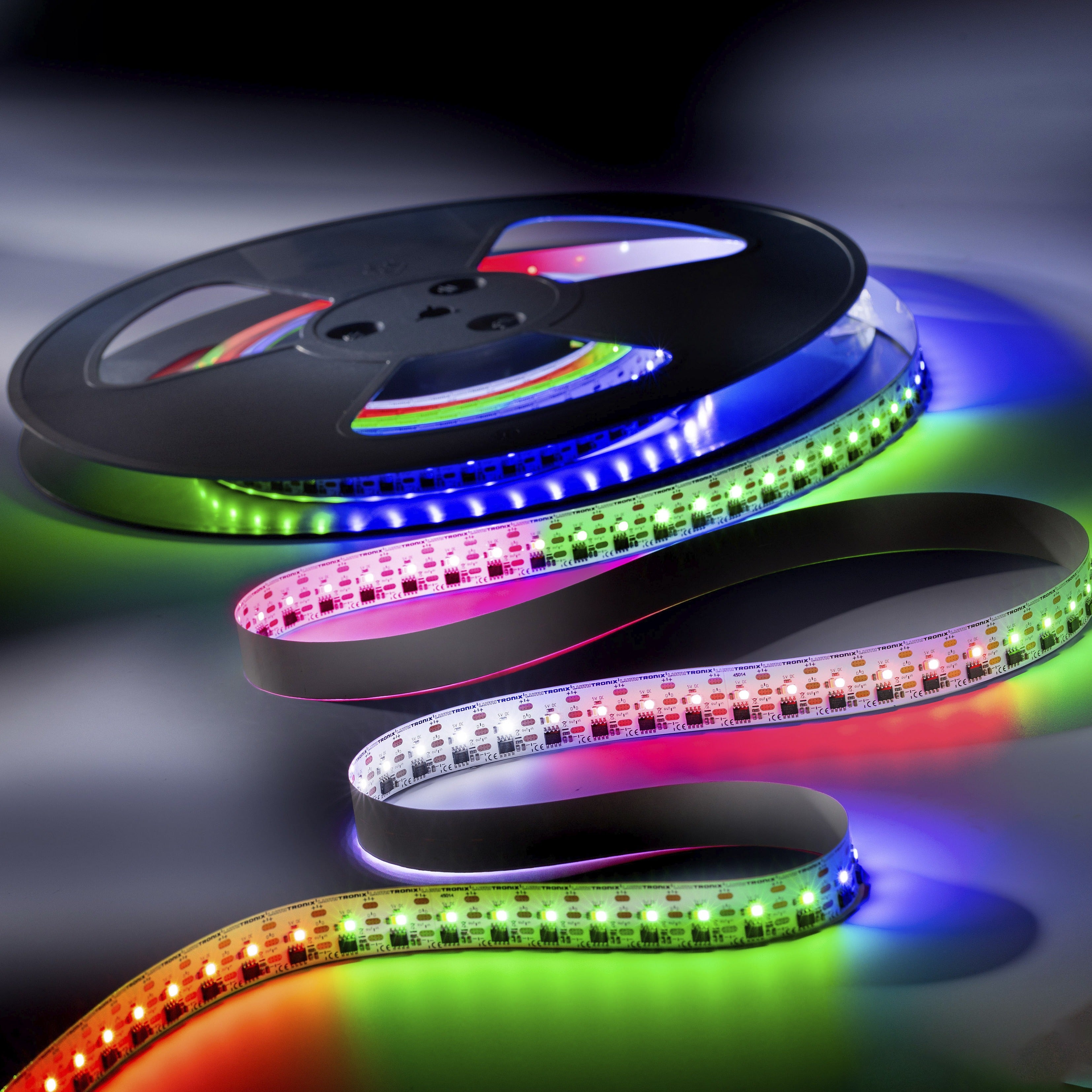

The iFlex PRO is a flexible, addressable RGBW LED strip for professional media, stage, architectural and signage installations. Every 14.71 mm segment carries two RGBW LEDs (about 136 LEDs per meter), and each pixel can be controlled individually through a single data line. This makes dynamic color effects, smooth gradients, animations and pixel-mapped lighting possible along lines, contours and surfaces.
Unlike a plain RGB strip, the iFlex PRO combines red, green and blue with a dedicated warm white 2700K chip in every pixel. White mixed from three colors always looks tinted and renders colors poorly, whereas the real white LED, with CRI above 80 and 3-step MacAdam binning, provides clean, usable white light for general lighting, while the color channels remain available for effects.
The strip operates at 5 V, and the current of each channel is software-adjustable from 6.5 to 38 mA. It works with the Beckhoff EL2574 pixel LED terminal and with a dedicated Arduino library, so it can be integrated into building automation, show control and creative technology projects alike. Made in Germany in our reel-to-reel process, it can be separated with scissors after every 14.71 mm segment.
Features of the iFlex PRO LED Strip
- Individually addressable RGBW pixels, controlled through one data line
- 2 RGBW LEDs per 14.71 mm segment (about 136 LEDs per meter) for smooth gradients
- Dedicated warm white 2700K chip with CRI>80 and 3-step MacAdam binning
- Per segment: red 4.0 lm, green 13.0 lm, blue 3.1 lm, white 16.5 lm
- 5 V DC operation, per-channel current software-adjustable from 6.5 to 38 mA
- Compatible with Beckhoff EL2574 and Arduino
- Can be cut every 14.71 mm
- Power feed possible from either side
- Lifetime of more than 60,000 hours for red, green and white (blue: 35,000 hours)
- Wide 120° beam angle
- Segment dimensions: 14.71 x 20 x 1.74 mm
- Reel-to-reel production
- 5-year warranty
- Made in Germany
Applications of the iFlex PRO LED Strip
Thanks to its individually controllable RGBW pixels and fine LED pitch, the iFlex PRO is designed for the following main applications:
- Linear lighting: In aluminum profiles with an opal diffuser, the fine pitch of about 7 mm creates continuous lines of light that can show white light, static colors or moving effects such as color runs, gradients and chasers, for architectural light lines, facades, stages and media installations. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
- Cove lighting: In ceiling and wall coves, the warm white channel provides pleasant ambient light for everyday use, while colors and dynamic scenes can be added for events and special moments, ideal for hotels, bars, restaurants, event spaces and showrooms. Learn how to plan it in our cove lighting guide.
- Signage and displays: The flexible strip follows letters, logos and contours, and every pixel can change color and brightness, so signs and displays can show animated content, color changes and attention-grabbing effects. For a uniform result, match the LED pitch to the distance from the cover. More about LED modules for signage backlighting and LED pitch and distance to cover for optimum backlighting.
- Multi-color lighting with 4 channels: With red, green, blue and white in every pixel, colors and white can be mixed freely, from pastel tones to saturated colors and clean white light. Discover our 4-channel LED strips and modules (RGB-W, multi-color).
Technical Data of the iFlex PRO LED Strip
- Article number (SKU): 45014
- Model family: iFlex PRO
- Light colors: Red, green, blue and warm white 2700K
- White light: CRI (Ra) >80, 3-step MacAdam ellipse, photometric code 827/339, efficacy 78.6 lm/W
- Luminous flux per segment: Red 4.0 lm, green 13.0 lm, blue 3.1 lm, white 16.5 lm (RGB ±40%)
- Beam angle: 120°
- Lifetime: Red, green and white >60,000 h; blue >35,000 h
- Operating voltage: 5 V DC
- Control: Individually addressable, one data line; per-channel current adjustable from 6.5 to 38 mA
- Compatible control: Beckhoff EL2574, Arduino
- Current per segment: Red 42 mA, green 39 mA, blue 39 mA, white 42 mA
- Power per segment: Red 0.21 W, green 0.20 W, blue 0.20 W, white 0.21 W; standby 0.02 W
- LED density: 2 LEDs per 14.71 mm segment, about 136 LEDs per meter
- Segment dimensions: 14.71 x 20 x 1.74 mm (L x W x H)
- Cutting interval: 14.71 mm
- Operating temperature at Tc: -40°C to +85°C
- Ambient temperature: -40°C to +50°C
- Storage temperature: -40°C to +100°C
- Certifications: CE, RoHS, REACH
- Photobiological safety (EN 62471): Risk group RG0
- Energy efficiency class: G
- Photometric reference: Values measured at TJ = 65°C, ±10%
Installation and Operation

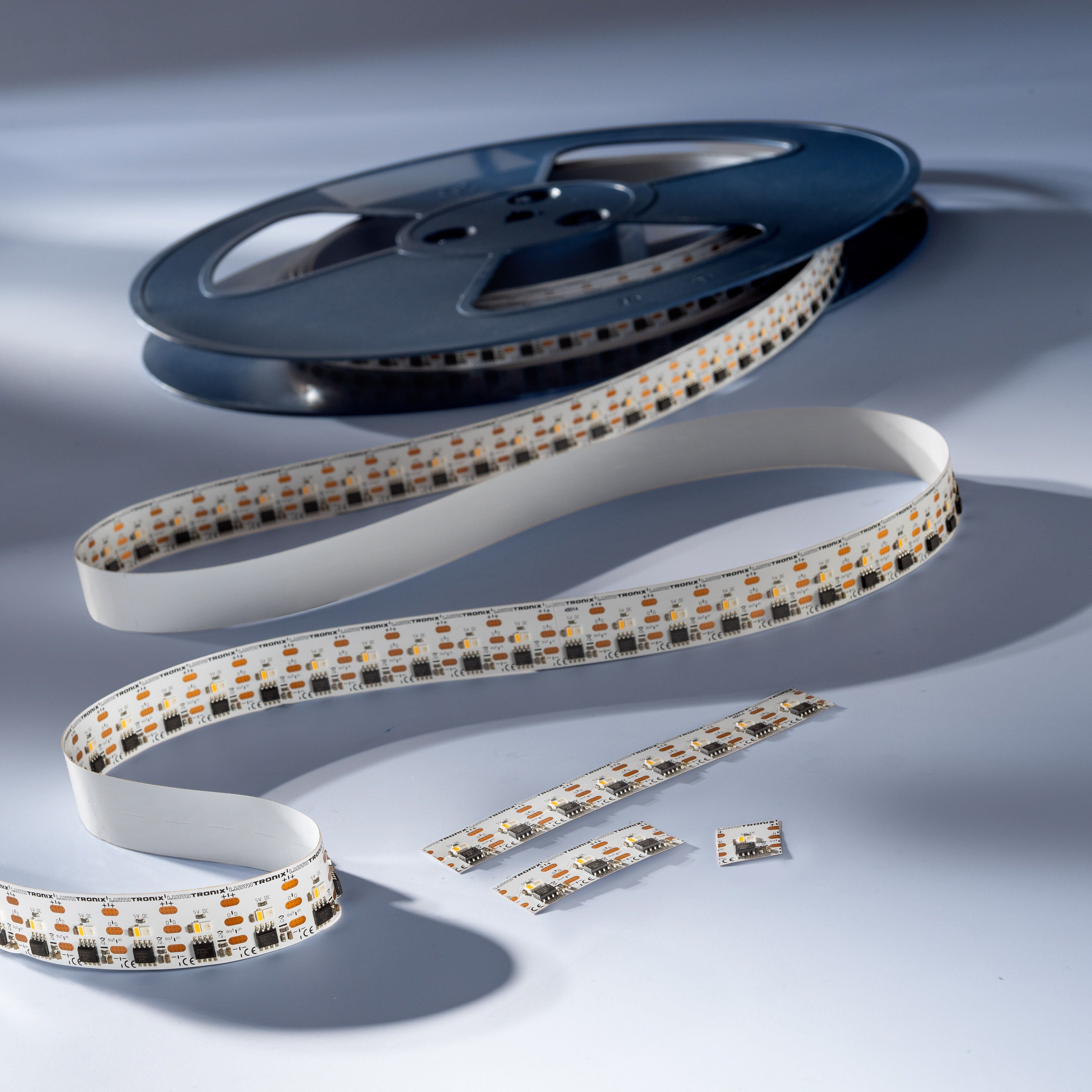

- Cutting: the strip can be separated with scissors every 14.71 mm, between two segments.
- Connection: connect +5 V, Data and GND as marked on the strip. Power can be fed from either side, but the data signal must always be fed in at the side marked "in", following the direction from "in" to "out".
- Power supply: use a stabilized 5 V DC power supply with short-circuit, overload and overtemperature protection. The maximum operating length depends on the total current and the number of feed points: for longer runs, add feed points as shown in the operating-length graph of the datasheet.
- Control: drive the strip with a compatible pixel controller, such as the Beckhoff EL2574, or with an Arduino.
- Mounting: mount the strip on a stable surface, ideally in one of our aluminum profiles with a diffuser cover, and operate it within the specified temperature limits.
- Handling: do not twist, crease or sharply bend the strip, do not apply force to LEDs, ICs, solder joints or conductor tracks, and observe standard ESD precautions.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 5-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 45014 |
|---|---|
| Color | RGBW |
| Power (W) | 0.2 |
| Warranty (months) | 36 |
| Product lifetime (h) | 36000 |
| Manufacturer Product Code | 45014 |
| Product Family | iFlex PRO |
| Strip Type | Flexible |
| LEDs per meter | 136 |
| LEDs number per sales unit | 2 |
| Dimensions | 14.7 mm |
| Dimensions: Length (cm) | 1.47 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 5 |
