LumiFlex COB LED Strip with continuous light Blue 590lm 24V 5m roll (118lm/m and 6.68W/m)
- COB technology with 576 LED chips per meter for continuous, dot-free light
- Blue light, 453 nm
- Luminous flux: 118 lm per meter, 590 lm per reel
- Ultra-wide 180° beam angle
- 24 V DC constant voltage, dimmable
- Power consumption: 6.68 W per meter, 33 W per 5 m reel
- Lifetime of more than 15,000 hours
- Quality made in Germany

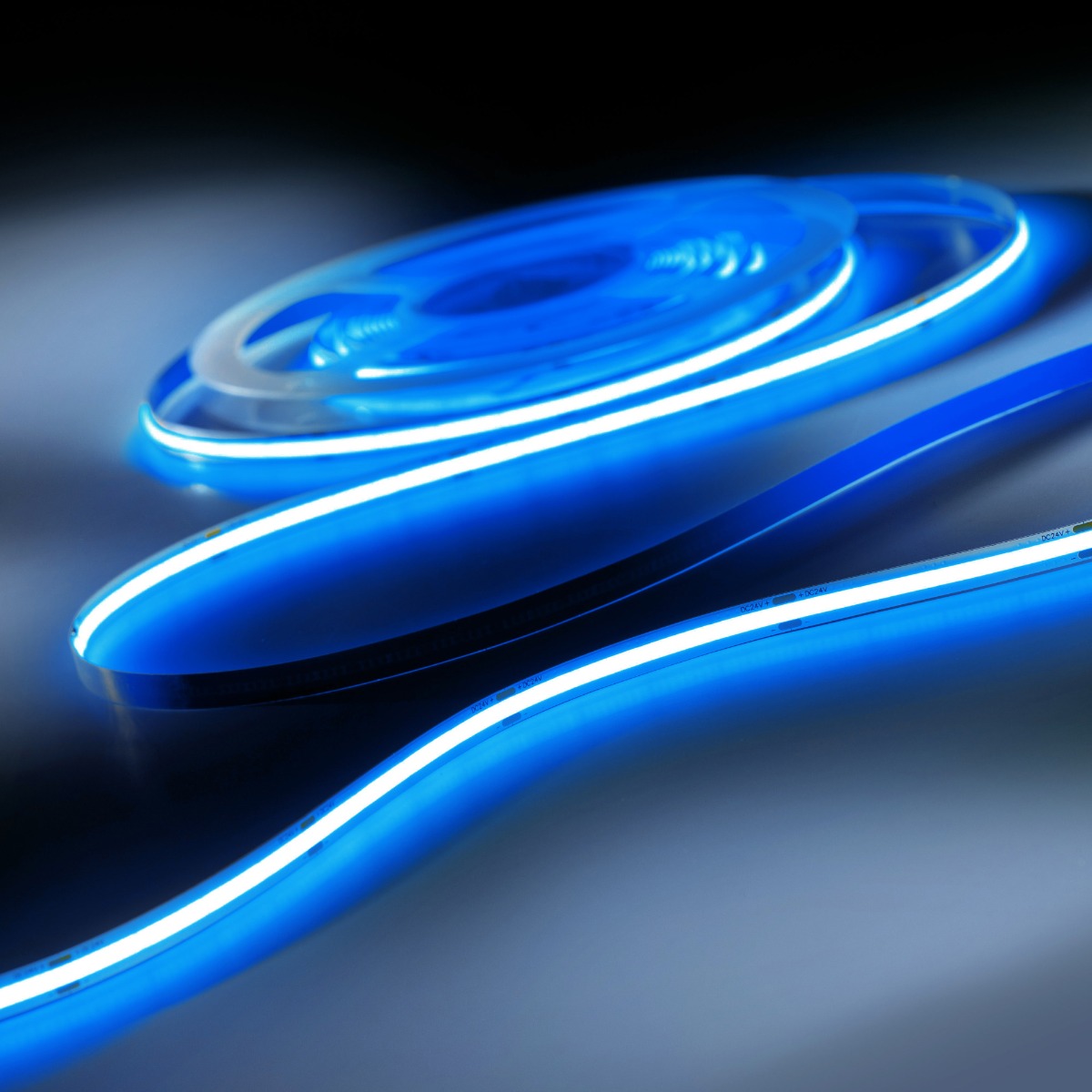

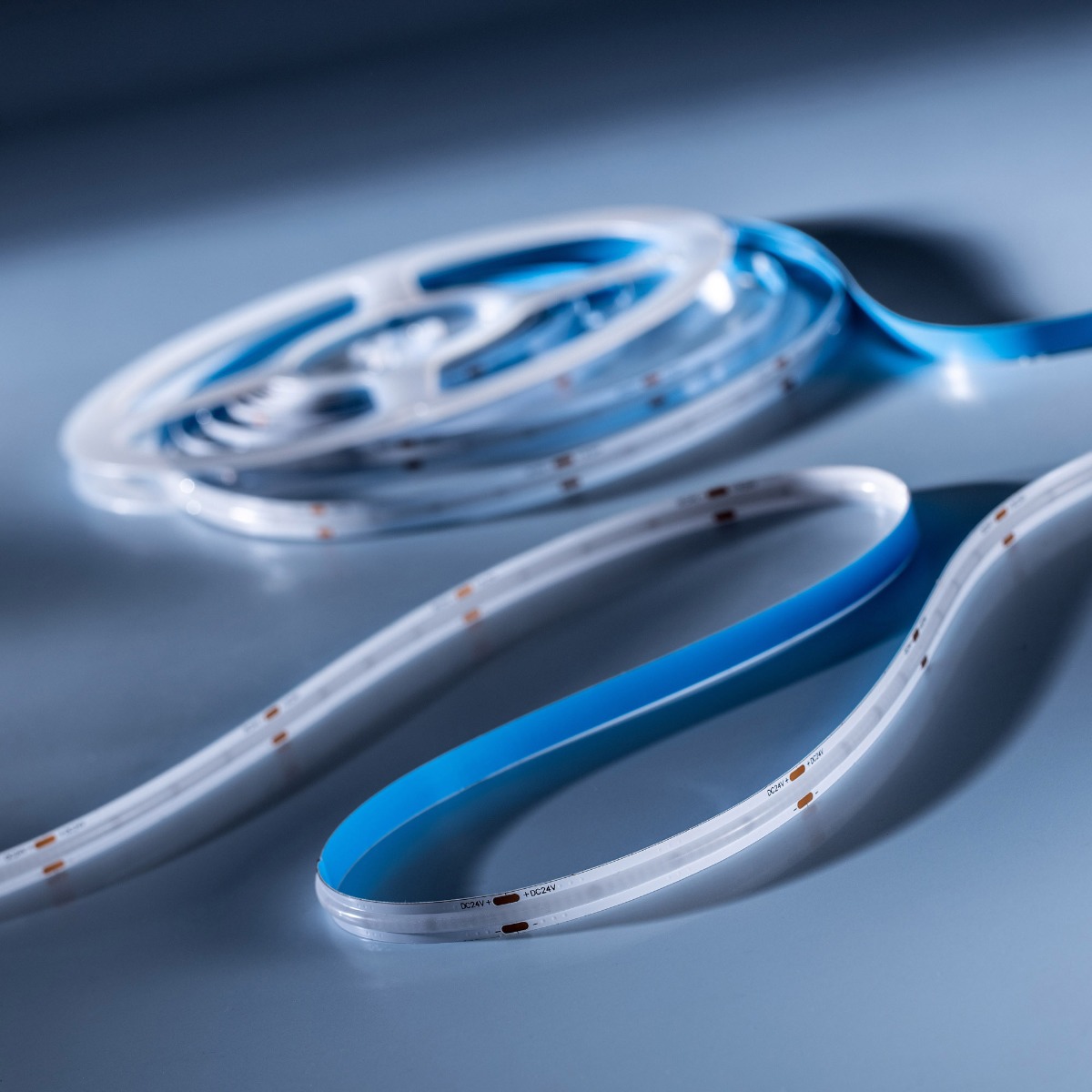

LumiFlex COB LED Strip Blue 453 nm with Continuous Colored Light
The LumiFlex COB blue LED strip delivers a perfectly uniform line of blue light (453 nm) along the entire 5 m length. This is achieved with chip-on-board (COB) technology: 576 LED chips per meter form one continuous line of light, without visible LED points, and with an ultra-wide 180° beam angle. The strip delivers 118 lm per meter at 6.68 W per meter.
The LumiFlex COB is the perfect solution for continuous, very uniform colored lines of light, even from very slim aluminum profiles, recessed or surface-mounted. Combined with our aluminum profiles, it creates minimalist luminaires for architectural color accents in residential, office and commercial buildings. Installation is simple: the self-adhesive back adheres reliably to almost all surfaces, and the strip can be cut every 62.5 mm with scissors.
Features of the LumiFlex COB LED Strip Blue
- COB technology with 576 LED chips per meter for continuous, dot-free light
- Blue light, 453 nm
- Luminous flux: 118 lm per meter, 590 lm per reel
- Ultra-wide 180° beam angle
- 24 V DC constant voltage, dimmable
- Power consumption: 6.68 W per meter, 33 W per 5 m reel
- Can be cut every 62.5 mm
- Connection cable (2-wire) approx. 15 cm
- Double-sided, thermally conductive adhesive tape, no additional cooling required
- Dimensions: 5040 x 8 x 1.5 mm
- Protection class IP20
- Lifetime of more than 15,000 hours
- Quality made in Germany
Applications of the LumiFlex COB LED Strip Blue
Thanks to its continuous colored light and slim format, the LumiFlex COB blue is designed for the following main application:
- Cove lighting: In ceiling and wall coves, the continuous COB line produces smooth, indirect blue light without light points, for architectural color accents in hotels, bars, restaurants, shops, offices and homes. Combined with white light from a separate strip, it adds a distinctive accent to the room. Learn how to plan it in our cove lighting guide.
Technical Data of the LumiFlex COB LED Strip Blue
- Article number (SKU): 37925
- Technology: COB (chip on board), 576 chips per meter
- Light color: Blue, 453 nm
- Luminous flux: 590 lm per reel, 118 lm per meter
- Beam angle: 180°
- Lifetime: >15,000 h
- Operating mode: Constant voltage, 24 V DC, dimmable
- Power: 33 W per 5 m reel, 6.68 W per meter
- Dimensions: 5040 x 8 x 1.5 mm (L x W x H)
- Cutting interval: 62.5 mm
- Connection: 2-wire cable, approx. 15 cm
- Protection class: IP20
Installation and Operation
- Cutting: the strip can be cut with scissors every 62.5 mm, at the marked cutting points.
- Mounting: clean and degrease the surface, then fix the strip with its self-adhesive tape. For the best heat transfer, light diffusion and mechanical protection, we recommend mounting it in one of our aluminum profiles.
- Connection: use the pre-mounted 2-wire connection cable (approx. 15 cm) and connect it to a 24 V DC constant voltage LED driver; for dimming, use a suitable dimmer or controller.
- Power supply: operate the strip with a stabilized 24 V DC constant voltage LED driver that has short-circuit, overload and overtemperature protection. A full 5 m reel draws 33 W.
- Handling: avoid sharp bending and mechanical stress on the components, observe standard ESD precautions, and keep the strip away from aggressive chemicals. Store and operate it at 10% to 60% relative humidity.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Why Choose a COB LED Strip
- Continuous light without dots: hundreds of LED chips per meter under a continuous phosphor or encapsulation layer create a homogeneous line of light, with no visible LED points.
- Slim luminaires: because no extra distance is needed to blend individual LEDs, COB strips allow very slim and shallow aluminum profiles and minimalist luminaires.
- Ultra-wide 180° beam angle: light is spread evenly over the diffuser and surrounding surfaces.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: clear warranty terms and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 37925 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Blue |
| Luminous Flux per meter | 118 |
| Bright like (W) | 10 |
| Luminous Flux Typ (lm) | 590 |
| Power (W) | 33.4 |
| Viewing Angle | 180° |
| Warranty (months) | 36 |
| Lifetime for residential, 3h daily (yrs) | 12 |
| Product lifetime (h) | 15000 |
| Lifetime for commercial, 12h daily (yrs) | 4 |
| Manufacturer Product Code | 37208 |
| Product Family | LumiFlex COB |
| Strip Type | Flexible |
| Dimensions | 5040x8x1.5 |
| Dimensions: Length (cm) | 504 |
| Dimensions: Width (mm) | 8 |
| Dimensions: Height (mm) | 1.5 |
| Can be cut at (mm) | 62.5 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002306 |
| Forward Voltage Typ (V) | 24 |
