Build Your Own Seoul Viosys Violet UVC UVB Linear LED Module 12 x LEDs 275-310nm

The Violet UV LED Module is a high-performance ultraviolet light source engineered for demanding applications such as phototherapy, UV curing, materials testing, and medical instrumentation. Equipped with 12 Seoul Viosys UVC or UVB LEDs, it provides stable, precise output at 275/310 nm, offering excellent efficiency, reliability, and integration flexibility.

Custom LED Solutions: Tailored Lighting Excellence

Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.

Begin Your Custom LED Project

Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.

Step 1: Order Quantity (pcs)

How many modules do you need? While there is no MOQ, we recommend at least 10 pcs of Viosys UV LED module.

Step 2: UV LED Wavelength (nm)

Select the desired wavelength for the Viosys LED.

A wavelength range equal to or less than 280nm is called UV-C. Although UV-C can be dangerous to the human body depending on the energy levels, it is widely used in disinfection applications due to its strong virucidal power.

The UV-B range encompasses wavelengths 280-315nm. UV-B LEDs are alternative technology to mercury lamps and can also be used in agricultural applications and others.

Step 3: Viosys UV LED

The LED module will be built with the latest generation Viosys UV LED series.

Click here to see the current Viosys UV LED line-up.

The datasheet will specify the LED part number.

Step 4: UVC Lens System

You may add the LEDiL Lens system, VIOLET-12X1 to your order.

The LEDiL UVC rod lens VIOLET-12X1, the first of its kind, is specifically designed for surface, air and water disinfection. With its unique UV-resistant silicone structure and robust stainless-steel frame, this rod lens sets new standards in UVC application.

Material property: Made of highly UV-resistant silicone
Design: Specially developed for UVC applications
Lens array: Consists of 12 individual lenses
Protection: Waterproof (IP67) with robust stainless-steel frame
Performance: Requires only half the dosing time compared to quartz glass
Dimensions: 294.8 x 41.6 x 8.8 mm.

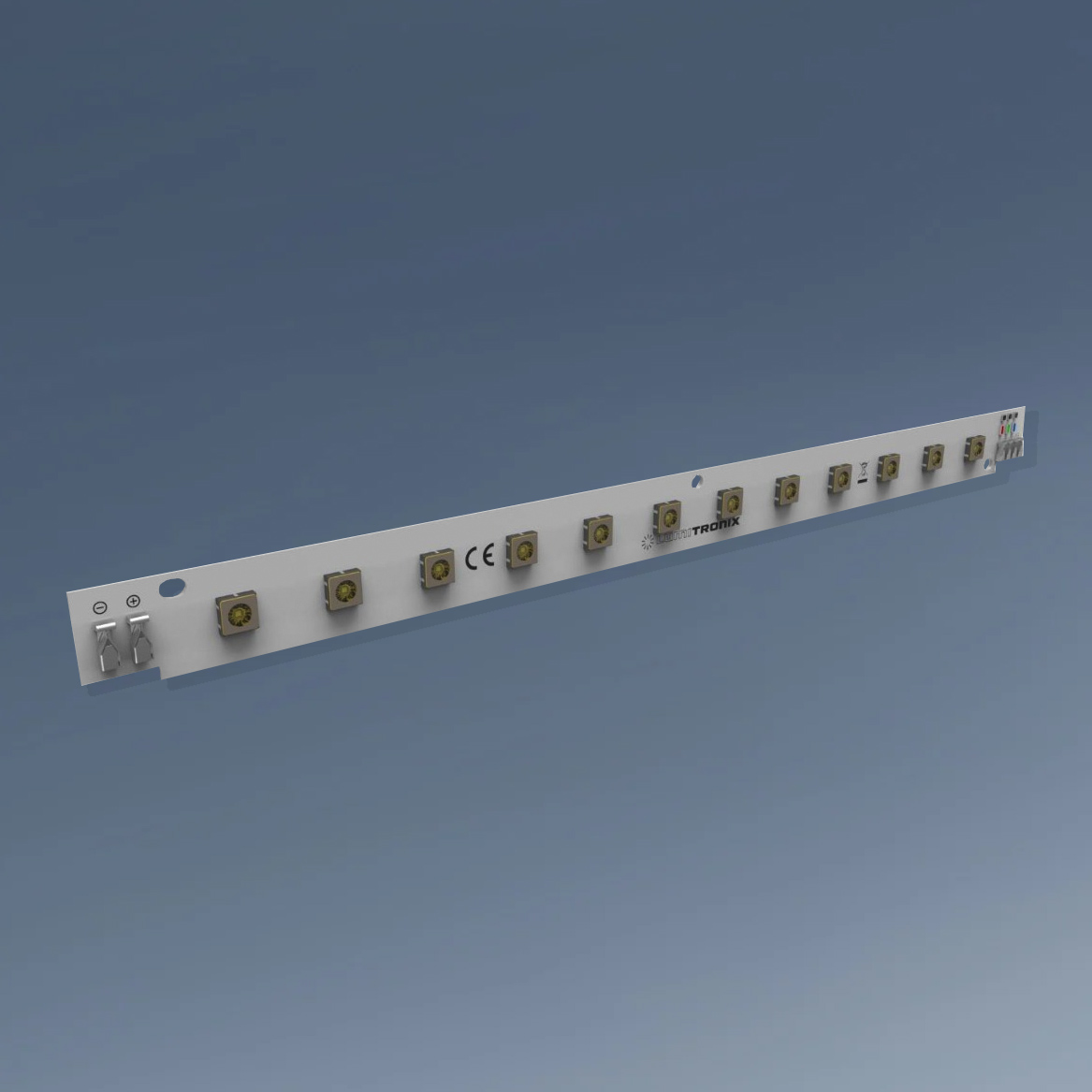

UV LED Module Technical Specifications:

LED module with 12 UV LEDs
Dimensions: 281x19.2x4 mm (LxWXH)
Seoul Visosys LEDs with
Radiant flux up to 264mW at 275nm
110 degree radiation angle without lens
3 signal LEDs (red, blue and green) can indicate whether the LED module is ready for operation, not usable or in operation
Compatible with the UVC rated lens for LEDIL, FN17294_VIOLET-12X1 for focus light on each LED (available separately)
Suitable for industrial sectors, such as lighting manufacturers and medical technology companies

The module can be operated with 400mA - 650 mA constant current LED driver at 22-24V.
Easy to operate with signal LEDs indicating readiness for operation, usability, and ongoing operation
Can be used with a Mean Well LCM driver for simple dimming via 0-10V DALI, wireless button or phone app
