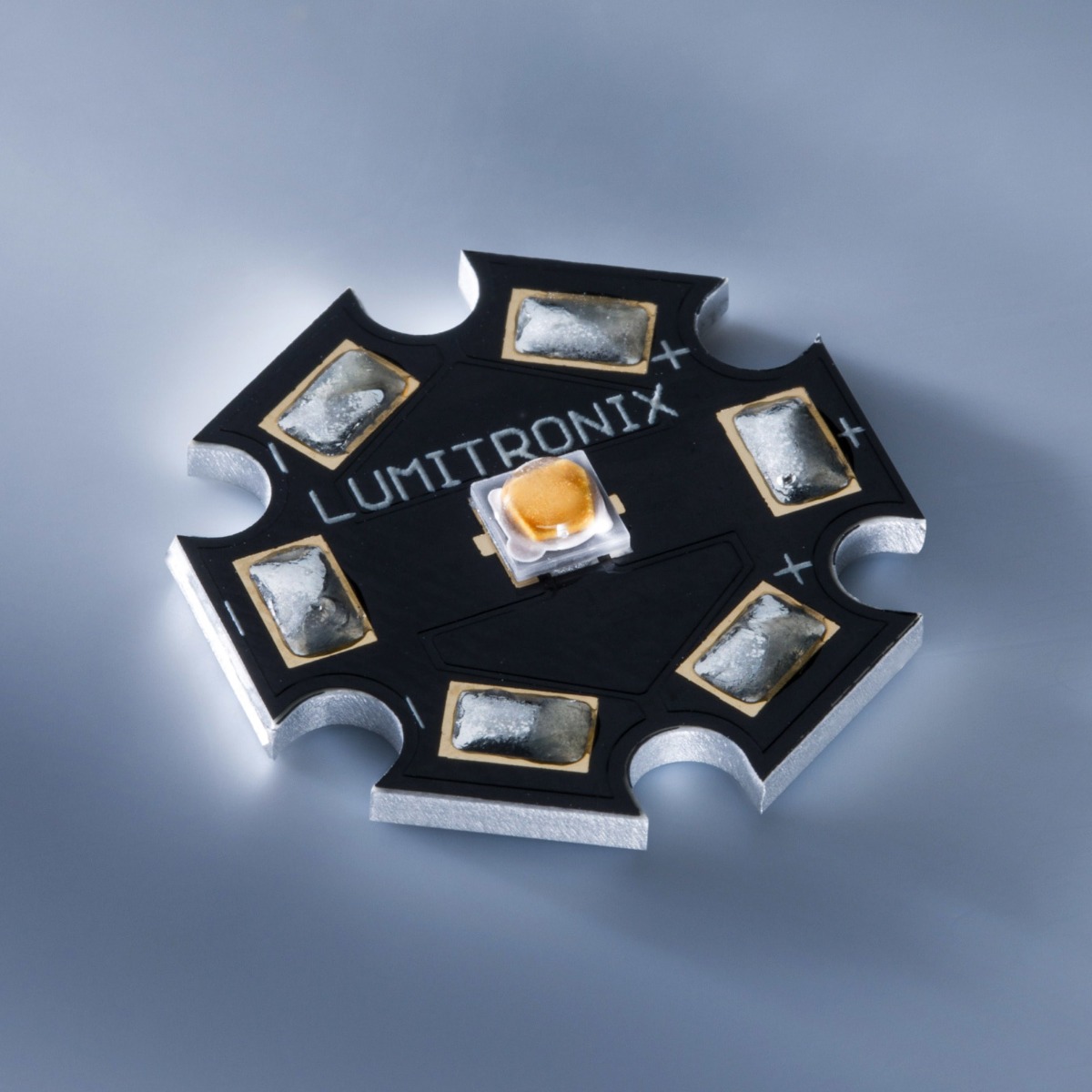

Build Your Own Star or Square PCB Nichia 219 LED Module Color High Power 1W 219 LED 350mA (up to 500lm)
Use this specialized form to order your custom PCB Nichia 219 LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own Star Or Square PCB Nichia 219 Color LED Module
- Nichia 219 LED Module is equipped with one Nichia 219 1W Color LED from Japan
- Color options: Amber, Royal Blue, Blue, Bluish Green, Green, Amber, Red
- Constant current design: 350-700mA
Build Your Own Star or Square PCB Nichia 219 LED Module Color High Power 1W 219 LED
The Nichia 219 Series are highly reliable high-power LEDs (3.5 x 3.5 mm / 3535 size) using a ceramic substrate.
With high output, long life, and high reliability, these LEDs are ideal for outdoor lighting in harsh environments such as streetlights. In addition to a wide range of output options, the 19 Series offers vivid discrete colors including blue and amber, suitable for spotlights and stage lighting which require both high output colored light.

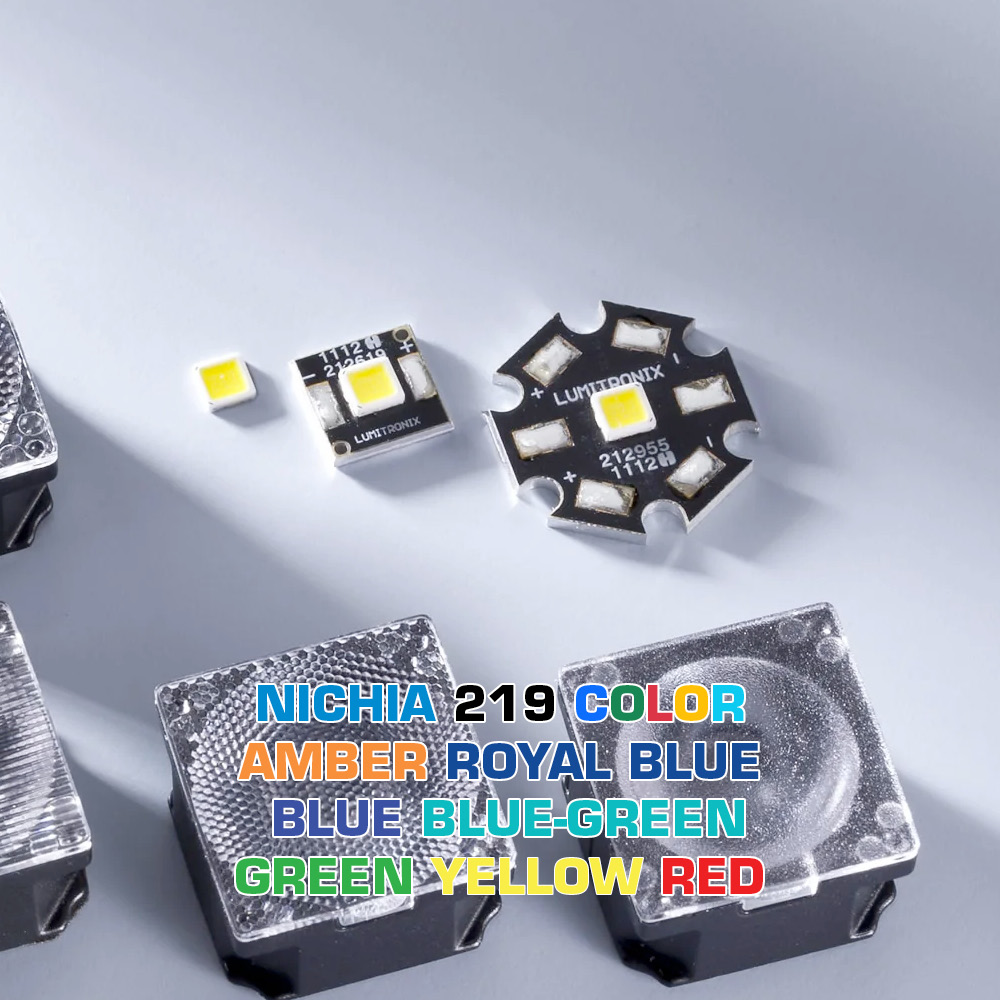

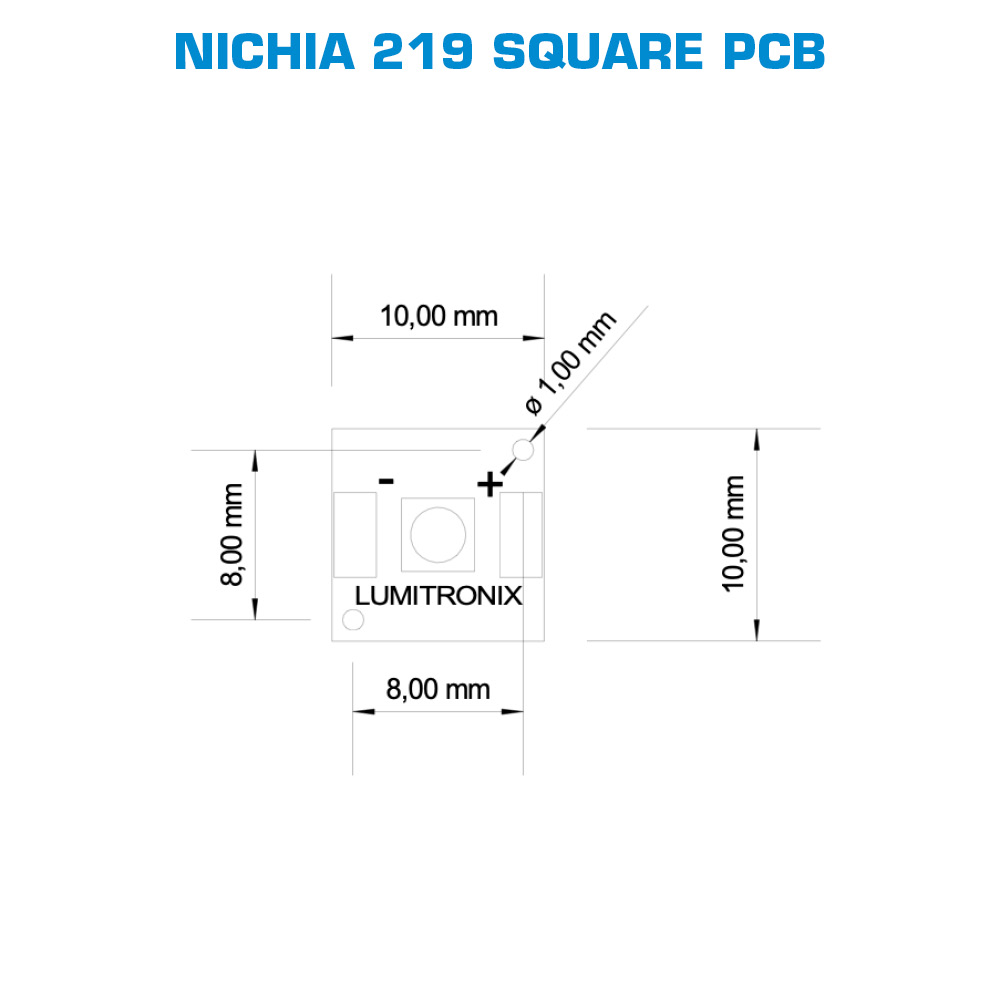

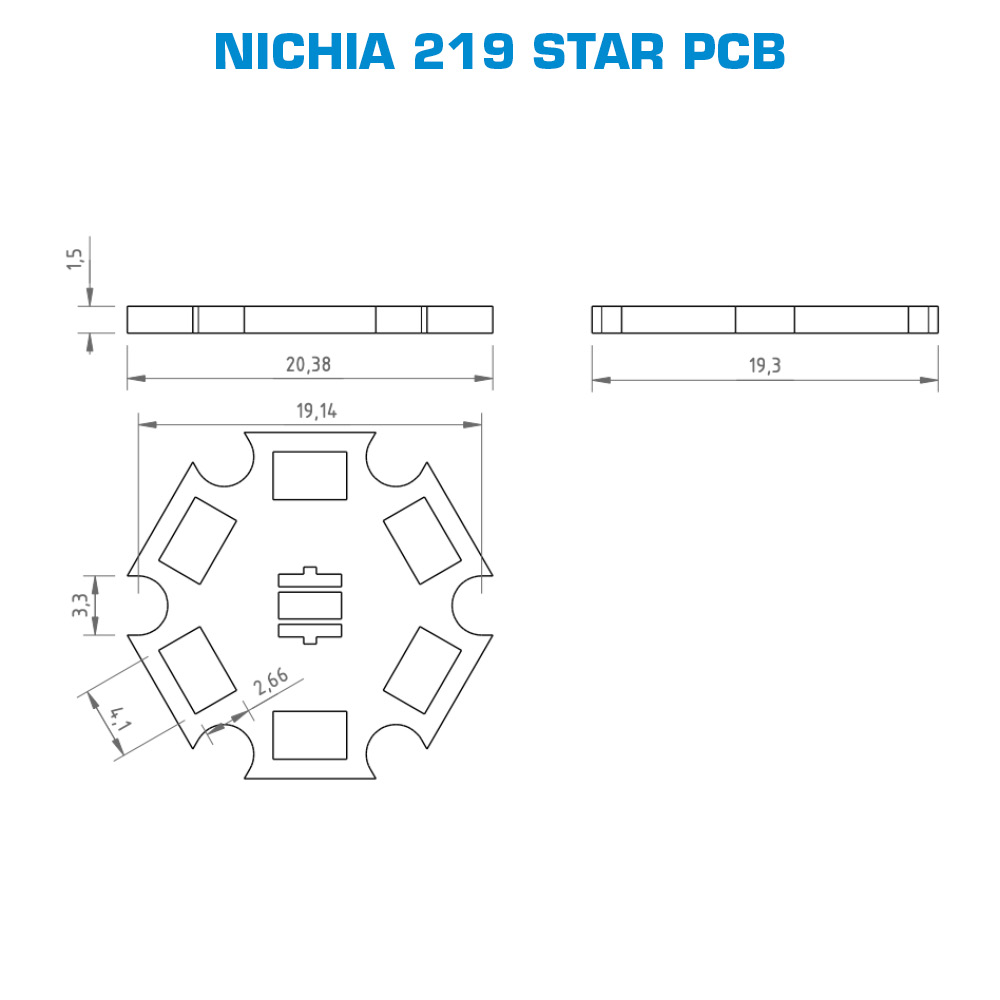

With our Build Your Own system you can order online the newest generation LEDs from the Nichia 219B color series (link here) on an Aluminum PCB for easy installation in spotlights, flashlights, streetlights and many other applications. The aluminum PCB can be 10x10mm Square or 21x19mm Star PCB (see image for exact dimensions).
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Build Your Own Star or Square PCB Nichia 219 LED Module Color High Power 1W 219 LED Order Process Explained & Technical details:
Build Your Own Star or Square PCB Nichia 219 LED Module, Made in Germany.
Step 1: Aluminum PCB size and Shape:
The Aluminum PCB shape and size of the Nichia 219 LED Module can be:

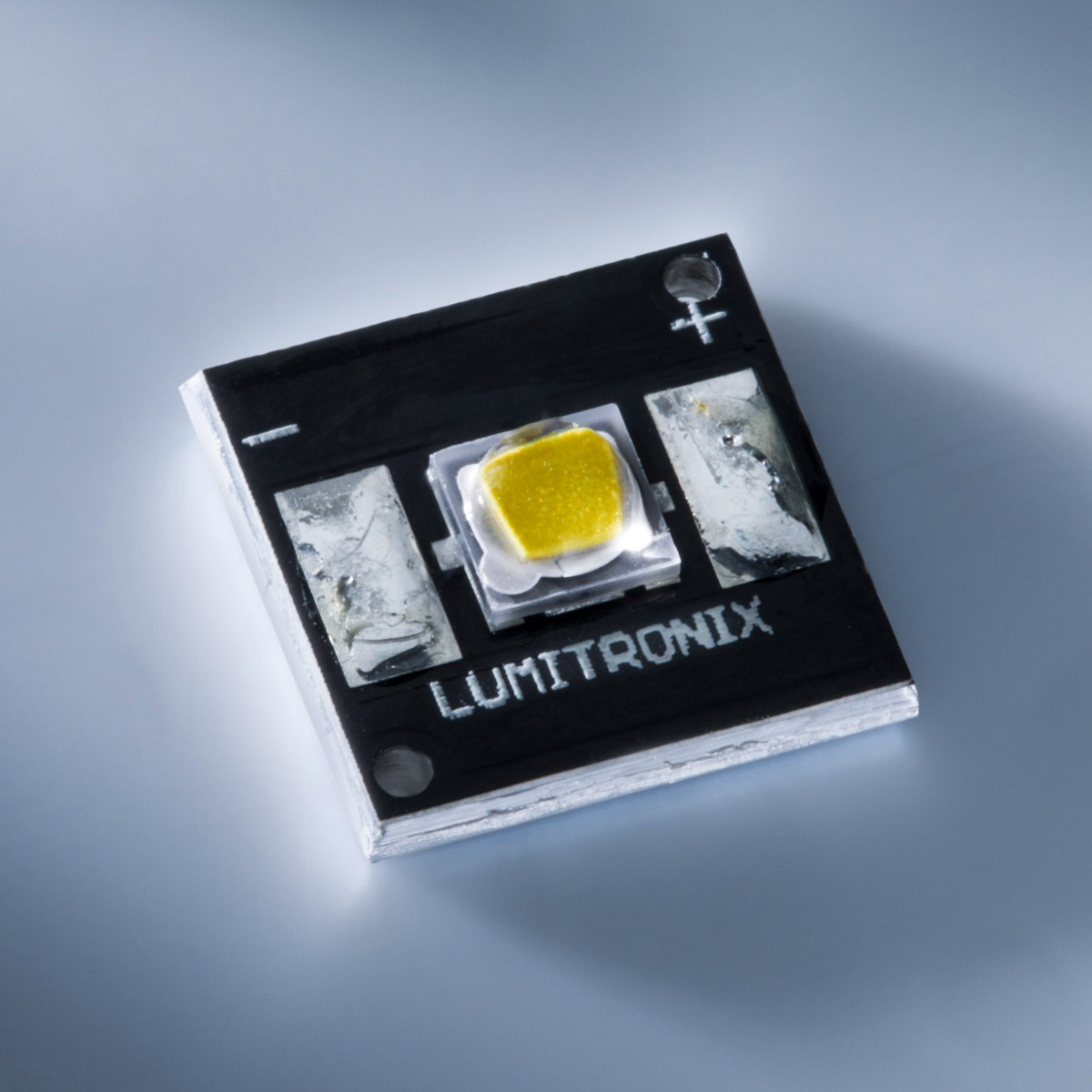

- Square PCB: 10x10mm
- Star PCB: 21x19mm
Step 2: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 3500 pcs of Nichia 219 LED module.
Step 3: Nichia 219 COLOR LED
The LED module will be built with the latest generation Nichia 219 COLOR LED series, the industry leading 3535 High-power LEDs.
Click here to see the current Nichia color LED line-up.
Nichia 219 Color LEDs include:
- ROYAL-BLUE: 450nm peak*

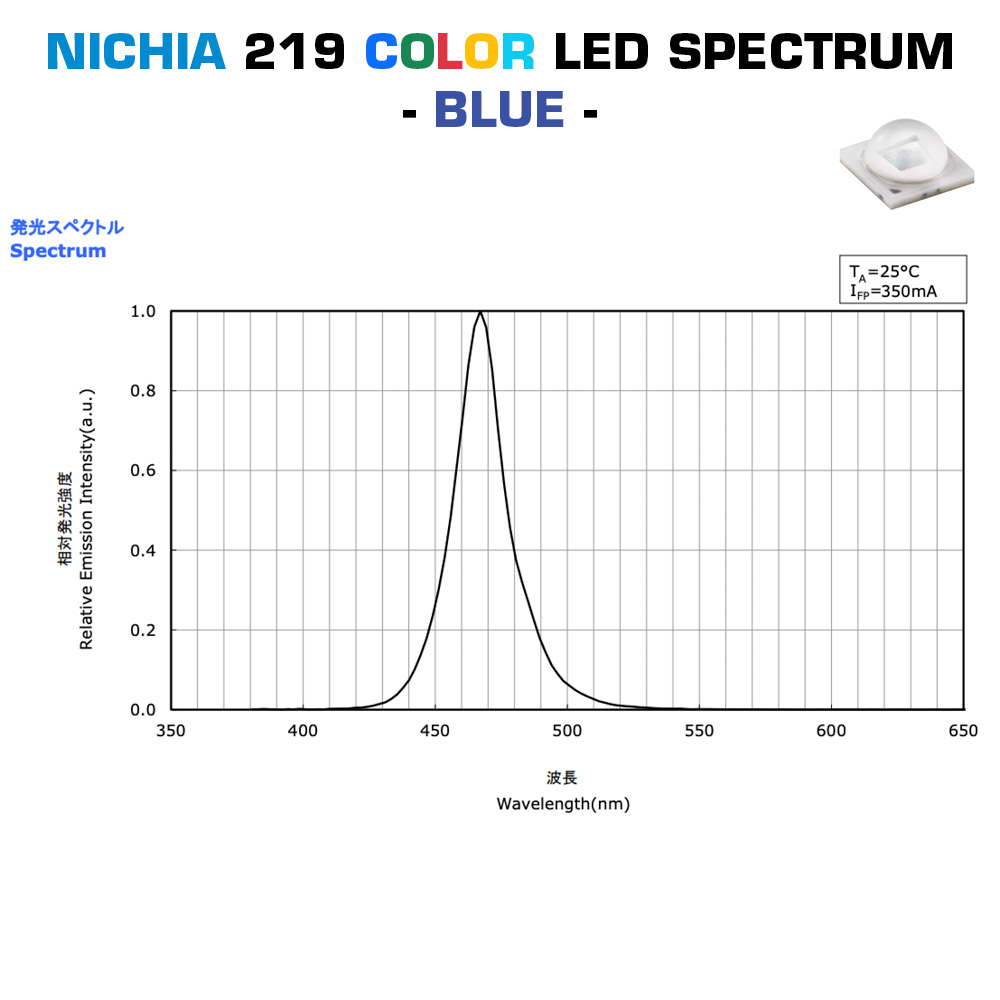

- BLUE: 465nm peak*

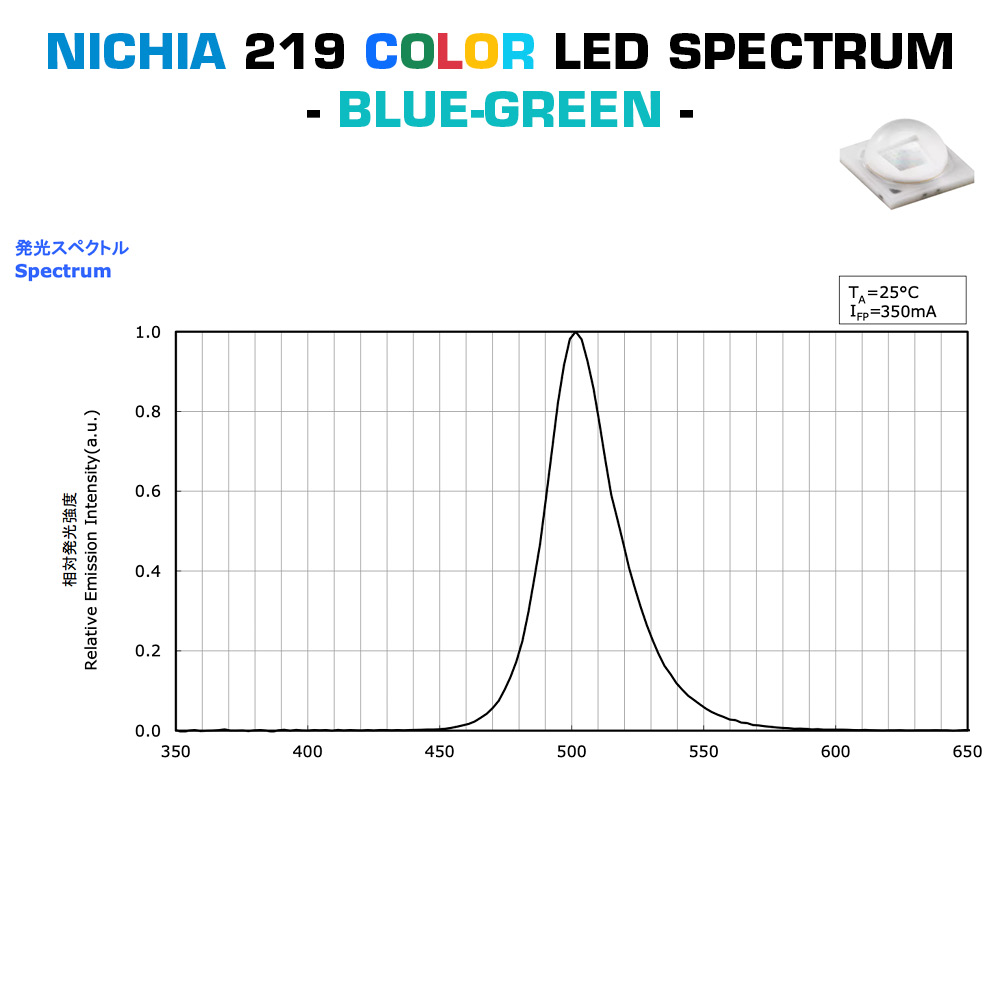

- BLUE-GREEN: 505nm peak*

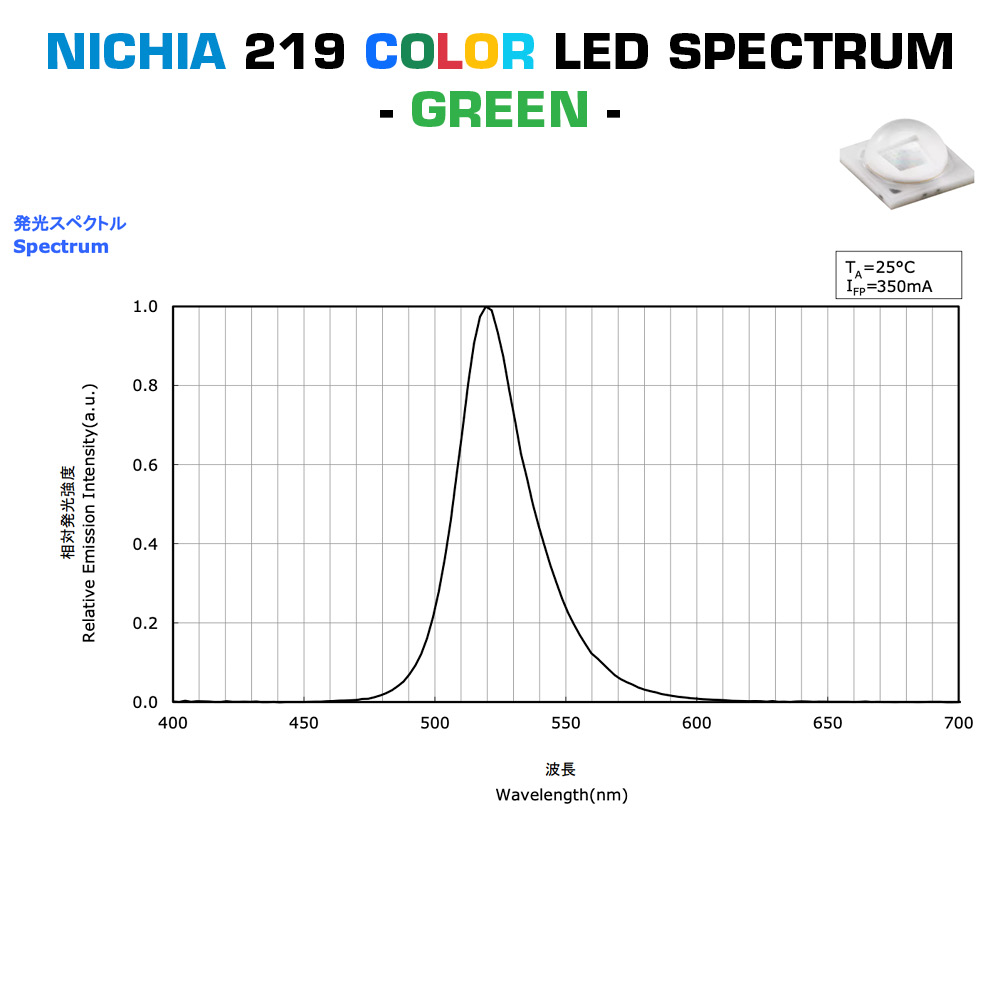

- GREEN: 515nm peak*

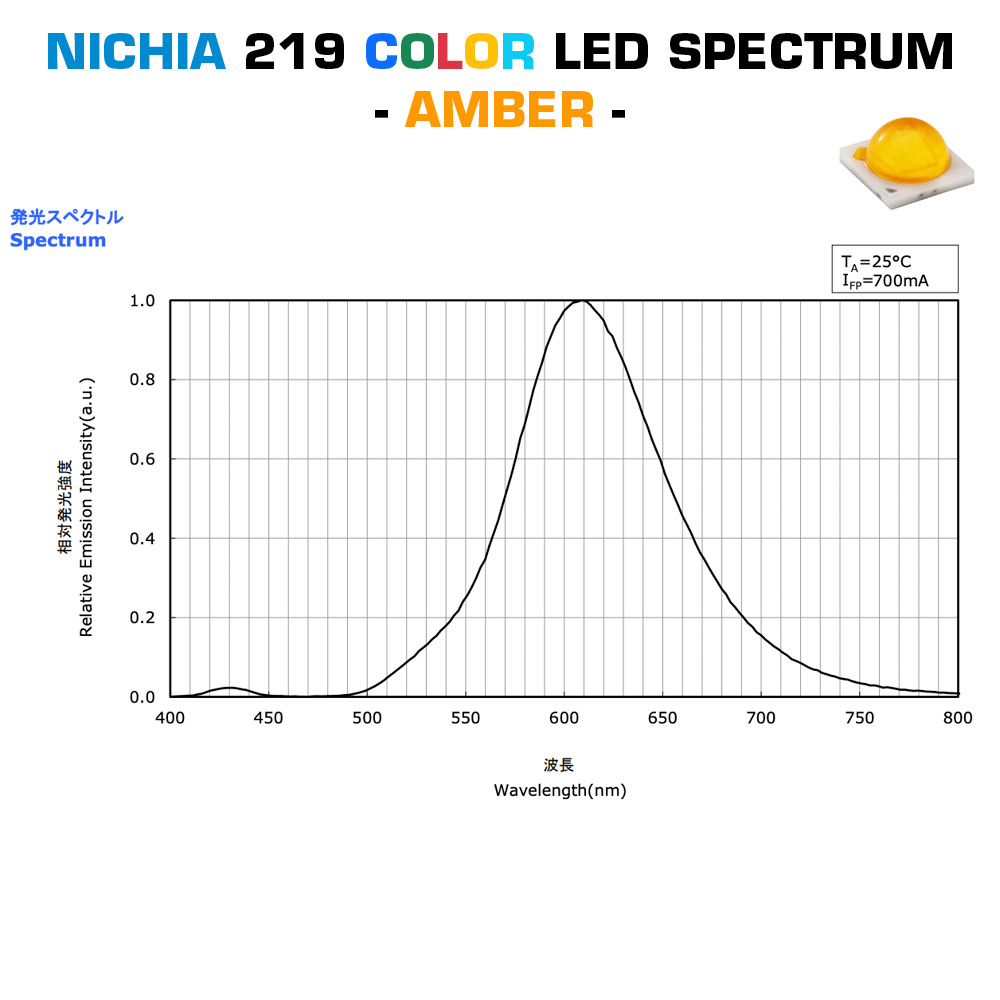

- AMBER: 620nm peak*

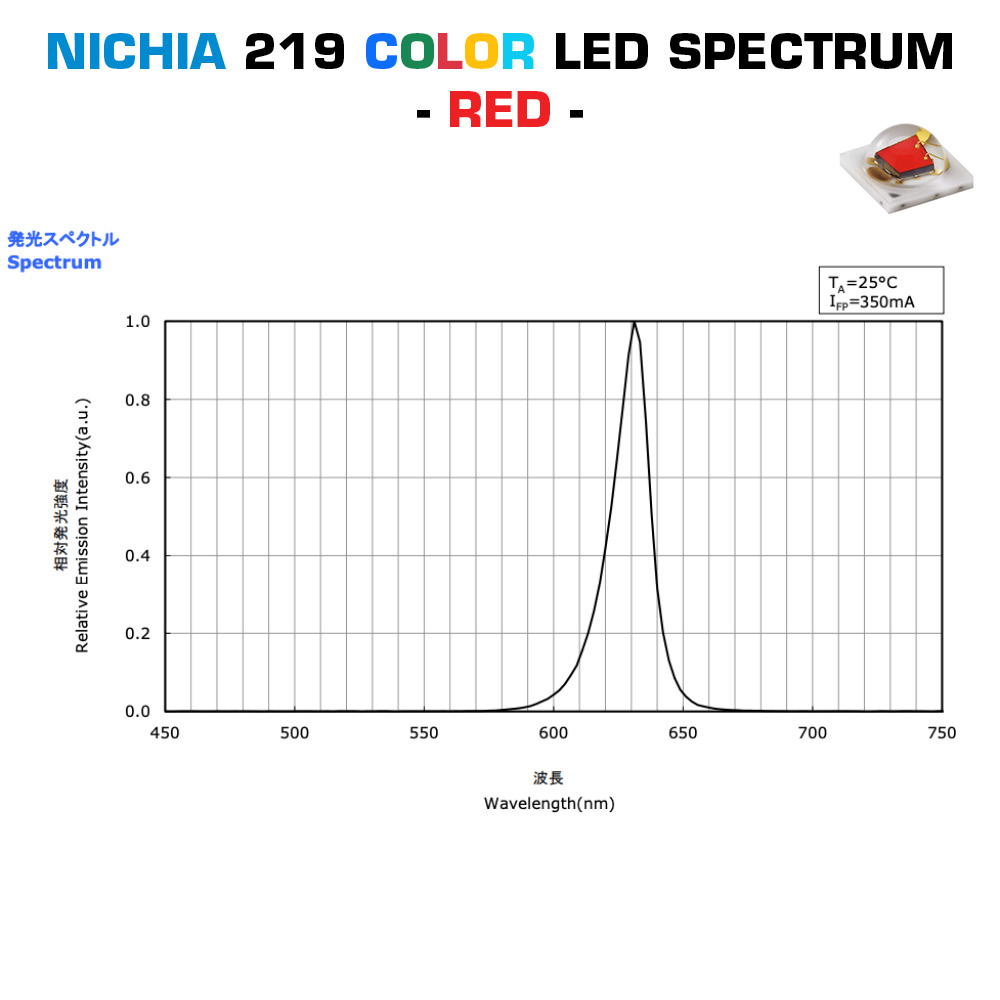

- RED: 635nm peak*

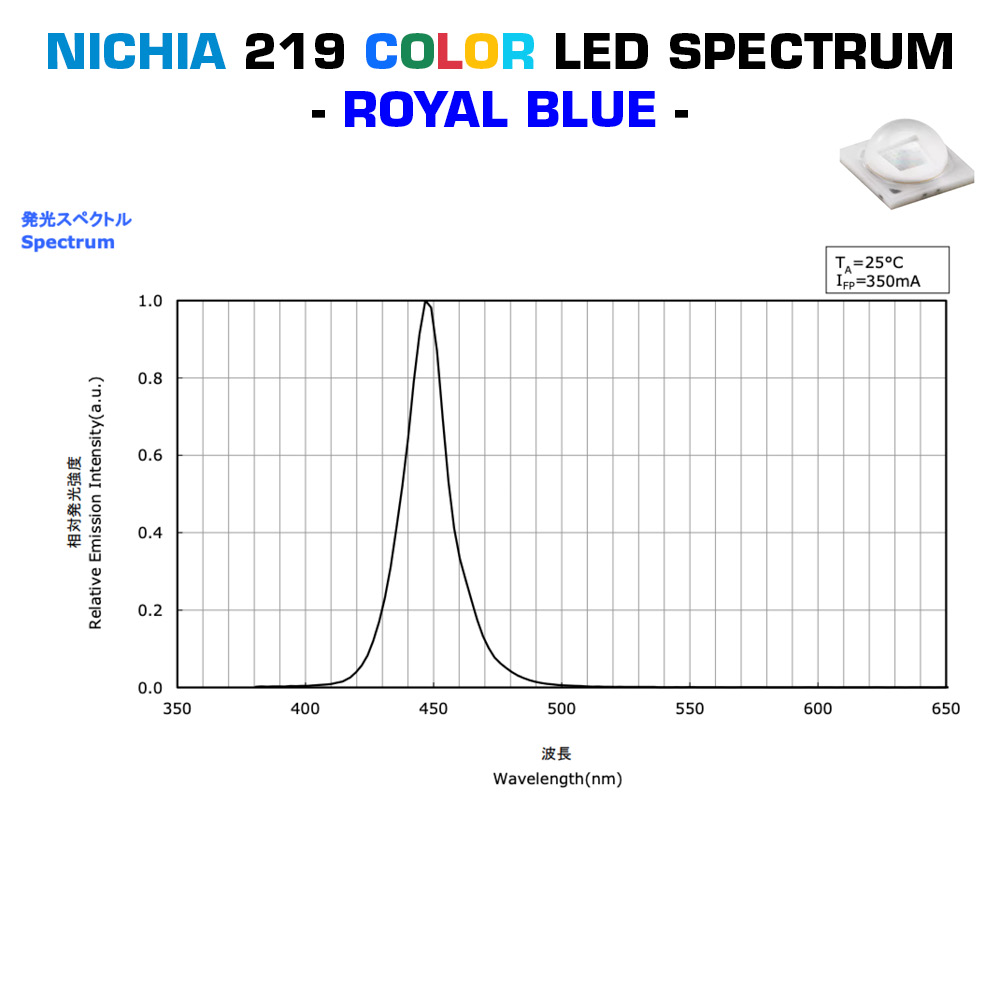

*See Nichia LED spectrum.
Datasheet will specify the Nichia LED part number.
Step 4: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.
Nichia 219 Color LED Technical Specifications:
- Nichia 219 LED is a Single Chip High-Power LED with Ceramic Housing
- 350mA typical current
- Aluminum rigid PCB
- Constant current design
- 100.000h lifetime
- Color options: Amber, Royal Blue, Blue, Bluish Green, Green, Amber, Red
- Rated output up to 2W
- Optimized for outdoor or industrial lighting
- Ideal for spotlights
- Dimmable
- 5-year warranty
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
| SKU | nichia219_pcb_c |
|---|---|
| Brand | Lumistrips |
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
