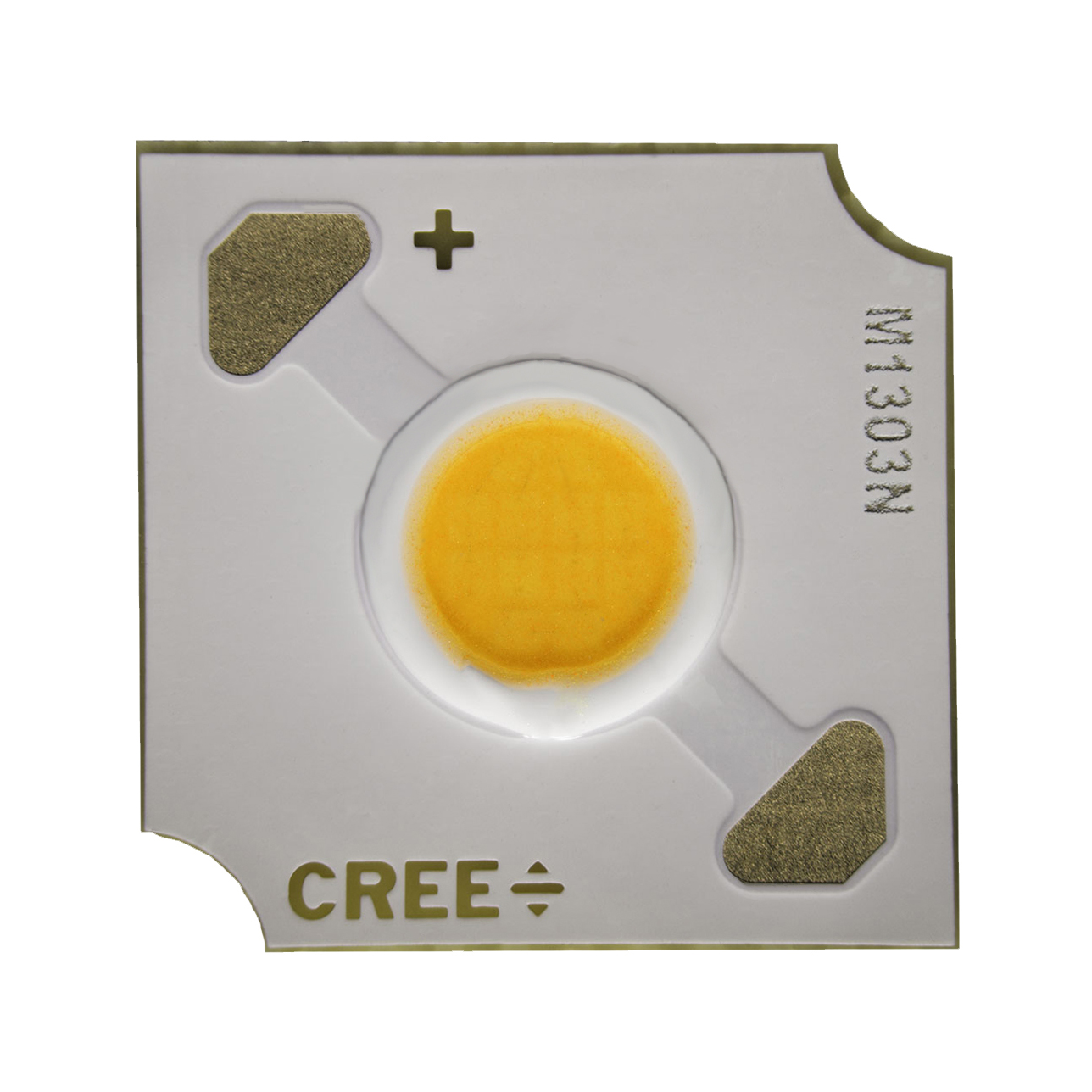

CREE CMA1303 LED CMA1303-0000-000C0B0A30E White Bin 30E 3000K 5-Step Ellipse Flux Bin 0A (Pack size: 100 LEDs)
€3.83
Stock Germany >10 pcs
SKU
CMA1303-30E-0A-C0B-00001
- Minimum order quantity & multiple: 100 pcs
- Chromaticity Bin: 30E
- CCT: 3000 K
- Sorting: 5-Step Ellipse
- Luminous Flux Bin: 0A
- CRI: 73
The Cree XLamp® High-Current LED Array family is optimized for best-in-class lumen output, efficacy and reliability at high drive currents. XLamp CMA LEDs share the same package design and LES sizes as Cree LED’s industry-leading CXA2 Standard Density LEDs, enabling lighting manufacturers to address a range of performance requirements for applications such as track, downlight and outdoor lighting using a single easy-to-use platform. XLamp High-Current LED Arrays are available in 2-step, 3-step and 5-step EasyWhite® bins.
Key Features:
- 4.5-mm optical source
- Mechanical and optical design consistent with CXA13 and
- CXB13 LEDs
- EasyWhite® 2-, 3- and 5-step binning
- Premium Color 2- and 3-step binning
- Standard & Premium Color LEDs available in 70, 80, 90 and 95
- CRI minimum options
- Forward voltage options: 9-V class, 18-V class & 36-V class
- 85 °C binning and characterization
- Maximum drive current: 1400 mA (9 V), 700 mA (18 V),
- 350 mA (36 V)
- 116° viewing angle, uniform chromaticity profile
- Top-side solder connections
- RoHS and REACH compliant
- UL® recognized component (E349212)
Technical Characteristics:
- Chromaticity Bin: 30E
- CCT: 3000 K
- Sorting: 5-Step Ellipse
- Luminous Flux Bin: 0A
- CRI: 73
- Forward Voltage: 9 V
- Forward Current: 700 mA
- Luminous Flux: 860 lm
| SKU | CMA1303-30E-0A-C0B-00001 |
|---|---|
| Factory Pack Quantity (Reel or Tray) | 100 |
| LEDs number per sales unit | 1 |
| LED Size | 13.35x13.35 mm |
| LED Family | CMA1303 |
| LED Installation Package | Chip on Board |
| Color Rendering Index | 73 |
| Color | Warm White |
| Color Temperature | 3000K |
| Color Temperature Sorting | 5-Step Ellipse |
| Chromaticity Bin (Approx. K) | 30E (3051K) |
| CIE 1931 CCx Average | 0.4338 |
| CIE 1931 CCy Average | 0.403 |
| Viewing Angle | 116° |
| Luminous Flux Typ (lm) | 860 |
| Luminous Flux Bin | 0A |
| Forward Current Typ | 700ma |
| Forward Voltage Typ (V) | 9.35 |
| LED Power (W) | 6.3 |
| Manufacturer Product Code | CMA1303-30E-0A-C0B-00001 |
| Brand | Cree LED |
| Manufacturer Part Number | CMA1303-0000-000C0B0A30E |
