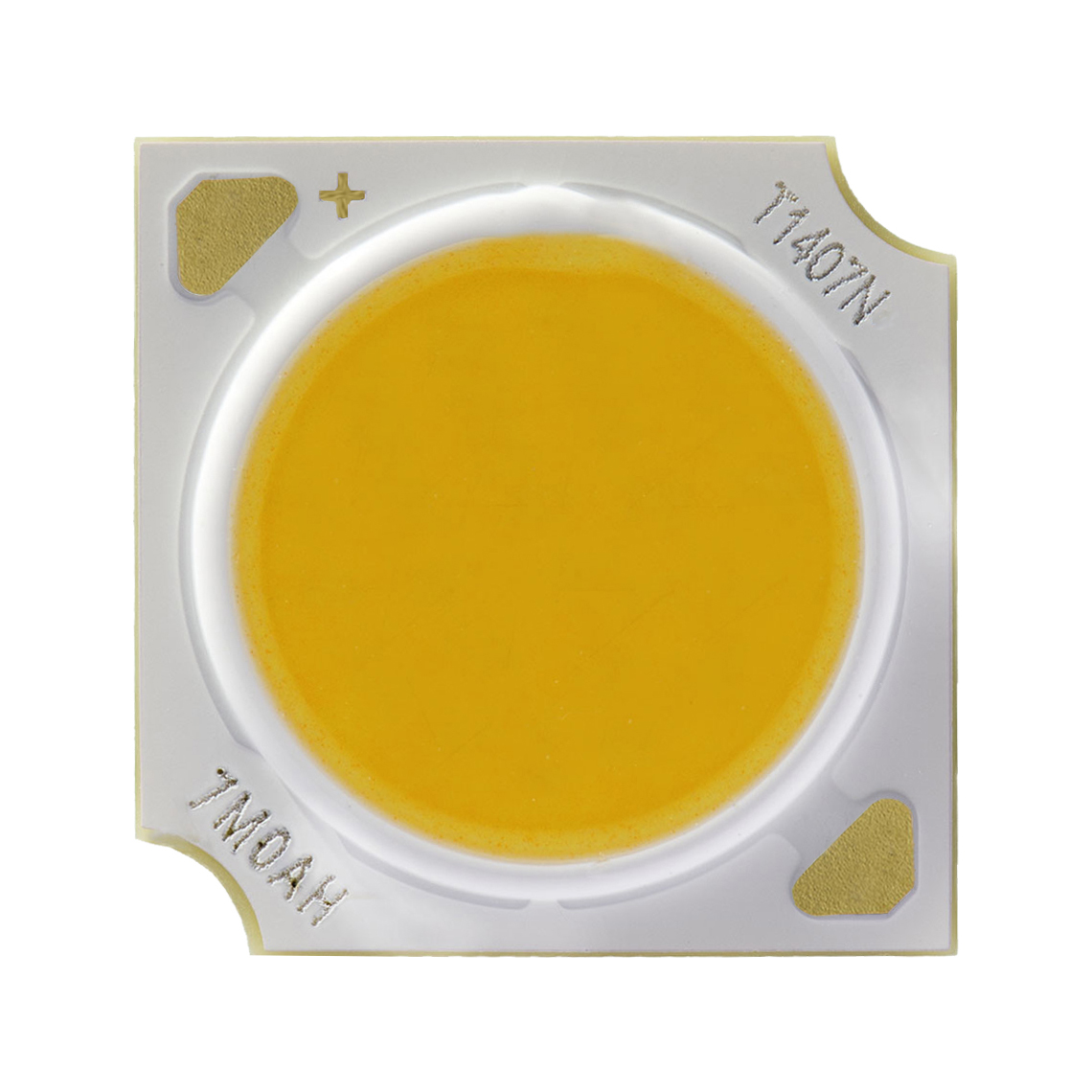

CREE CMT1407 LED CMT1407-0000-000N0H0A27G White Bin 27G 2700K 5-Step Ellipse Flux Bin 0A (Pack size: 100 LEDs)

Name: CREE CMT1407 LED CMT1407-0000-000N0H0A27G White Bin 27G 2700K 5-Step Ellipse Flux Bin 0A (Pack size: 100 LEDs)
Brand: Cree LED
SKU: CMT1407-27G-0A-N0H-00001
Price: 3.68 EUR
Availability: InStock

€3.68

Stock Germany >500 pcs

SKU

CMT1407-27G-0A-N0H-00001

Be the first to review this product

Minimum order quantity & multiple: 100 pcs
Chromaticity Bin: 27G
CCT: 2700 K
Sorting: 5-Step Ellipse
Luminous Flux Bin: 0A
CRI: 80

Cree LED offers one of the industry’s most extensive portfolios of application-optimized LED chips and components, leading in both performance and reliability. Cree LED delivers best-in-class technology and breakthrough solutions for high-power and mid-power general lighting, specialty lighting and video screens. With over 30 years of experience, Cree LED develops products backed by expert design assistance, superior sales support and industry-best global customer service.

Ledrise.eu is a Cree LED branding partner. We order the LEDs directly from Cree and ship from Germany to you.

Details

Technical Data

Reviews

Product Datasheets & Files

The Cree XLamp® High-Current LED Array family is optimized for best-in-class lumen output, efficacy and reliability at high drive currents. XLamp CMT LEDs deliver performance in industry-compatible packages and LESes, enabling lighting manufacturers to upgrade their designs for applications such as track, downlight and outdoor lighting. XLamp High-Current LED Arrays are available in 2-step, 3-step and 5-step EasyWhite® bins.

Key Features:

9.8-mm optical source
Available in 70-, 80- and 90- and
95-minimum CRI options
EasyWhite® 2-, 3- and 5-step binning
Premium Color 2- and 3-step binning
Forward voltage option: 36-V class
85 °C binning and characterization
Maximum drive current: 500 mA
115° viewing angle, uniform
chromaticity profile
Top-side solder connections
RoHS and REACH compliant
UL® recognized component (E349212)

Technical Characteristics:

Chromaticity Bin: 27G
CCT: 2700 K
Sorting: 5-Step Ellipse
Luminous Flux Bin: 0A
CRI: 80
Forward Voltage: 34.2 V
Forward Current: 200 mA
Luminous Flux: 945 lm

Technical Data
SKU	CMT1407-27G-0A-N0H-00001
Factory Pack Quantity (Reel or Tray)	100
LEDs number per sales unit	1
LED Size	13.5x13.5 mm
LED Family	CMT1407
LED Installation Package	Chip on Board
Color Rendering Index	80
Color	Warm White
Color Temperature	2700K
Color Temperature Sorting	5-Step Ellipse
Chromaticity Bin (Approx. K)	27G (2723K)
CIE 1931 CCx Average	0.4577
CIE 1931 CCy Average	0.4099
Viewing Angle	115°
Luminous Flux Typ (lm)	945
Luminous Flux Bin	0A
Forward Current Typ	200ma
Forward Voltage Typ (V)	34.2
LED Power (W)	6.9
Manufacturer Product Code	CMT1407-27G-0A-N0H-00001
Brand	Cree LED
Manufacturer Part Number	CMT1407-0000-000N0H0A27G
