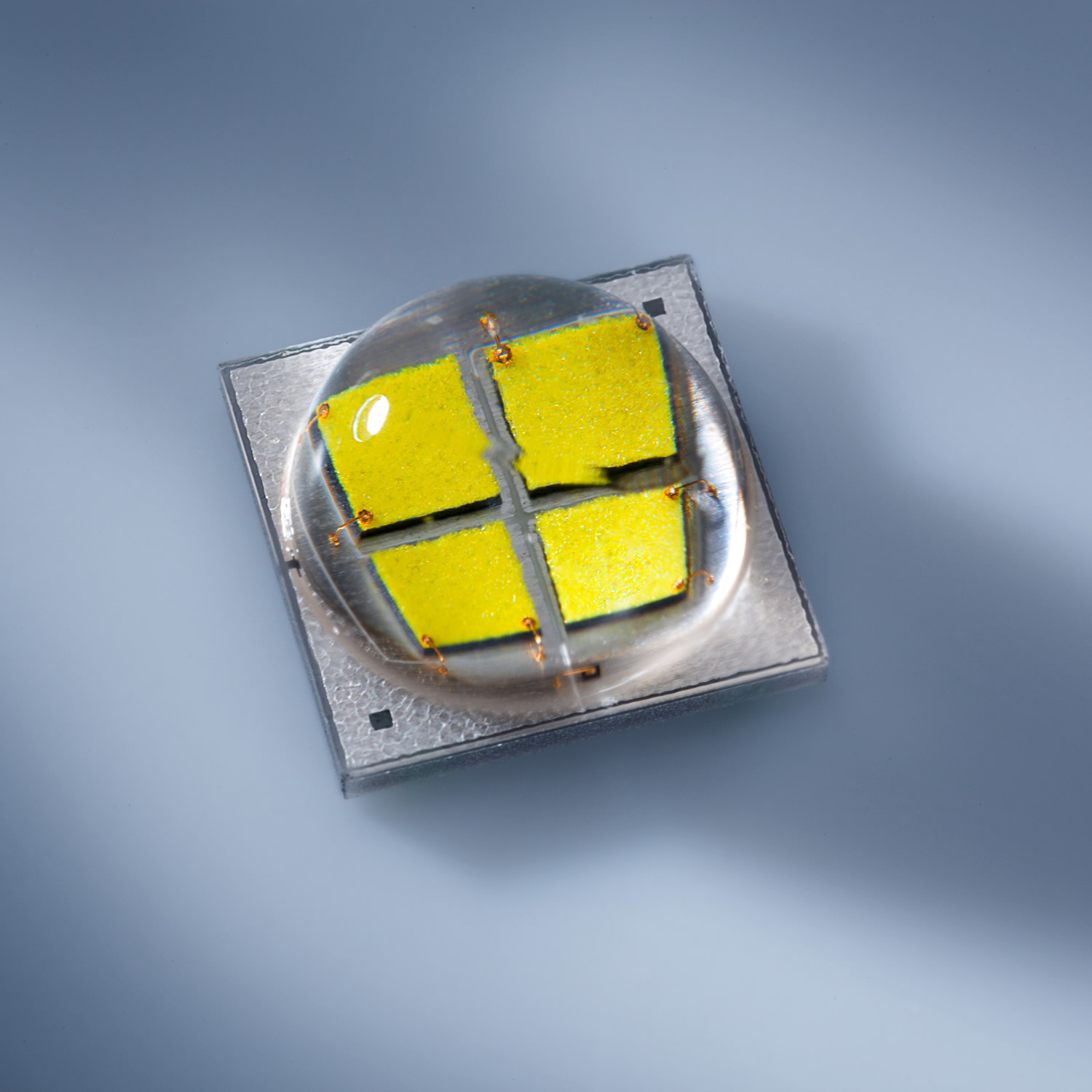

CREE MK-R High Power White LED 1448lm 2700K MKRAWT-00-0000-0D0HG227H Emitter
As early as in the year 2011 Cree had brought an LED to market that, under laboratory conditions, for the first time exceeded the 200lm/W benchmark. Now the MK-R-LED from the XLamp series allows this result even with 1W and 25°C. This was made possible thanks to the innovative SC3 Technology developed by Cree, which is already integrated in all new Cree XLamp LEDs. The SC3 platform includes a silicon carbide technology as well as several amplifications in the areas LED Chip Architecture and Phosphor Technology. In systems with only one LED the MK-R provides one of the best cross-unit colour consistencies of the entire LED industry. In systems with several LEDs the MK-R allows users the installation of only a few LEDs whilst maintaining the same luminous flux and colour consistency. The XLamp MK-R is designed for directed illumination applications and constitutes an expansion for applications requiring a high light yield, compact light source and wide range of colour temperature.
Features- MKRAWT-00-0000-0D0HG227H
- reflow - JEDEC J-STD-020C
- electrically neutral heat dissipation
- maximum drive current: 1250 mA
- maximum junction temperature: 150 °C
- classified at 85 °C
- compatible with JEDEC J-STD-020C
- electrically neutral heat dissipation
| SKU | 68661 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 5x5 mm |
| LED Family | Cree MK-R |
| LED Installation Package | Emitter |
| Color Rendering Index | 80 |
| Color | Warm White |
| Color Temperature | 2700K |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 495 |
| Forward Current Typ | 350ma |
| Forward Voltage Typ (V) | 11.3 |
| LED Power (W) | 3.96 |
| Forward Current Max | 1250mA |
| Power Max. (W) | 15.3 |
| Product lifetime (h) | 50000 |
| Efficacy (lm per W) | 125 |
| Manufacturer Product Code | MKRAWT-00-0000-0D0HG227H |
| Brand | Cree |
| Availability beyond shown stock: | NO |
