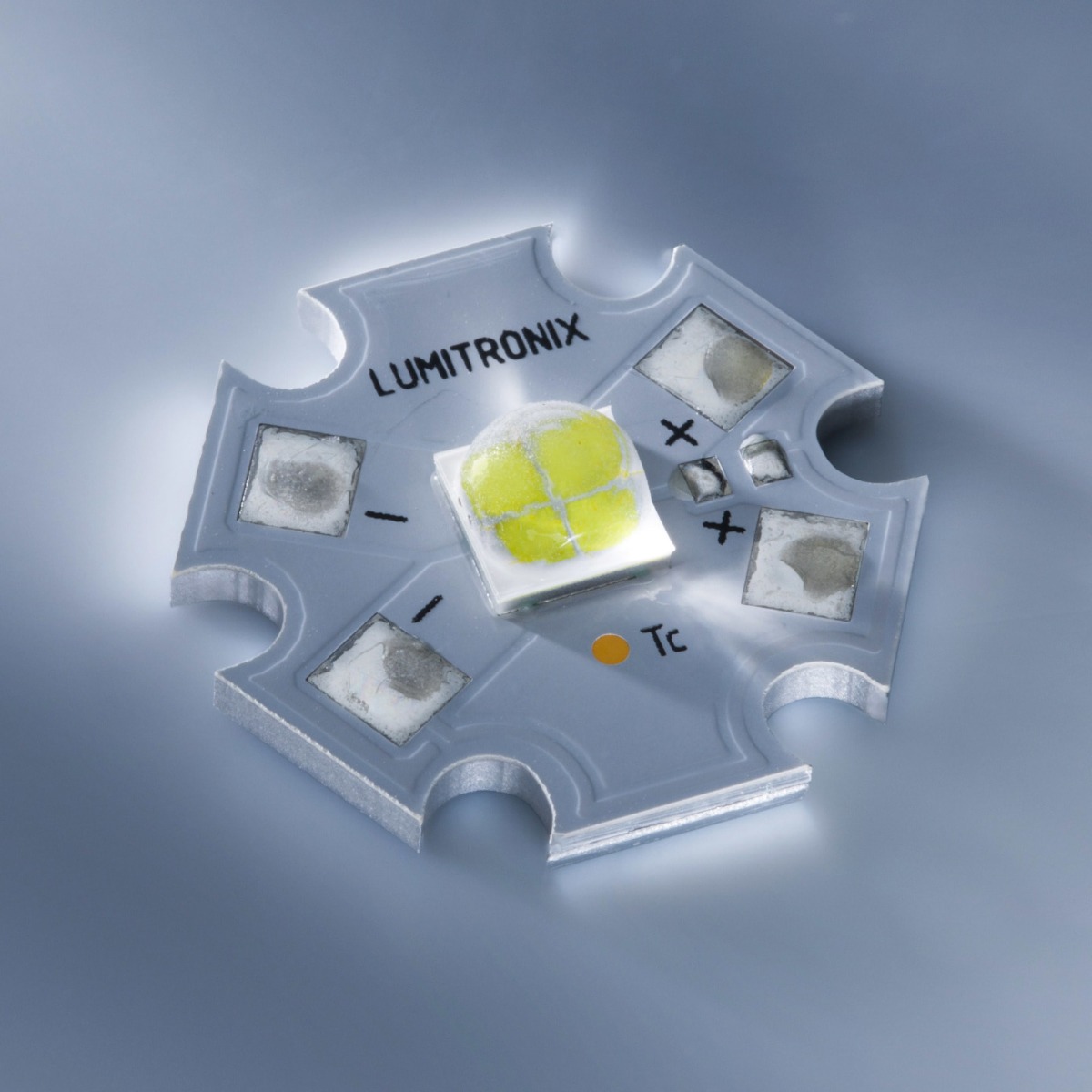

With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron. The PCB LED is great for small projects, rapid prototyping or custom builds.

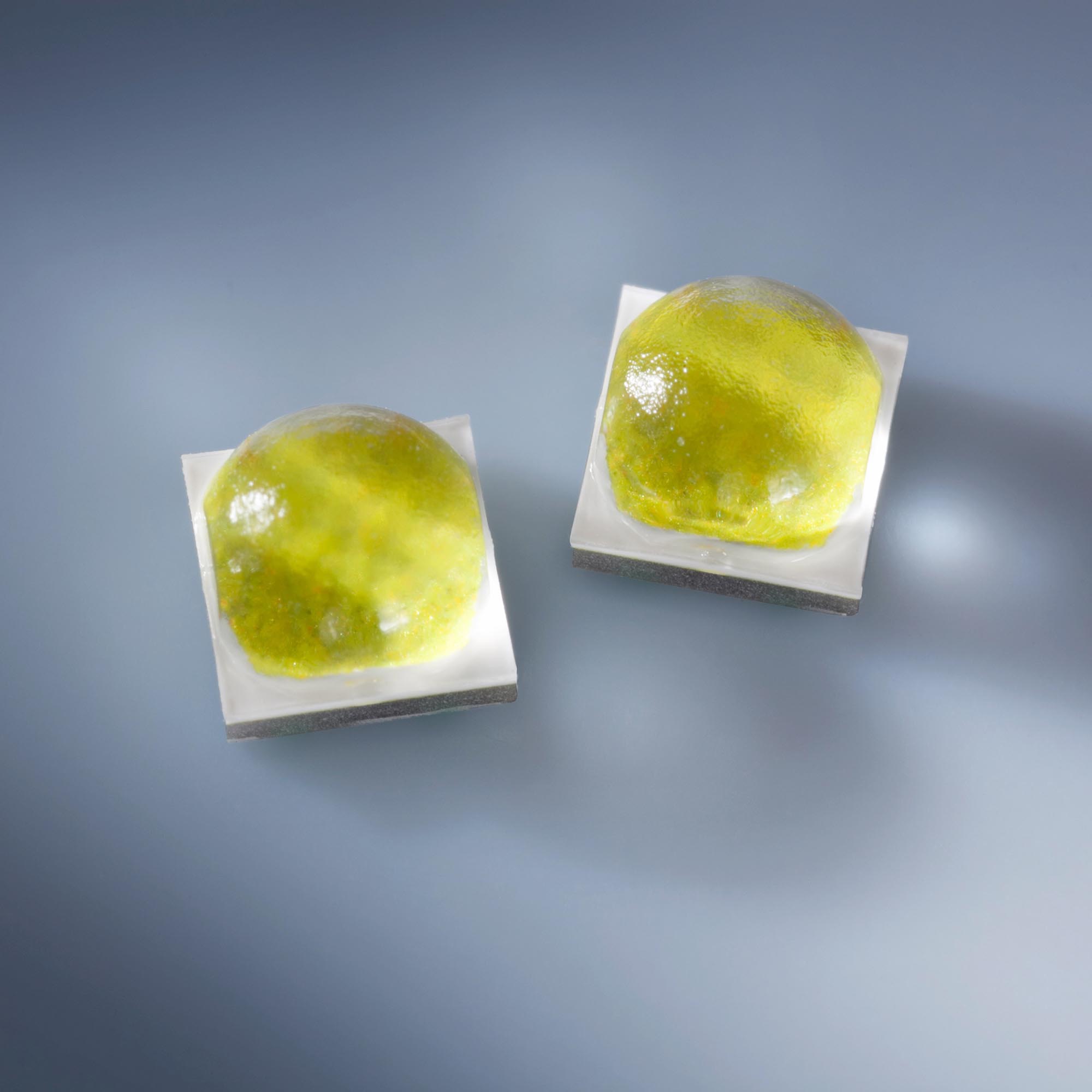

The Cree XHP35 from the XLamp series combines the power of Cree Extreme High Power LEDs with the XP footprint. With the new XLamp XHP35, Cree achieves 50 per cent more luminous efficacy than its previously most powerful Single Die High Power LED. Therefore, it creates a new standard for the 3.5x3.5mm footprints. This improvement is based on the SC5 Technology Platform from Cree. The leading silicon carbide technology provides significant improvements for the chip architecture as well as an advanced system for light conversion for the best thermal and optical performance. Features
SKU | 68488 |
---|---|
Weight brut (g) | 1.000000 |
LED Size | 3.45x3.45 mm |
LED Family | Cree XPH |
LED Application | Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light |
LED Installation Package | Star PCB |
Color | Cold White |
Color Temperature | 6500K |
Viewing Angle | 125° |
Luminous Flux Typ (lm) | 717 |
Forward Current Typ | 350ma |
Forward Voltage Typ (V) | 11.3 |
Power (W) | 3.96 |
Product lifetime (h) | 60000 |
Efficacy (lm per W) | 182 |
Manufacturer Product Code | 68488 |
Brand | Cree |
Availability beyond shown stock: | NO |
