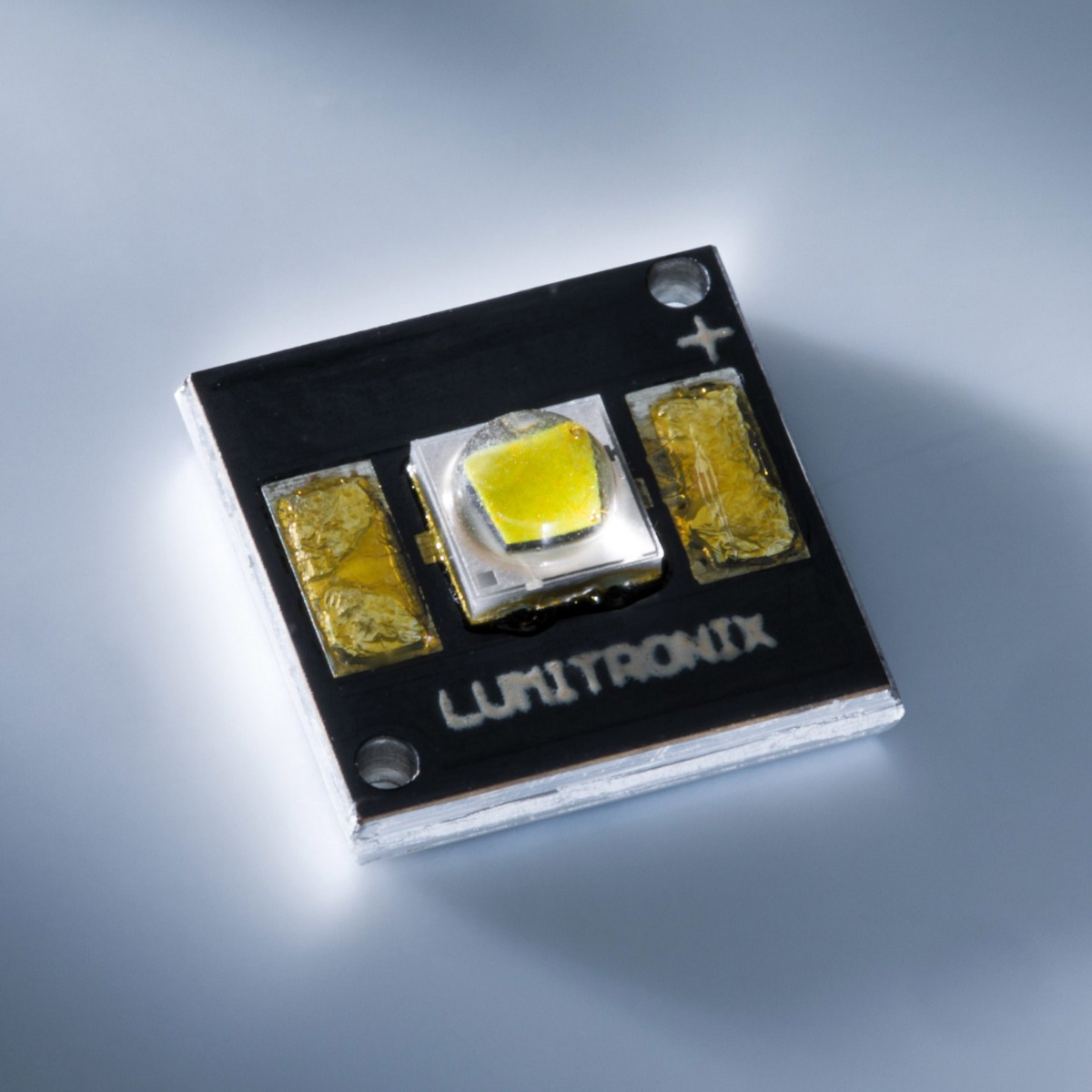

Cree XP-G2 S2 LED 488lm at 1500mA 6200K 10x10 SQUARE PCB XPGBWT-L1-0000-00J51

Cree XP-G2 S2 LED 488lm at 1500mA 6200K 10x10 SQUARE PCB XPGBWT-L1-0000-00J51

Cree XP-G2 S2 LED 488lm at 1500mA 6200K 10x10 SQUARE PCB XPGBWT-L1-0000-00J51
Cree XP-G2 S2 LED 488lm at 1500mA 6200K 10x10 SQUARE PCB XPGBWT-L1-0000-00J51 Cree XP-G2 S2 LED 488lm at 1500mA 6200K 10x10 SQUARE PCB XPGBWT-L1-0000-00J51

Cree XP-G2 S2 LED 488lm at 1500mA 6200K 10x10 SQUARE PCB XPGBWT-L1-0000-00J51

Overall Rating:
100 % of 100
€2.83
Stock Germany >500 pcs
SKU
68470
Blog Posts (9)

With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

New Version of the Popular XP-G Series by Cree. The new XP-G2 series by Cree convinces by 20% more efficiency and up to 57% less system costs. The new series is optically compatible with the original XP-G series and thus can easily be installed into existing designs. The centrally arranged chip as well as the square form guarantee homogeneous heat dissipation and easy handling. Thanks to its small size, high luminous power and the very good efficiency it is perfectly suited as a light source for applications such as LED Retrofit lamps and spots.

Features
  • loadable up to 1500mA
  • SC³ platform
  • 85° C binning
  • improved efficiency
  • capable of reflow / can be equipped with SMD
  • durable
  • outstanding price / lumen ratio
  • Dimensions (LxW): 3.45x3.45mm
  • Luminous flux values in our short form datasheet are maximum values at 25°C junction temperature
Application
  • interior and exterior illumination
Application areas
  • LED Retrofit lamps and spots
  • LED luminaries and pocket lamps
Technical Data
SKU 68470
Weight brut (g) 1.000000
LED Size 3.45x3.45 mm
LED Family Cree XP-G2
LED Application Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light
LED Installation Package 1x1 cm PCB
Color Cold White
Color Temperature 6200K
Color Rendering Index 70
Viewing Angle 115°
Luminous Flux Typ (lm) 148
Forward Current Typ 350ma
Forward Voltage Typ (V) 2.8
Power (W) 0.98
Forward Current Max 1500mA
Power Max. (W) 4.8
Product lifetime (h) 60000
Efficacy (lm per W) 152
Manufacturer Product Code 68470
Brand Cree
Availability beyond shown stock: YES
