With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron. The PCB LED is great for small projects, rapid prototyping or custom builds.

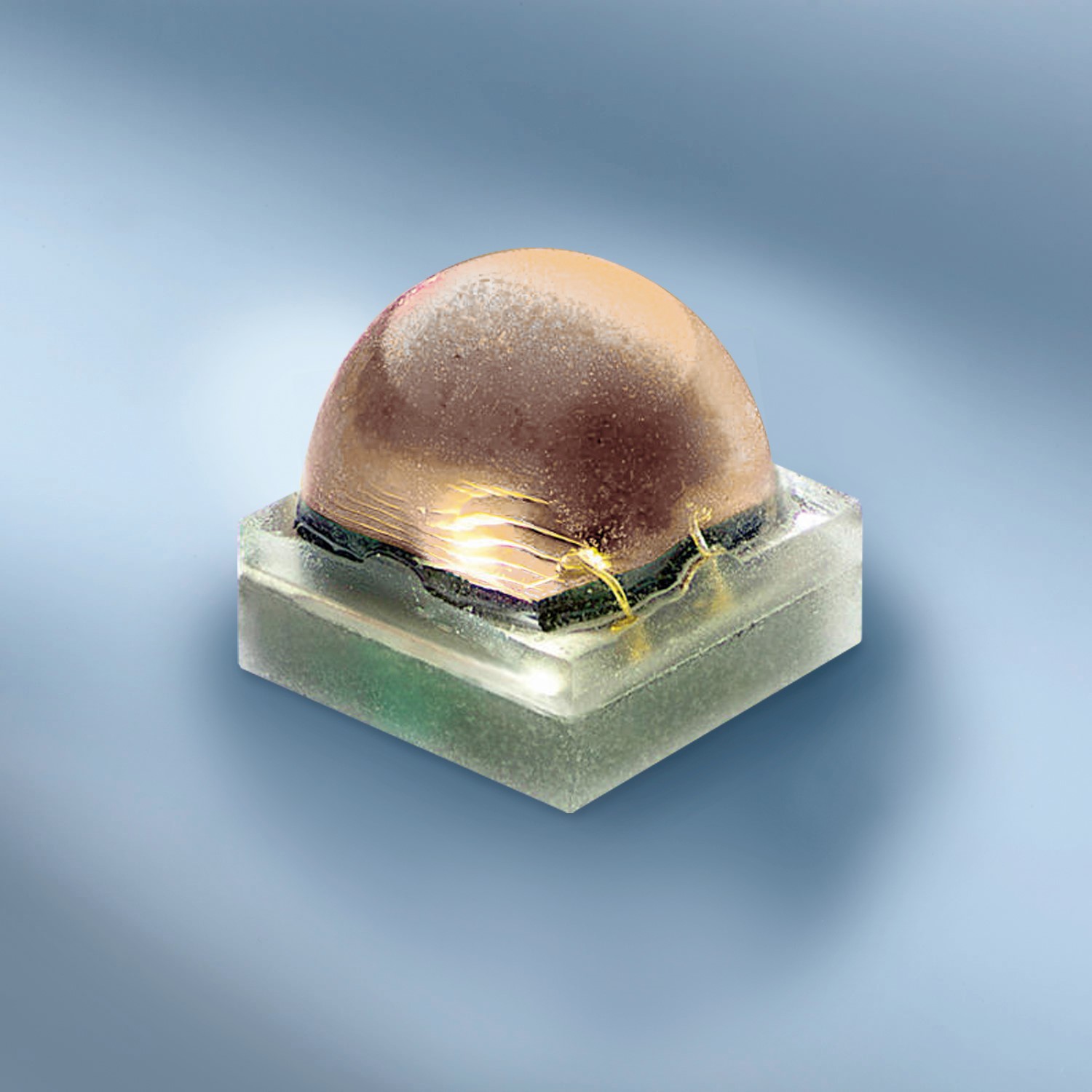

The XLamp XQ-E LED series allows illuminant manufacturers to significantly reduce the size and the total cost of their LED luminaires, without having to affect the luminous efficacy, efficiency or reliability. The XQ-E offers the excellent performance of the XP-E2 in an approx. 78% smaller construction. The XQ-E opens up new design possibilities in a total series of lighting applications. The combination of optical symmetry, consistent design on all configurations and the small size of the XQ-E LED ensure an improved colour mix and optical control.
Features| SKU | 68335 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 1.6x1.6 mm |
| LED Family | Cree XQ-E |
| LED Installation Package | 1x1 cm PCB |
| Color | Warm White |
| Color Temperature | 2700K |
| Color Rendering Index | 80 |
| Viewing Angle | 110° |
| Luminous Flux Typ (lm) | 100 |
| Forward Current Typ | 350ma |
| Forward Voltage Typ (V) | 2.9 |
| Power (W) | 1.02 |
| Forward Current Max | 1000mA |
| Power Max. (W) | 3.2 |
| Efficacy (lm per W) | 99 |
| Manufacturer Product Code | 68335 |
| Brand | Cree |
| Availability beyond shown stock: | YES |
