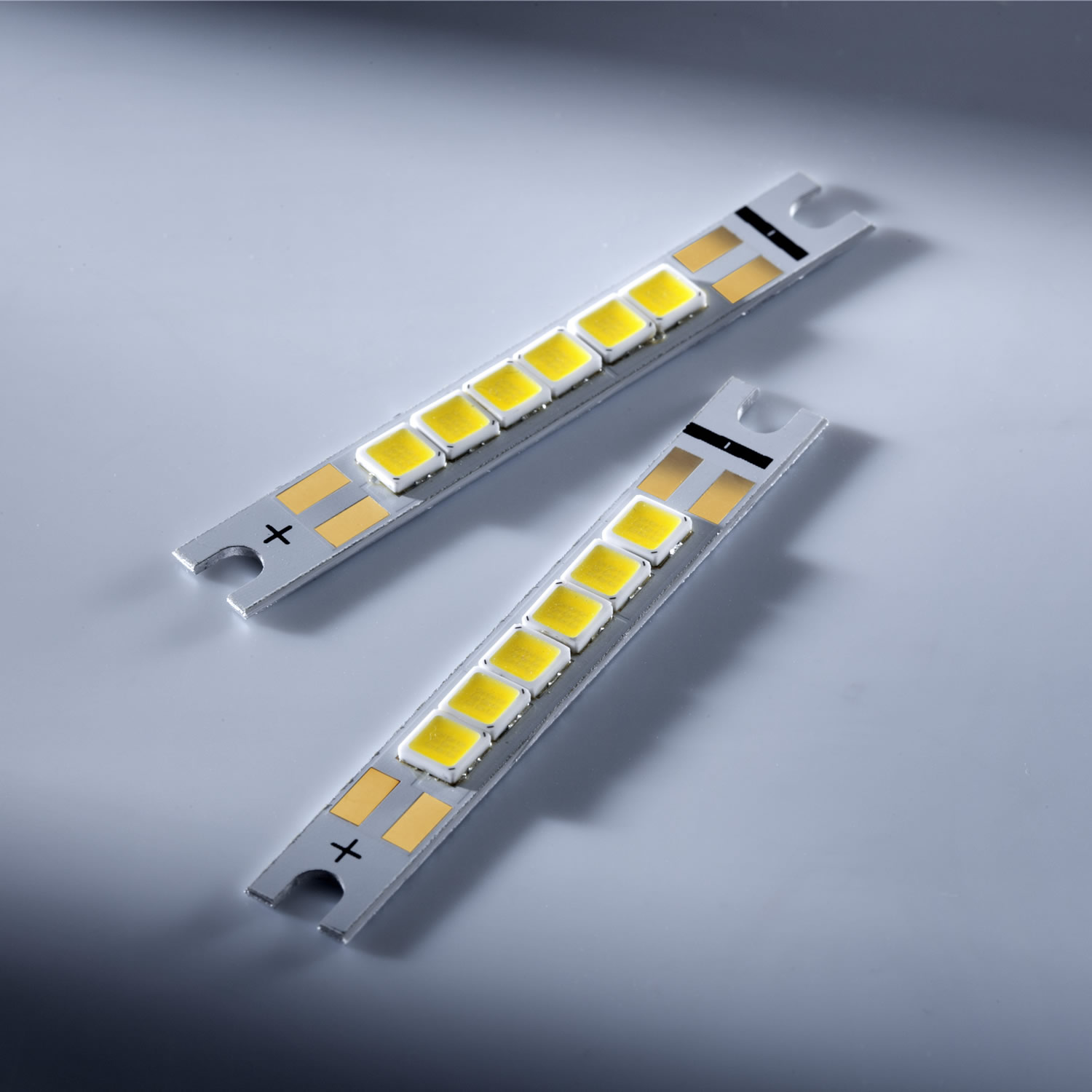

LED SmartArray 757 6x Nichia LED 5cm 4W White 5000K 711lm
€5.96
Stock Germany >100 pcs
SKU
53782
- Buy 100 for €4.05 each and save 32%
Create your products even more individually and choose from the colour temperatures 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K and 6500K.
SmartArray LED modules by Ledrise are perfectly suited for application in industrial areas. Thanks to its ultra slim and compact PCB the module can be used for almost every application and the typical CRI value of 83 makes the colours look particularly natural. The SmartArray was developed especially for the replacement of COB modules. It offers a similar or even better performance, quality of light, manufacturing and a better price with the same dimensions and is compatible with all optics, holders and accessories. Therefore the SmartArray can usually be seamlessly included into the production process without any alterations. Particularly for lamp manufacturers SmartArrays are an excellent replacement for halogen lamps.
Features- Long life expectancy
- Very slim
- Easy to attach
- With 6 high-quality Nichia LEDs: Nichia NF2L757DR (warmwhite) Nichia NF2W757DR (coldwhite)
- dimensions: 50mm x 7mm x 1,9mm (LxBxH)
| SKU | 53782 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 50x7x1.9 mm |
| LED Family | Nichia 757G Series |
| LED Installation Package | MultiLED module |
| Color Rendering Index | 85 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 240 |
| Forward Current Typ | 150ma |
| Forward Voltage Typ (V) | 11.4 |
| LED Power (W) | 1.71 |
| Forward Current Max | 500mA |
| Power Max. (W) | 6.4 |
| Product lifetime (h) | 50000 |
| Efficacy (lm per W) | 141 |
| Manufacturer Product Code | 53782 |
| Brand | Lumistrips |
| Availability beyond shown stock: | YES |
