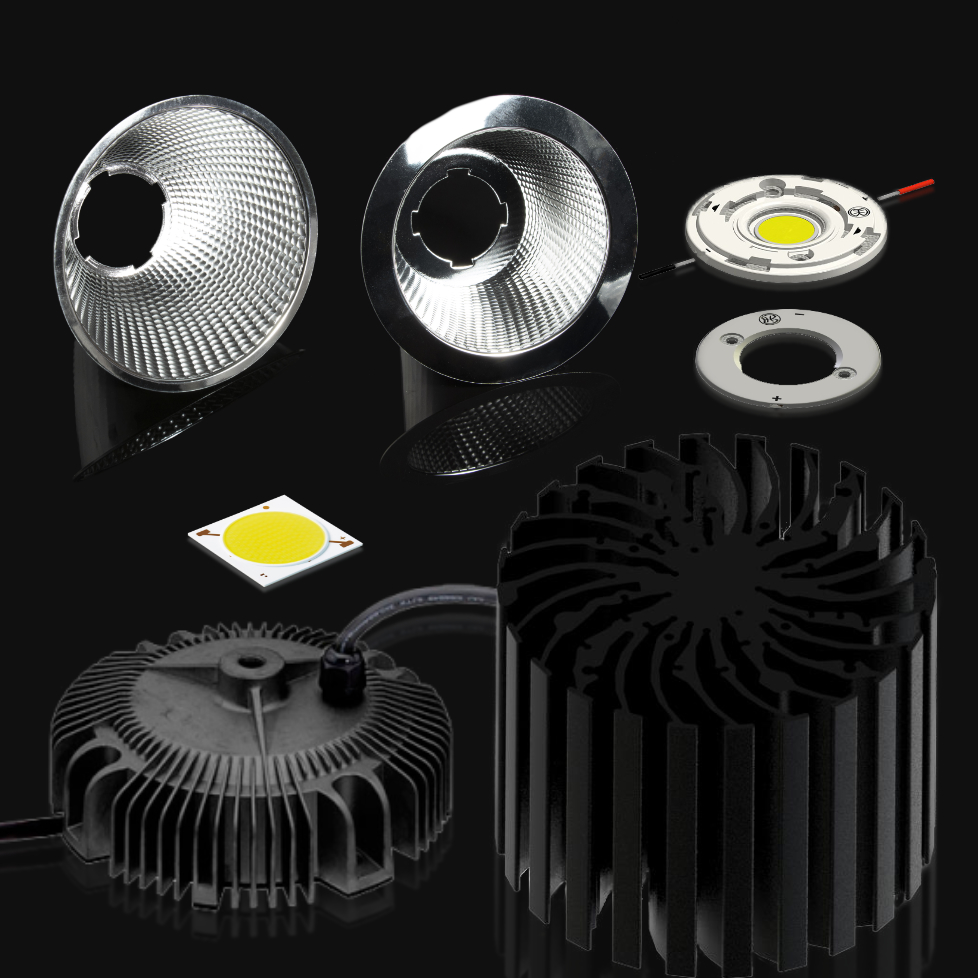

Configurable COB Light-Engine with Nichia Square COB-S LEDs, LEDiL Optics, MechaTronix Heatsink, and Meanwell Driver

Create your ideal high-performance COB light engine with our fully configurable solution, designed for demanding general lighting applications. This modular system combines premium Nichia COB-S LEDs, LEDiL optics, MechaTronix heatsinks, and MeanWell drivers—allowing you to tailor light output, optics, and thermal management to your exact needs.

Options include:

• NEW Nichia COB C Series LEDs – Nichia 28x28mm COB LED NF1818NPC-V4H6 available in multiple color temperatures, CRI ≥80, CRI ≥90 (R9 ≥50), and CRI ≥95 options. The ceramic package ensures long-term durability and high efficacy.

• Bender & Wirth Hybrid 631 Hekla XL solderless adapter (Included) – Simplifies installation with a twist-and-lock mechanism, compatible with LEDiL reflectors.

• Optics Options – Select from various Adelia-110 reflectors  with beam angles from 15° to 76° for spot and flood applications.

• MechaTronix Heatsinks – Available in multiple diameters (ø99mm, ø134mm or ø152mm) and heights to perfectly match your power and thermal requirements.

• MeanWell LED Drivers – Multiple models available with constant current output and dimming options.

Advantages:

• High performance, up to 16000 lm per module

• Modular, plug-and-play design for easy assembly

• Flexible optical and thermal solutions

• Durable components for long service life

Ordering Information:

• Minimum Order Quantity: 70 pieces (LEDs or complete light-engine components)

• Lead Time: 3–6 weeks

• Accessories: Optics, holders, heatsinks, and drivers are optional – configure only what you need.

• Samples: Samples for evaluation can be requested before delivering the total order quantity, for a fixed fee of €250. With this choice, the delivery time will be extended by up to 6 weeks.

This configurable platform is perfect for professional lighting manufacturers, designers, and prototyping projects seeking a reliable, customizable, and efficient COB LED solution.

Technical details:

1. Nichia Square COB C Series LEDs

Nichia's COB C Series offers highly efficient ceramic chip-on-board (COB) LEDs with excellent durability and a wide range of luminous flux options, providing a balance of high-performance and robust construction for various lighting applications. These COBs are known for their high efficacy, making them a compelling choice for general lighting where power efficiency is a priority.

• Package: 28 × 28 mm ceramic body

• Luminous Flux Options: 14000-16000 lm, 84 W, 52.1 V, 1620 mA, LES 22 mm

• CRI Options: CRI ≥80, CRI ≥90 (R9 ≥50), CRI ≥95

• Color Temperatures: Multiple CCTs available (2700K – 6500K)

• Key Benefits:

  • High luminous efficacy for maximum lm/W

  • Robust ceramic construction for long-term stability

  • Consistent color and performance over lifetime

2. Bender & Wirth Solderless Connector (Included)

Bender & Wirth Hybrid 631 Hekla XL solderless adapter is a universal solderless socket for easy COB mounting and optics attachment.

• Dimensions: 44.0 × 44.0 mm

• Compatibility: COBs up to 28 × 28 mm, max 22 mm LES

3. Optics Options

LEDiL BARBARA-G2 Reflectors –Premium aluminum reflectors with sensational light quality and stunning high-quality aesthetics for any track- or downlight luminaires.

• Diameter: Ø110 mm

• Beam Angles: Narrow 13° to wide 65° flood

• Applications: Retail, hospitality, stage lighting

4. MechaTronix Heatsink Options

5. MeanWell LED Driver Options

MeanWell HBG-100-60B – Constant Current Driver with round shape

• Supply voltage: 90-305VAC
• Output: 1.6A at 36-60V
• Tight metal housing according to IP67/IP65
• Built-in PFC Active Function
• Short-circuit, overload, overvoltage, thermal protection
• Dimming function 3in1 (0x10VDC, PWM, resistor)
• Cooling with open air circulation
• Operating temperature -40"+60oC (-40" + 70oC HBD-240)
• Performance up to 93.5%

MeanWell HBG-100-60B – Constant Current Driver with round shape

• Same as HBG-100-60 but with Dali Dimming.

DATASHEET DOWNLOADS ⇩
