Configurable COB Light-Engine with Nichia Square COB-S LEDs, LEDiL Optics, MechaTronix Heatsink, and Meanwell Driver

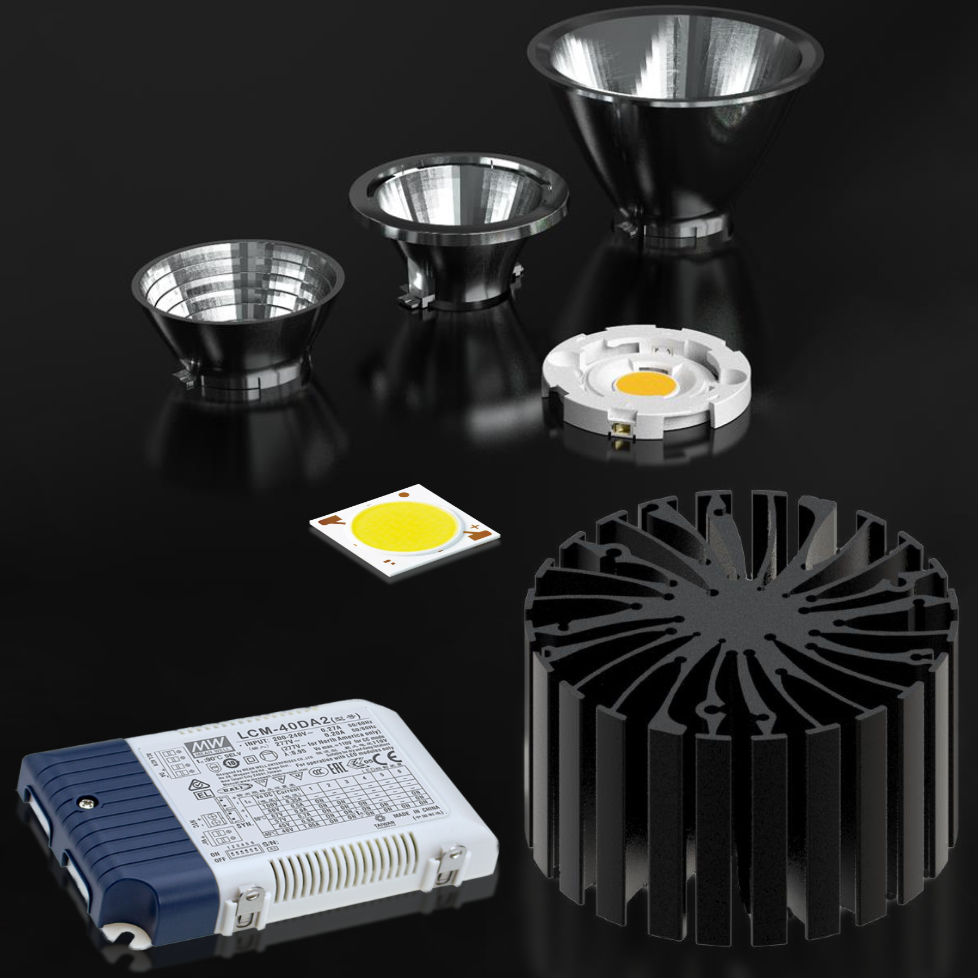

Create your ideal high-performance COB light engine with our fully configurable solution, designed for demanding general lighting applications. This modular system combines premium Nichia COB-S LEDs, LEDiL optics, MechaTronix heatsinks, and MeanWell drivers—allowing you to tailor light output, optics, and thermal management to your exact needs.

Options include:

• NEW Nichia COB C Series LEDs – Choose between 3000 lm or 5000 lm versions, available in multiple color temperatures, CRI ≥80, CRI ≥90 (R9 ≥50), and CRI ≥95 options. The ceramic package ensures long-term durability and high efficacy.

• LEDiL HEKLA Solderless Socket (Included) – Simplifies installation with a twist-and-lock mechanism, compatible with LEDiL AMY-70 lenses and BARBARA-G2 reflectors.

• Optics Options – Select between compact AMY-70 lenses for low-profile luminaires or BARBARA-G2 reflectors with beam angles from 13° to 75° for spot and flood applications.

• MechaTronix Heatsinks – Available in multiple diameters (ø70mm, ø86mm,ø99mm) and heights to perfectly match your power and thermal requirements.

• MeanWell LED Drivers – Multiple models available with constant current output and dimming options (phase-cut, non-dimmable).

Advantages:

• High performance, up to 5000 lm per module

• Modular, plug-and-play design for easy assembly

• Flexible optical and thermal solutions

• Durable components for long service life

Ordering Information:

• Minimum Order Quantity: 70 pieces (LEDs or complete light-engine components)

• Lead Time: 3–6 weeks

• Accessories: Optics, holders, heatsinks, and drivers are optional – configure only what you need.

• Samples: Samples for evaluation can be requested before delivering the total order quantity, for a fixed fee of €250. With this choice, the delivery time will be extended by up to 6 weeks.

This configurable platform is perfect for professional lighting manufacturers, designers, and prototyping projects seeking a reliable, customizable, and efficient COB LED solution.

Technical details:

1. Nichia Square COB C Series LEDs

Nichia's COB C Series offers highly efficient ceramic chip-on-board (COB) LEDs with excellent durability and a wide range of luminous flux options, providing a balance of high-performance and robust construction for various lighting applications. These COBs are known for their high efficacy, making them a compelling choice for general lighting where power efficiency is a priority.

• Package: 19 × 19 mm ceramic body

• Luminous Flux Options:

  • NF1206JLC-V5: ~3000 lm, 18 W, 34.4 V, 540 mA, LES 14 mm

  • NF1210JLC-V5: ~5000 lm, 31 W, 34.4 V, 900 mA, LES 14 mm

• CRI Options: CRI ≥80, CRI ≥90 (R9 ≥50), CRI ≥95

• Color Temperatures: Multiple CCTs available (2700K – 6500K)

• Key Benefits:

  • High luminous efficacy

  • Robust ceramic construction for long-term stability

  • Consistent color and performance over lifetime

2. LEDiL HEKLA-G2-I Solderless Connector (Included)

A universal solderless socket for easy COB mounting and optics attachment.

• Dimensions: 44.0 × 44.0 mm, height 5.5 mm

• Compatibility: COBs of 19 × 19 mm, max 17 mm LES

• Features:

  • Twist-and-lock mechanism for easy optics installation

  • High-temperature resistant materials

  • Zhaga-compliant mounting holes

3. Optics Options

LEDiL AMY-70 Lens – Low-profile lens for compact luminaires

• Diameter: Ø70 mm

• Optimized For: LES ≤14.5 mm

• Variants: Lens-only or assembly with black holder C (HEKLA-compatible)

• Applications: Track lighting, downlights, compact spot luminaires

LEDiL BARBARA-G2 Reflectors – High-quality reflectors for precise beam control

• Diameter: Ø70 mm

• Beam Angles: Narrow 13° to wide 75° flood

• Features:

  • RZ-sublens for RGBW and tunable white mixing

  • Bayonet fastening, compatible with HEKLA socket

• Applications: Retail, hospitality, stage lighting

4. MechaTronix Heatsink Options

5. MeanWell LED Driver Options

MeanWell LCM-40 – Multi-Current Constant Current Driver

• Output Power: 40 W

• Selectable Output Current: 350 / 500 / 600 / 700 / 1050 mA (DIP switch selectable)

• Output Voltage Range: 2–100 VDC

• Efficiency: Up to 91%

• Features:

  • Active Power Factor Correction (PFC >0.9)

  • Push-dim (on/off & dimming via push button)

  • Adjustable current output for flexibility

  • Class II (no earth required)

MeanWell LCM-40DA – DALI & Push-Dim Dimmable Version

• Same as LCM-40, plus:

  • DALI or DALI 2.0 interface (Digital Addressable Lighting Interface)

  • Push-Dim functionality for easy manual control

  • Perfect for DALI-based intelligent lighting systems

MeanWell LCM-40KN – Wireless Dimmable control via integrated CASAMBI

Same as LCM-40, plus:

• • With integrated KNX module

  • Can be controlled via KNX system for dimming or on/off

  • Perfect for intelligent lighting systems
