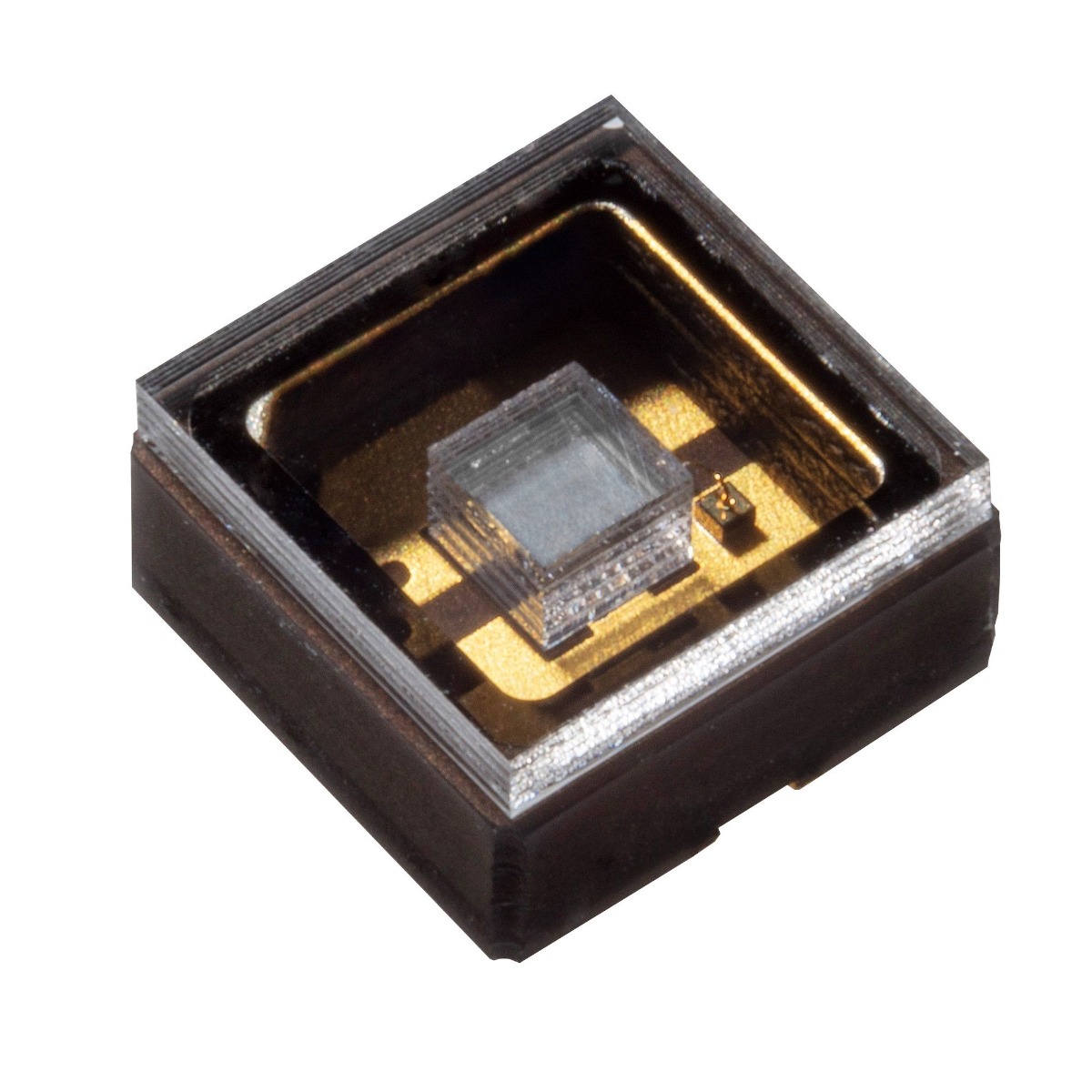

Introducing the NCSU434C, the most powerful UV-C LED from Nichia, the world's largest LED manufacturer and inventor of the high-brightness blue and white LED. Designed to target the inactivation and sterilization of various bacteria and viruses, this high radiant flux LED is ideal for use in industrial water and air applications.
With its small 3.5mm x 3.5mm size, the NCSU434C is a game-changer in the industry, boasting industry-leading radiant flux (110mW) and wall-plug efficiency (5.4%). In fact, it has an ~80% flux improvement over previous Nichia LEDs, making it an excellent choice for smaller and more dense designs. With Nichia's latest innovation, customers can expect the highest levels of performance improvements, making it an ideal replacement for environmentally harmful mercury lamps with LED systems.
The NCSU434C is perfect for use in various large flow water and air disinfection equipment for inactivation of various viruses, including the new coronavirus, and sterilization of bacteria. Its exceptional performance levels further justify the immediate replacement of environmentally harmful mercury lamps with LED systems.
Nichia promises to continue to develop not only deep-ultraviolet LEDs but also higher-power ultraviolet LEDs with improved performance to help solve various social issues and to assist in achieving a mercury-free and carbon-free society through energy conservation. This commitment to innovation and sustainability makes Nichia a leader in the industry.
The NCSU434C is a high-performance UV-C SMD LED with a typical radiant power of 110mW and 280nm wavelength. Its typical voltage is 5.8V, current 350mA, and typical power consumption only 2.03W. With a 120-degree viewing angle and dimensions of 3.5mm x 3.5mm, it is ideal for disinfection and sterilization applications.
The NCSU434C is a high-performance UV-C LED that offers exceptional performance, reliability, and versatility. Its innovative design, coupled with Nichia's commitment to sustainability, makes it an ideal choice for customers seeking to replace traditional mercury lamps with energy-efficient LED systems.
Features
Application areas
| SKU | 40395 |
|---|---|
| LED Size | 3.5x3.5 mm |
| LED Family | Nichia UV (New!) |
| LED Installation Package | Emitter |
| Color | UVC Ultraviolet |
| Viewing Angle | 120° |
| Forward Current Typ | 350ma |
| Forward Voltage Typ (V) | 5.8 |
| Power (W) | 2.03 |
| Forward Current Max | 700mA |
| Wavelength (nm) | 280 |
| Manufacturer Product Code | Nichia NCSU434CT |
| Brand | Nichia |
| Availability beyond shown stock: | YES |
