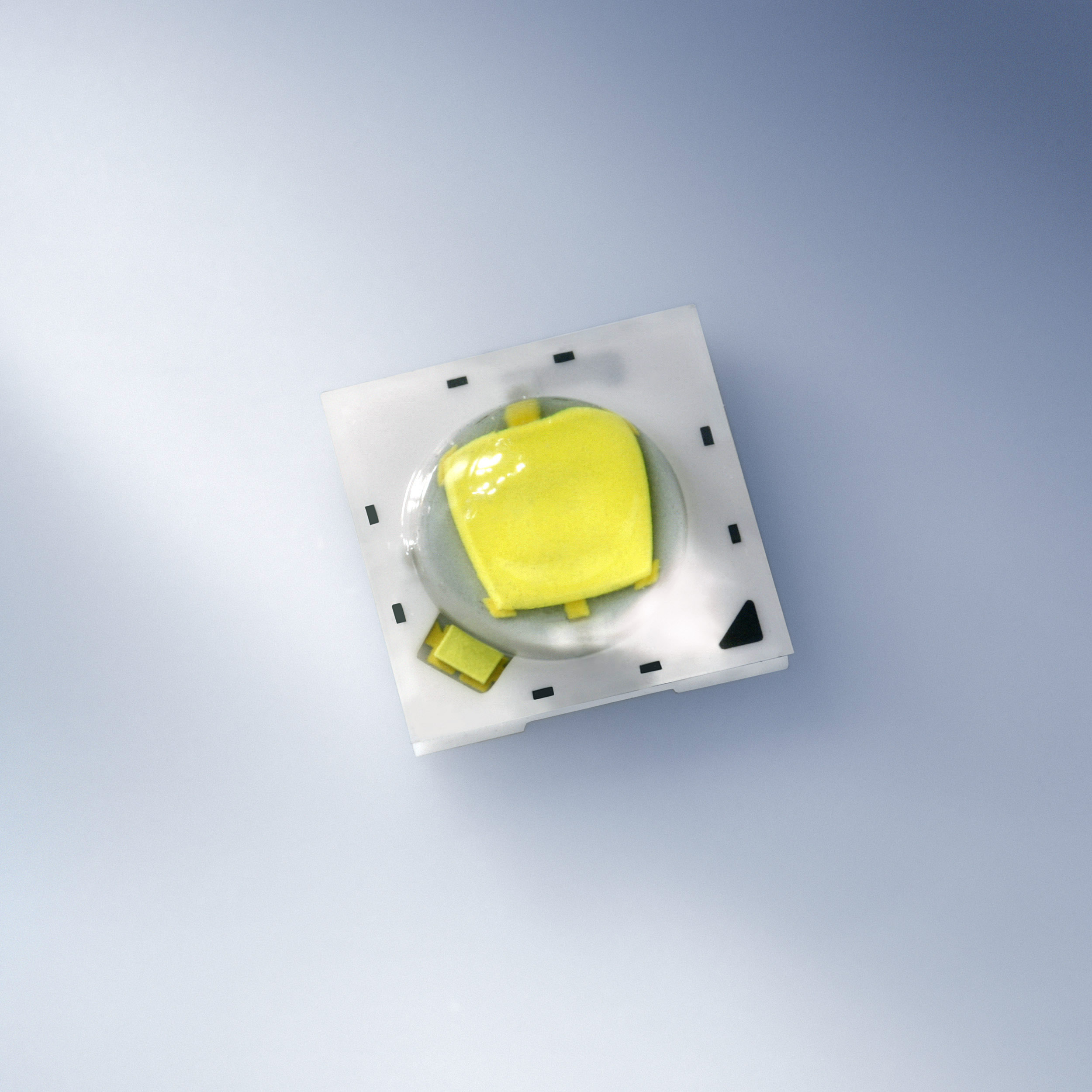

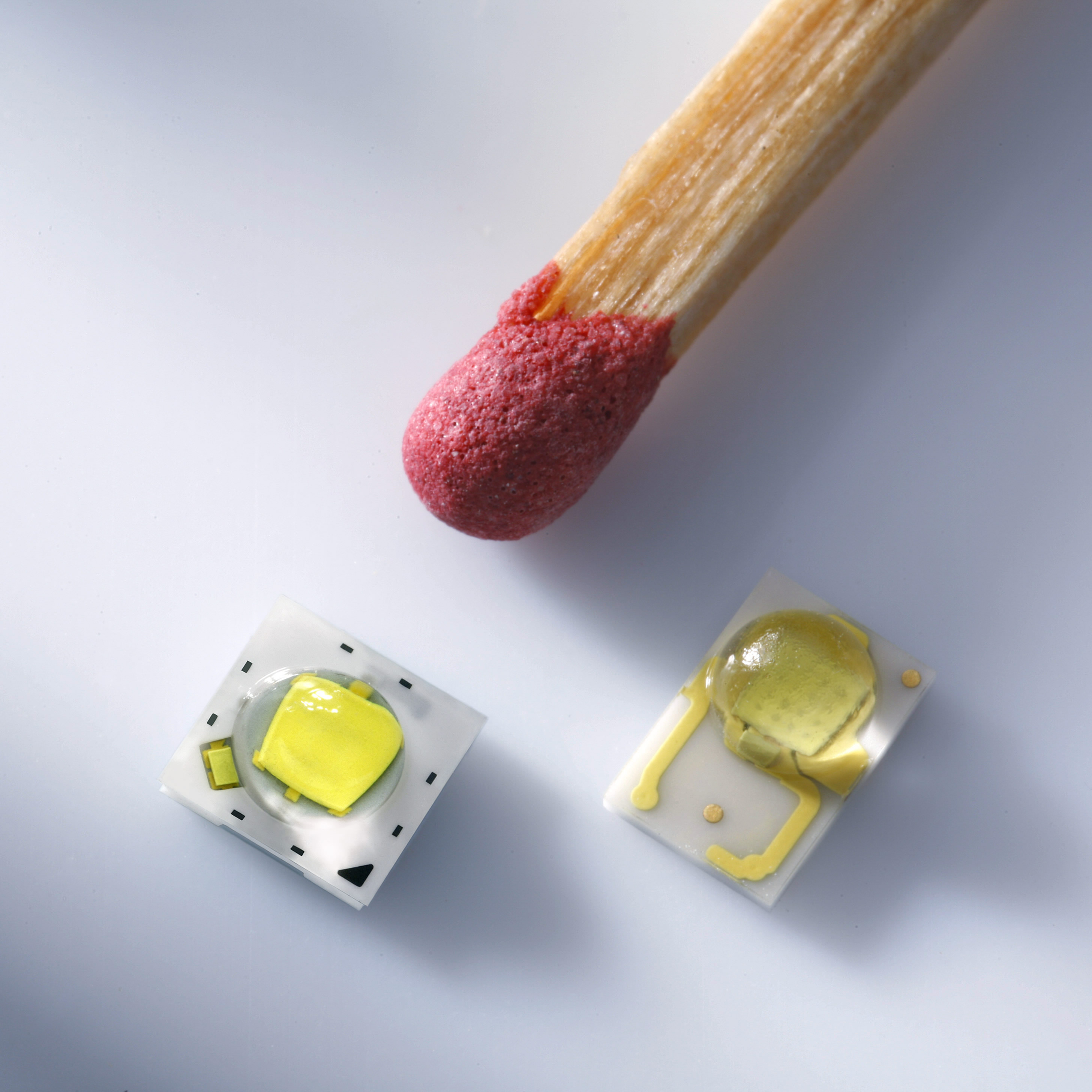

Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB

Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB

Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB
Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB

Nichia LED Series 119 NCSE119A 98lm blue-green 1x1cm PCB

€1.31
Stock Germany >1000 pcs
SKU
65705

With 24% global market share, Nichia is the largest LED manufacturer in the world and inventor of the blue (and also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to durability, brightness and efficiency, reaching new records on a regular basis.

Lumitronix is the official Nichia distributor in Europe and Ledrise.eu is the exclusive online sales platform for all Nichia LEDs from Lumitronix.  We order them directly from Nichia, Japan and ship from Germany to you.



Blog Posts (10)

With our PCB LED modules you can easily harness the power of the high performance Nichia LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

With 24% Nichia is the largest LED manufacturer in the world and inventor of the blue (and so also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.

Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Further, the fine selection allows a large added value for professional processing.

Features
  • 119 Package
  • Single Chip LED
  • Ceramic cage
  • Measures (LxWxH): 3,5x3,5x2,0mm
Application range
  • Special Effect Lighting
  • Signage Lighting
  • Traffic Lighting
Technical Data
SKU 65705
Weight brut (g) 1.000000
LED Size 3.5x3.5 mm
LED Family Nichia 19B Series
LED Installation Package 1x1 cm PCB
Color Blue
Viewing Angle 120°
Luminous Flux Typ (lm) 49
Forward Current Typ 175ma
Forward Voltage Typ (V) 3.3
Power (W) 0.58
Forward Current Max 700mA
Power Max. (W) 2.7
Efficacy (lm per W) 85
Wavelength (nm) 500
Manufacturer Product Code NCSE119A DE B07-B10
Brand Nichia
Availability beyond shown stock: NO
Dimensions: Length (cm) 0.35
Dimensions: Width (mm) 0.20
Dimensions: Height (mm) 0.35
