Nichia NCSLE17AT 3000K R8000 with PCB (10x10mm) 133lm 3000K
- High-quality SMD LED for professional lighting
- Luminous flux 133 lm at 3000K, CRI 80
- Power consumption 1.05 W at an efficacy of 127 lm/W
- Original Nichia LED package
- Dimensions 10 x 10 x 2 mm

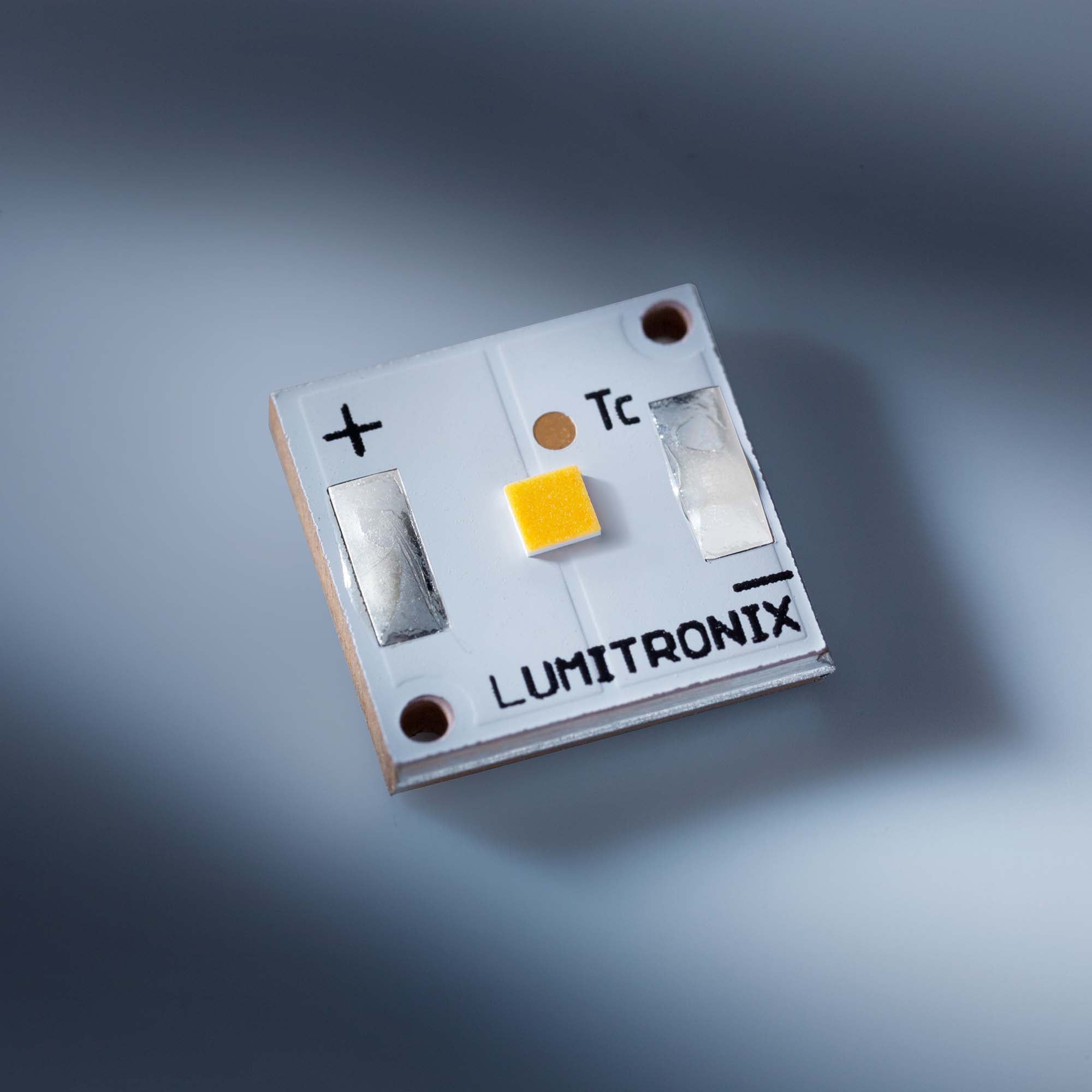

With our PCB LED modules you can easily harness the power of the high performance Nichia LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron. The PCB LED is great for small projects, rapid prototyping or custom builds.

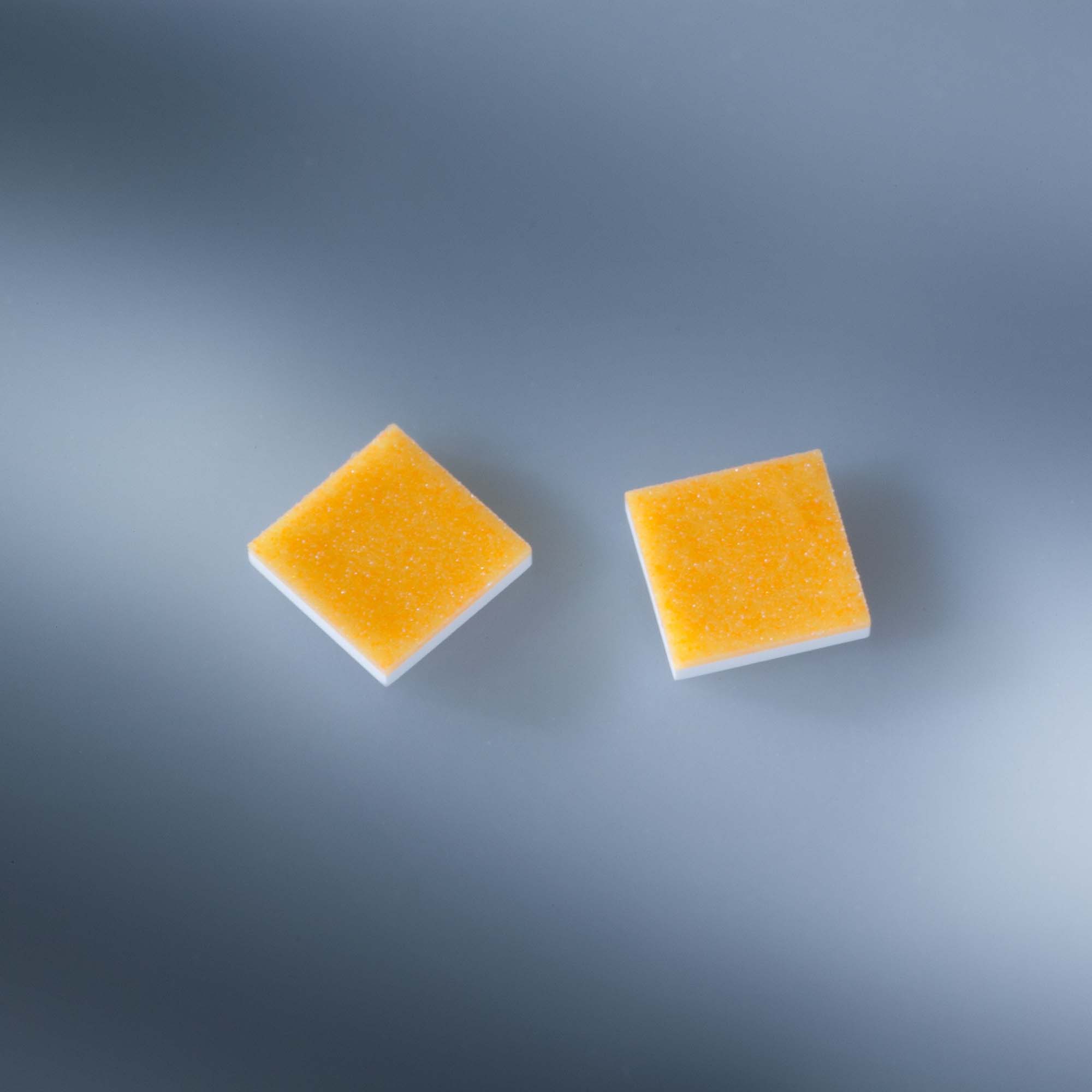

The Nichia direct mountable, packageless, chip scale LEDs can be used in general lighting via conventional SMT and reflow processes. Nichia's Direct Mountable Chip, also known as "Flip Chip", achieves the highest flux density level in the LED industry. Designs can range from a single to a clustered approach. Infinite possibilities are now available.
Features
- 1- 3W High-Power packageless, chip scale LEDs
- Square package with two versions 1.7x1.7mm and 2.1x2.1mm
- Various color temperatures available
- With 3 SDCM (standard deviation of color matching) as standard, 5 or 7 SDCM optional
- Individual and flexible use
Color temperature options
- 3 SDCM offered as standard
- Center bin at extra cost
Application areas
- LED spot light
- LED high bay and downlights
- LED street light
Delivery and price rules:
- Available in Emitter form or with PCB for easy installation
- Price for 1 pcs valid up to one full reel
- Price for one reel valid up to 5 reels
- For more than 5 reels inquire for price
| SKU | 65505 |
|---|---|
| Weight brut (g) | 0.000000 |
| Factory Pack Quantity (Reel or Tray) | 1 |
| LEDs number per sales unit | 1 |
| LED Size | 1.7x1.7 mm |
| LED Family | Nichia E17A Series |
| LED Installation Package | 1x1 cm PCB |
| Color Rendering Index | 80 |
| Color | Warm White |
| Color Temperature | 3000K |
| Luminous Flux Typ (lm) | 133 |
| Forward Current Typ | 350ma |
| Forward Voltage Typ (V) | 3 |
| LED Power (W) | 1.05 |
| Power Max. (W) | 2.24 |
| Efficacy (lm per W) | 127 |
| Manufacturer Product Code | NCSLE17AT |
| Brand | Nichia |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 1 |
| Dimensions: Width (mm) | 10 |
| Dimensions: Height (mm) | 2 |
