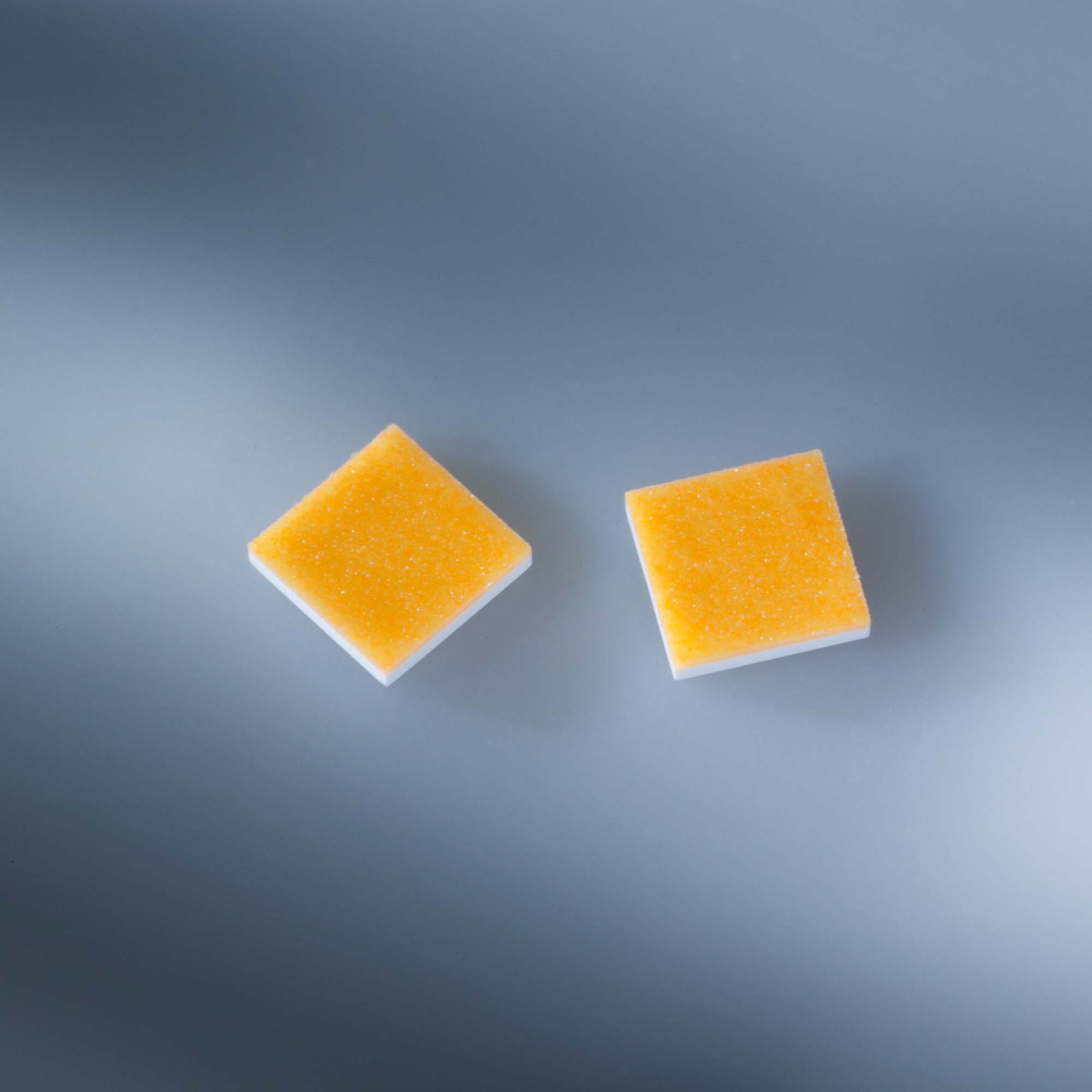

Nichia NCSWE17AT 5000K R8000 without PCB (emitter) 148lm 5000K
€0.34
Ships in 3-6 weeks
SKU
65489
The Nichia direct mountable, packageless, chip scale LEDs can be used in general lighting via conventional SMT and reflow processes. Nichia's Direct Mountable Chip, also known as "Flip Chip", achieves the highest flux density level in the LED industry. Designs can range from a single to a clustered approach. Infinite possibilities are now available.
Features
- 1- 3W High-Power packageless, chip scale LEDs
- Square package with two versions 1.7x1.7mm and 2.1x2.1mm
- Various color temperatures available
- With 3 SDCM (standard deviation of color matching) as standard, 5 or 7 SDCM optional
- Individual and flexible use
Color temperature options
- 3 SDCM offered as standard
- Center bin at extra cost
Application areas
- LED spot light
- LED high bay and downlights
- LED street light
Delivery and price rules:
- Available in Emitter form or with PCB for easy installation
- Price for 1 pcs valid up to one full reel
- Price for one reel valid up to 5 reels
- For more than 5 reels inquire for price
| SKU | 65489 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 1.7x1.7 mm |
| LED Family | Nichia E17A Series |
| LED Installation Package | Emitter |
| Color Rendering Index | 80 |
| Color | Cold White |
| Color Temperature | 5000K |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 148 |
| Forward Current Typ | 350ma |
| Forward Voltage Typ (V) | 3 |
| LED Power (W) | 1.05 |
| Forward Current Max | 700mA |
| Power Max. (W) | 2.24 |
| Efficacy (lm per W) | 141 |
| Manufacturer Product Code | NCSWE17AT sm503/B14-B15/L12-M21/R8000 |
| Brand | Nichia |
| Availability beyond shown stock: | YES |
