Nichia’s 757G series mid-power, 3030 LED package uses a proprietary design and thermoset composite material to deliver efficacy and value beyond current high-power LED capabilities.
Further more, with luminous efficacy reaching 220 lumens/watt, the Nichia 757G series surpasses in performance all other commercially available mid-power LEDs as of 2017.
LM-80 and TM-21 reports from Nichia certify also reliability at over 60,000 hours with minimum color shifts.
The unique design attributes in the 757G series ensure great reliability while delivering high visual comfort with uniform light distribution and tighter color control. The differentiation rests with the proprietary thermoset composite packing materials paired with high-efficiency LED chips and specially blended phosphors.
Color temperature options
Delivery and price rules:
|Weight brut (kg)||1.0000|
|LED Size||3x3 mm|
|LED Family||Nichia 757G Series|
|LED Application||Tube Light, Panel Light, Cove Light, Sign Board, Spotlight, Bulb, Ceiling Light|
|LED Installation Package||Emitter|
|Color Rendering Index||80|
|Luminous Flux Typ (lm)||144|
|Luminous Efficacy (lm/W)||152|
|Forward Current Typ||150 ma|
|Forward Voltage Typ (V)||6.3|
|Forward Voltage Max (V)||6.6|
|Forward Current Max||200mA|
|Luminous Flux Max (lm)||185|
|Power Max. (W)||1.32|

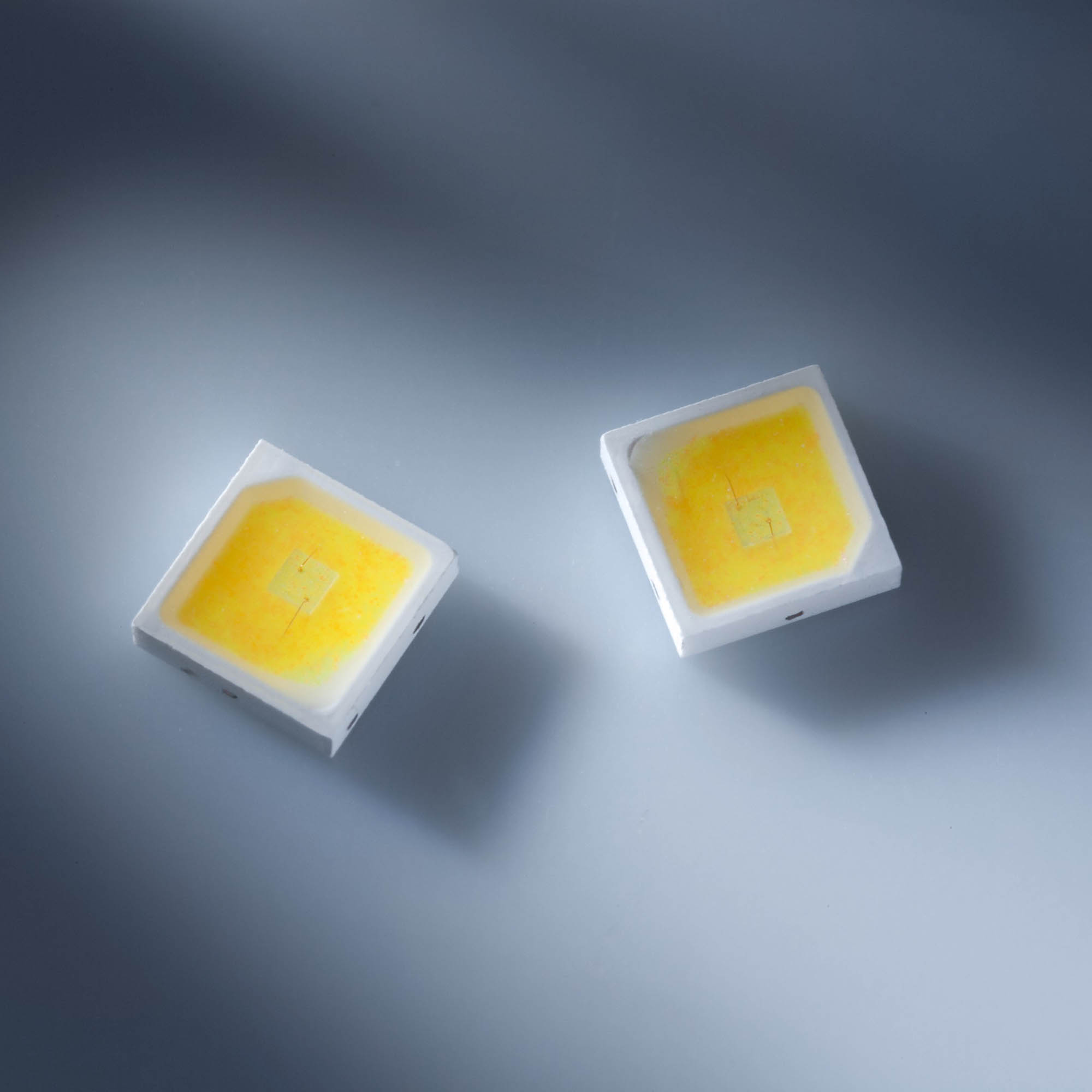

|Manufacturer Product Code||NF2W757GRT-V1 sm505/P18d21-P20d22/L11-M11/R8000|
|Availability beyond shown stock:||YES|
