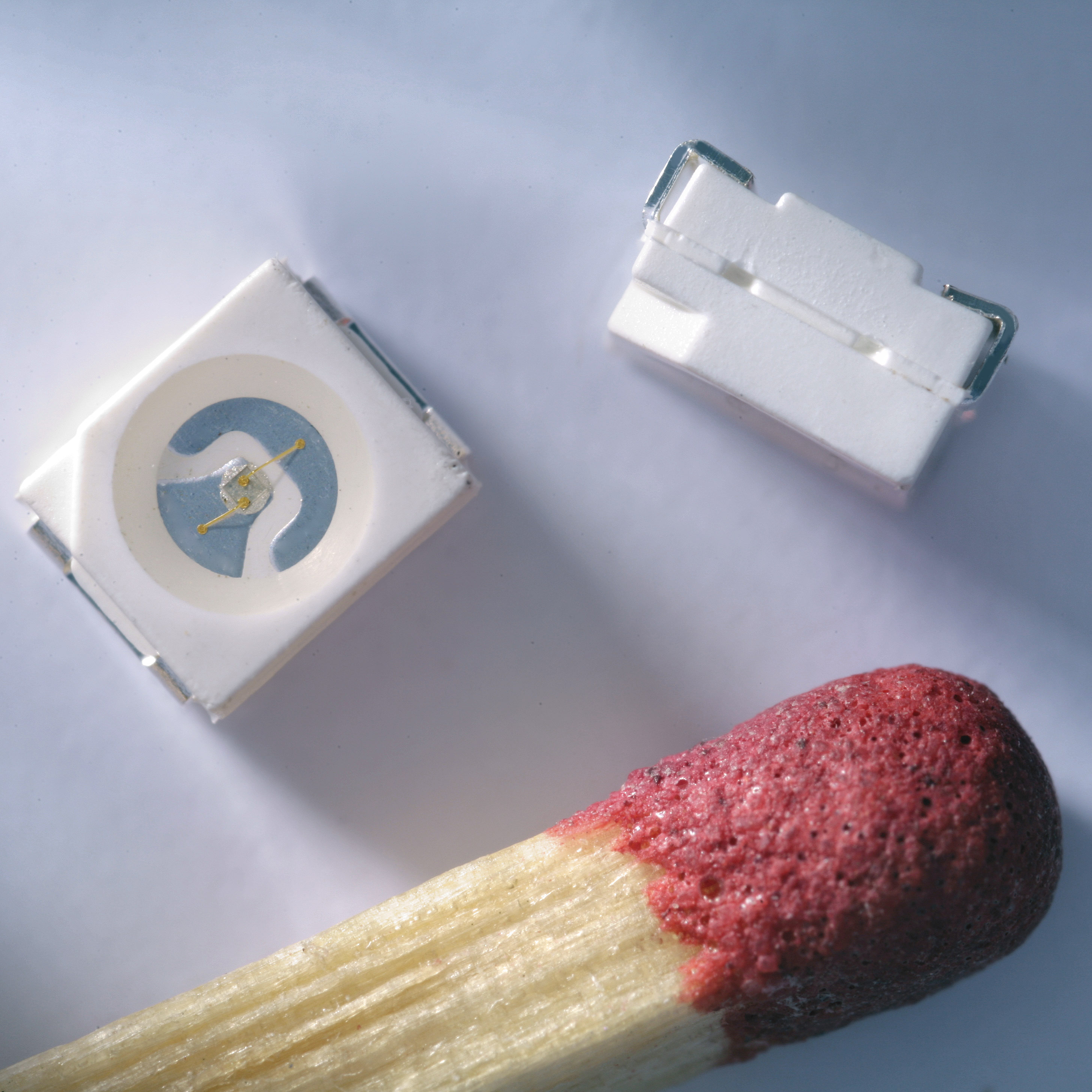

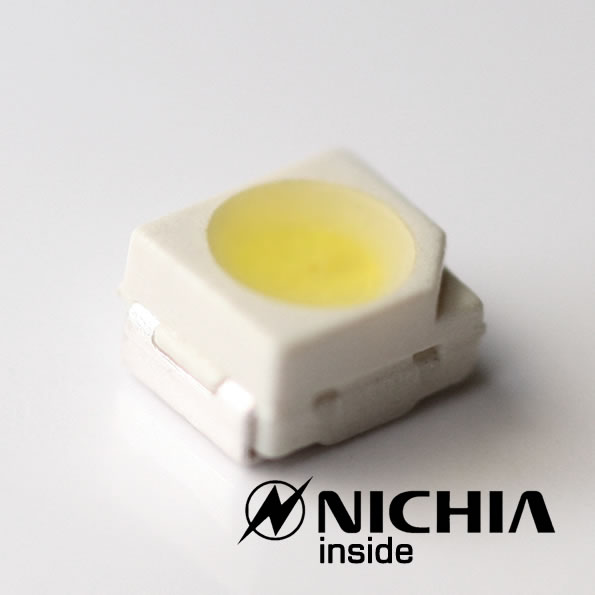

Nichia NSSW064A Top SMD LED White 6400mcd 115deg

Nichia NSSW064A Top SMD LED White 6400mcd 115deg

Nichia NSSW064A Top SMD LED White 6400mcd 115deg
Nichia NSSW064A Top SMD LED White 6400mcd 115deg Nichia NSSW064A Top SMD LED White 6400mcd 115deg

Nichia NSSW064A Top SMD LED White 6400mcd 115deg

Overall Rating:
100 % of 100
€0.30
Stock Germany >10 pcs
SKU
14014

With 24% global market share, Nichia is the largest LED manufacturer in the world and inventor of the blue (and also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to durability, brightness and efficiency, reaching new records on a regular basis.

Lumitronix is the official Nichia distributor in Europe and Ledrise.eu is the exclusive online sales platform for all Nichia LEDs from Lumitronix.  We order them directly from Nichia, Japan and ship from Germany to you.



Blog Posts (11)

Nichia is one of the World’s largest producers of light-emitting diodes and inventor of the blue and white LED. Nichia’s extraordinarily innovative research department is at the top when it comes to efficiency and regularly sets new records.

Durability, brightness and homogeneity are the strong points of the Nichia brand. Challenging projects with SMD LEDs cannot escape these elite LEDs.

  • High brightness
  • High homogeneity (colour fidelity)
  • Marvellous efficiency
  • High durability
  • High workmanship quality
Technical Data
SKU 14014
Weight brut (g) 1.000000
LED Size 3.2x2.8 mm
LED Family Nichia 064SMD
Color Neutral White
Color Temperature 5000K
Color Rendering Index 70
Viewing Angle 115°
Luminous Flux Typ (lm) 5
Luminous Intensity Typ. 6400
Forward Current Typ 20ma
Forward Voltage Typ (V) 2.8
Power (W) 0.06
Forward Current Max 50mA
Power Max. (W) 0.2
Efficacy (lm per W) 84
Manufacturer Product Code NSSW064AT C2 X1/X2/Y1/Y2
Brand Nichia
Availability beyond shown stock: NO
Dimensions: Length (cm) 0.32
Dimensions: Width (mm) 0.19
Dimensions: Height (mm) 0.28
