Nichia SMD LED UV NVSU233CT-D4 365nm 1450mW at 1000mA 3.85W 10x10mm PCB with 60 deg focused beam

The Nichia NVSU233CT-D4 UV SMD LED with a matching dome lens is designed for industrial applications that require excellent price-performance ratio and versatility. It emits ultraviolet light at a wavelength of 365 nm, which is ideal for various industrial applications such as medical technology, testing and sorting equipment, hardening, and cameras with UV light.

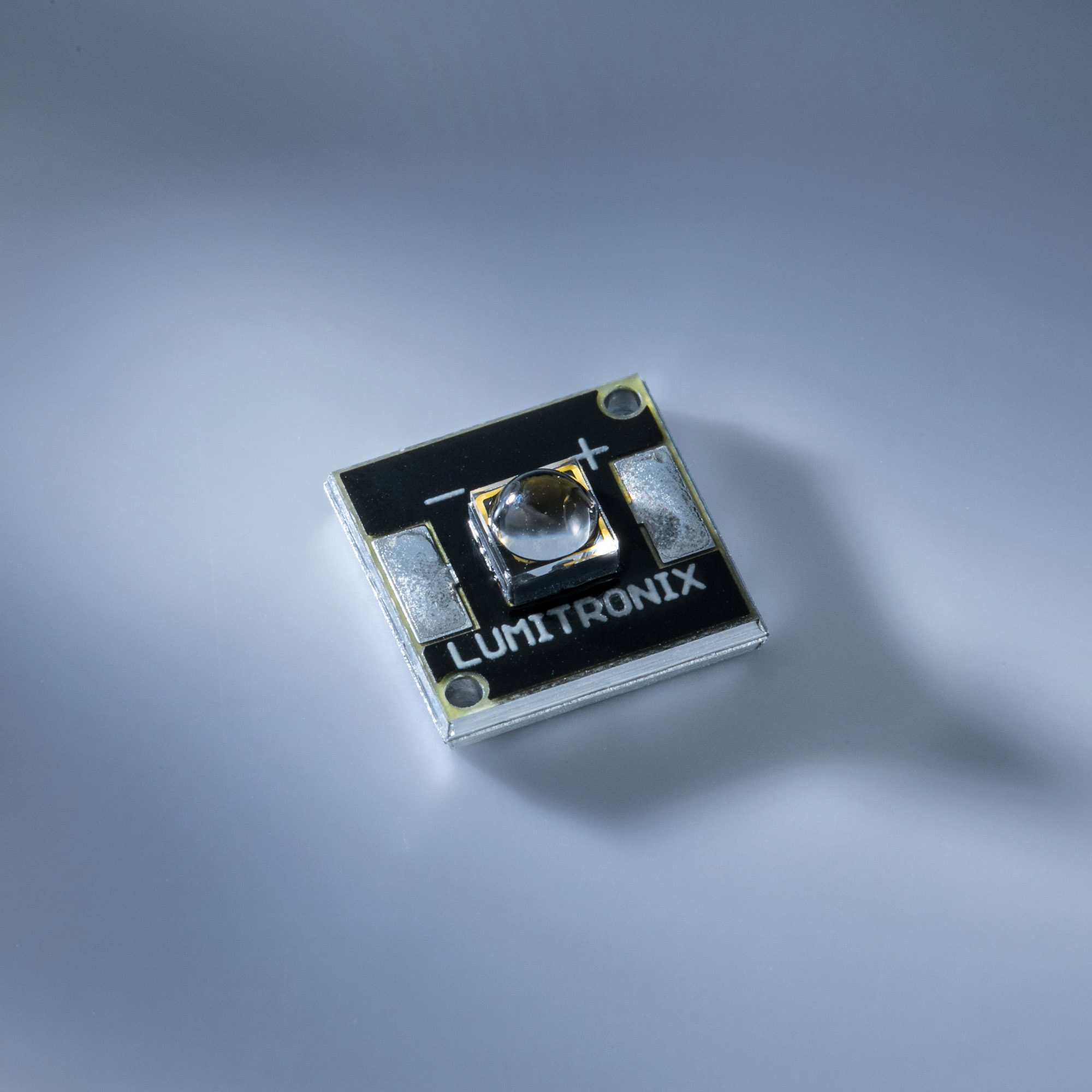

Our PCB UVA LED modules make it easy to leverage the power of Nichia's high-performance LED for your application without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany with the highest quality, ensuring the best heat transfer and the longest LED lifetime. The solder pads are easy to connect with a basic soldering iron, making it ideal for small projects, rapid prototyping, or custom builds.

Nichia is a world-renowned brand and market leader in the LED industry. They are known for their innovative research and development, which is always at the forefront of efficiency, durability, and brightness. Nichia invented the blue (and thus also white) light-emitting diode and their selection of fine products allows for great added value in professional processing.

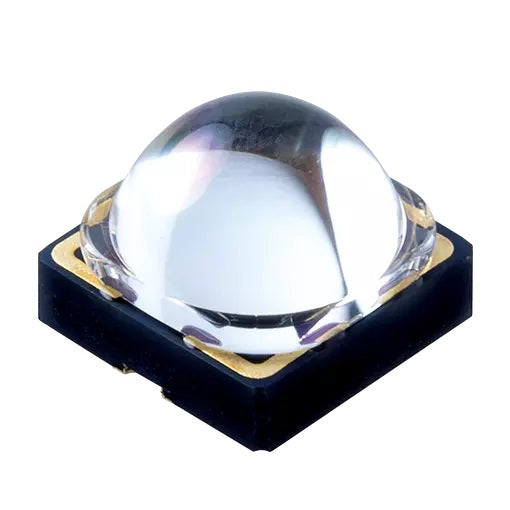

The Nichia NVSU233CT-D4 UV LED comes with a 60-degree glass lens that limits the beam angle. It is designed with the 233 package and has an optical power of 1450 mW. It measures 3.5 x 3.5 x 2.73 mm and is classified as risk group 3 (EN 62471).

In summary, the Nichia NVSU233CT-D4 UV SMD LED is an excellent choice for industrial applications that require high-quality ultraviolet light with a matching lens. It is a durable, efficient, and reliable product from the world's leading LED manufacturer.

Please be aware that UV light is invisible and poses a danger to the eyes even during brief exposure. We advise consulting our staff for advice on this product before purchasing.

Features of the Nichia NVSU233CT-D4 UV LED

• UV LED with lens for focused UVA light
• 233 package
• Wavelength: 365 nm
• Optical power: 1450mW at 1000mA 3.85W
• Measurements (L x W x H): 3.5 x 3.5 x 2.73 mm
• On circuit board 10 x 10 mm

Application ranges

• Medical technology
• Testing and sorting equipment
• Hardening
• Cameras with UV light

Warning notice

Actinic UV hazard to eyes and skin

Ultraviolet radiation in the wavelength range of 200 - 400 nm can lead to inflammation of the cornea of the eye or to UV erythema (sunburn) of the skin. The biological effectiveness of UV radiation varies in the specified wavelength range and is described by the spectral response function (evaluation curve) SUV.

UV-A Danger to the eye

Ultraviolet radiation in the wavelength range 315 - 400 nm (UV-A) is largely absorbed by the eye lens and can lead to UV cataract (opacity of the eye lens).
