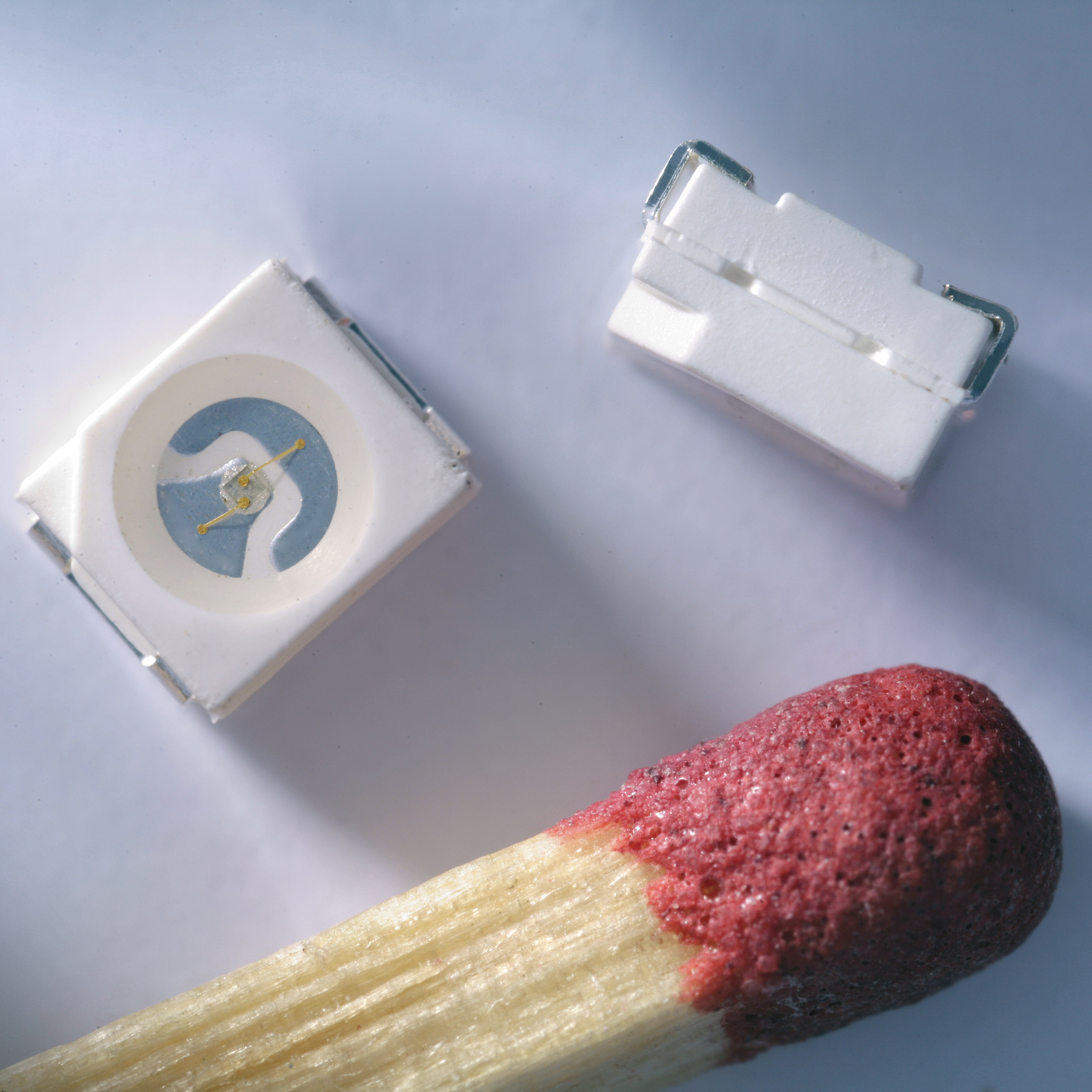

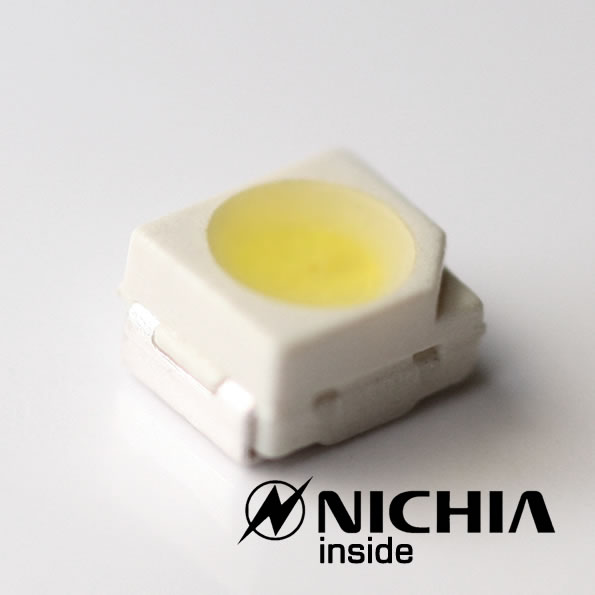

Nichia SMD LED white 6100mcd 115deg NSSW063A
€0.40
Stock Germany >100 pcs
SKU
14080
Nichia is one of the largest LED manufacturers in the world and inventor of the blue (and thus also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.
Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Furthermore, the fine selection allows greater added value for professional processing.
Features- High brightness
- High homogeneity (colour fidelity)
- Marvellous efficiency
- High durability
- High workmanship quality
- Dimensions (LxWxH): 3,5x2,8x2,0mm
- automotive lighting
- display lighting
| SKU | 14080 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 3.5x2.8 mm |
| LED Family | Nichia 064SMD |
| Color | Neutral White |
| Color Temperature | 5000K |
| Viewing Angle | 115° |
| Forward Current Typ | 50ma |
| Forward Voltage Typ (V) | 3 |
| LED Power (W) | 0.15 |
| Product lifetime (h) | 50000 |
| Manufacturer Product Code | NSSW063AT C1/C2 Y/Z |
| Brand | Nichia |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 0.35 |
| Dimensions: Width (mm) | 0.20 |
| Dimensions: Height (mm) | 0.28 |
