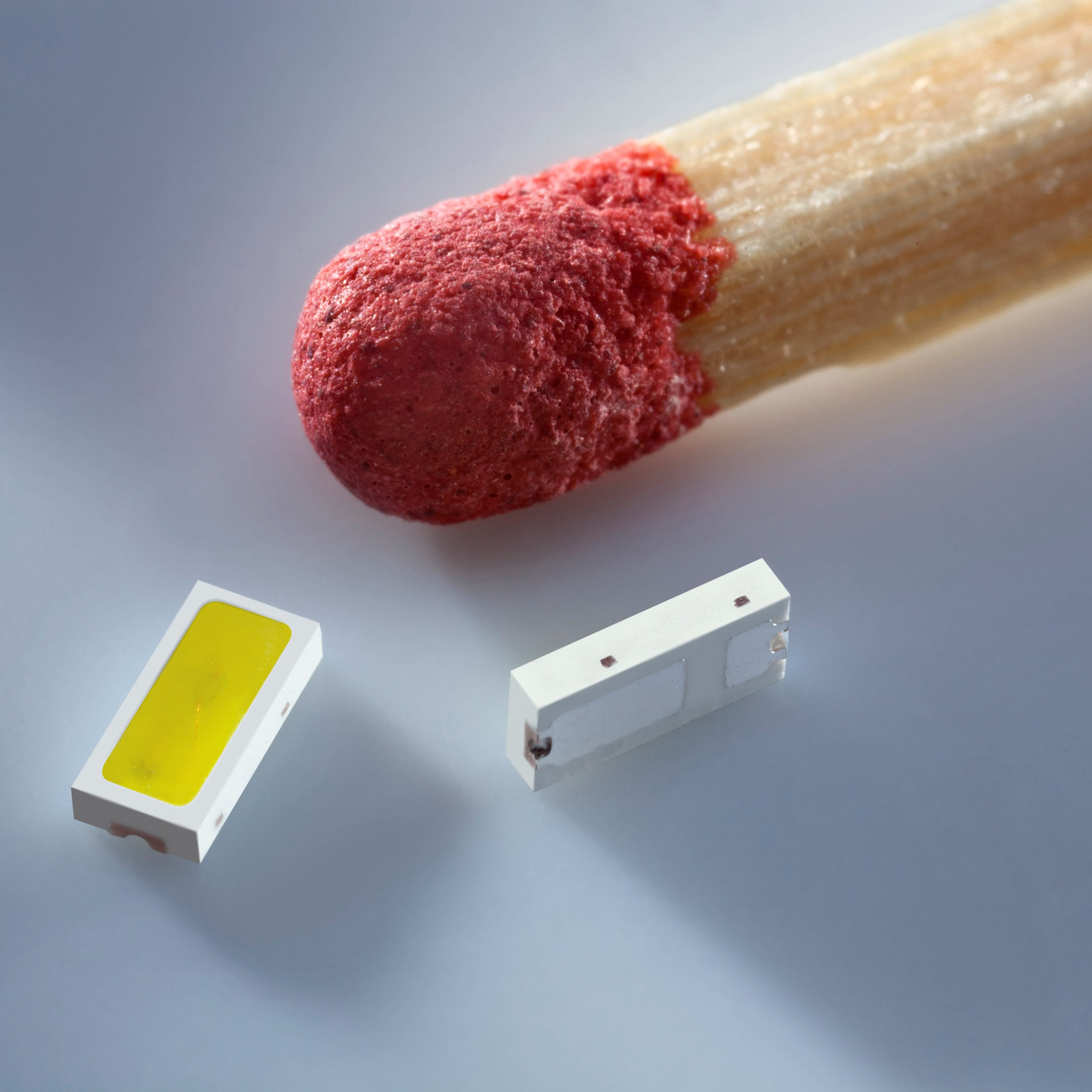

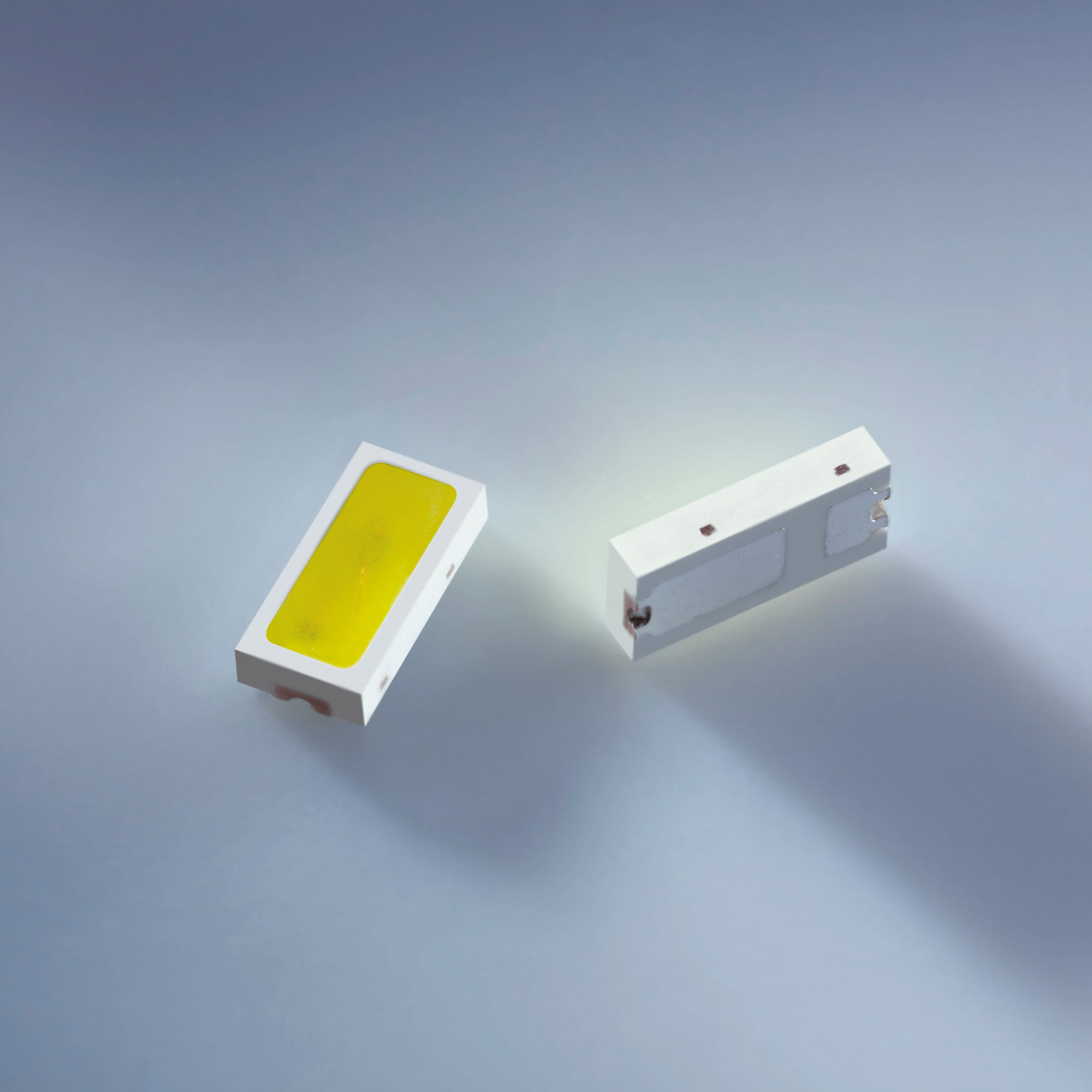

Nichia SMD LED white 9lm NHSW157BT
€0.31
Stock Germany >1000 pcs
SKU
14067
Nichia is one of the World’s largest producers of light-emitting diodes and inventor of the blue and white LED. Nichia’s extraordinarily innovative research department is at the top when it comes to efficiency and regularly sets new records.
Durability, brightness and homogeneity are the strong points of the Nichia brand. Challenging projects with Superflux LEDs cannot escape these elite LEDs.
The smallest and slimmest Nichia SMD LED series with very high efficiency.
Features- Single Chip
- High efficiency
- Slim package
- 0.06W - 0.5W LEDs
- 6lm- 57lm in white and war white
- Dimensions (LxWxH): 3.0x1.4x0.52mm
- modules
- PCBs
- lmps and luminaries
- backlight
| SKU | 14067 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 3.0x1.4 mm |
| LED Family | Nichia 064SMD |
| Color Rendering Index | 75 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 5 |
| Forward Current Typ | 10ma |
| Forward Voltage Typ (V) | 2.6 |
| LED Power (W) | 0.03 |
| Forward Current Max | 30mA |
| Power Max. (W) | 0.1 |
| Product lifetime (h) | 50000 |
| Efficacy (lm per W) | 167 |
| Manufacturer Product Code | NHSW157BT SW5055-5088 P1d21-P3d22 K21-M11 R8000 |
| Brand | Nichia |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 0.30 |
| Dimensions: Width (mm) | 0.50 |
| Dimensions: Height (mm) | 0.14 |
