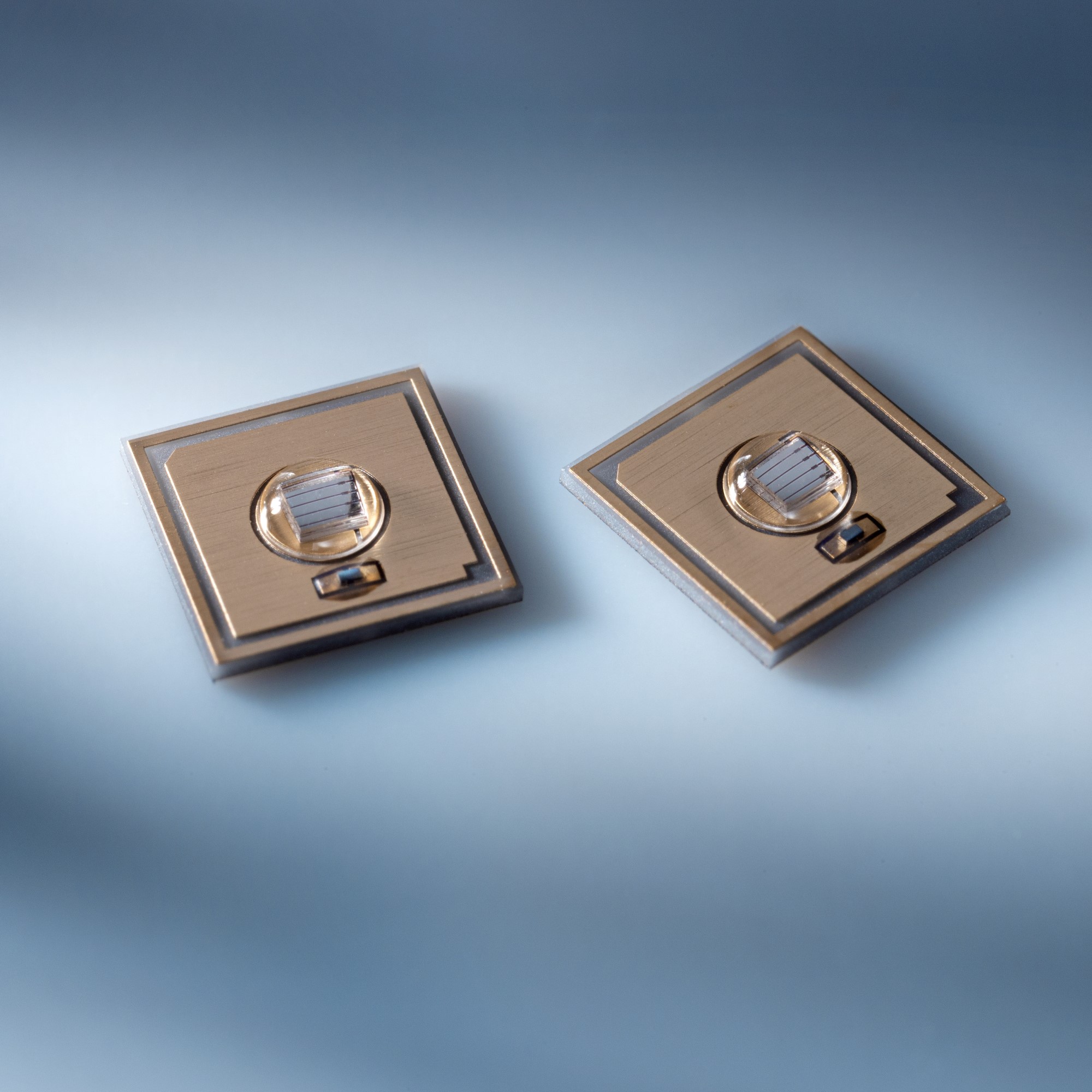

Bolb S6060 UVC SMD LED 275nm 100mW 2.45W

UV-C LED with the industry's highest efficiency

With an output of 100 mW, the S6060 High Power UV-C LED from US-based company Bolb currently has the industry's highest efficiency in energy conversion in the UV-C sector. The UV LED operates at a wavelength of 275 nm and is able to inactivate viruses, bacteria and other germs with an accuracy of up to 99.99999%. In addition, the S6060 convinces with an excellent price-performance ratio. This UVC LED is exclusively suitable for applications in the industrial sector, especially for disinfection or sterilisation.

Caution: Non-visible light. The LED poses a risk to the eye and skin even when exposed for a short time. Please seek advice on this product from our staff before purchasing!

Bolb Inc - A leading provider of deep UV LED solutions

Bolb Inc. is a U.S.-based manufacturer of high-power solid-state UVB/C lamps and ranks as a leading developer of the industry's most efficient UVC LEDs. Its technical expertise ranges from epitaxy to the manufacture of equipment and complete UV systems. Bolb's ultra-efficient LEDs are being integrated into a new generation of portable and home appliances, medical devices and industrial processing equipment, contributing to a healthier world.

Features of the Bolb S6060 UV-C LED

• High Power UVC LED
• 6060 series
• Wavelength: 275 nm
• Radiant UVC Power: 100 mW
• 350mA at 350mA, input power 2.45W
• Extremely high efficiency
• Inactivation rate of up to 99.99999%
• Excellent price-performance ratio
• Risk group 3 (EN 62471)
• LED dimensions (L x W x H): 6 x 6 x 1.35 mm

Application areas

• Disinfection (e.g. water)
• Sterilization (e.g. surfaces, air)

Warnings

• The article is a powerful UV-C LED which can be used for the disinfection of surfaces. It emits at a wavelength of 275 nm which is not visible to the human eye.
• It is imperative to ensure that users wear suitable protective clothing against UV radiation at all times. All skin and eye contact must be avoided.
• We recommend the use of the following protective agents:
  • Safety goggles
  • Gloves
  • Face Shield
  • Protective clothing that shields UV light from the skin
• Wear protective clothing at all times during use and ensure that no other persons are within reach of the radiation source without taking appropriate safety precautions.
• Light can reflect, therefore special precautions have to be taken with reflecting surfaces (e.g. mirrors).
• If skin tissue is exposed to the light source, skin irritation comparable to sunburn may occur. If necessary, treat the affected areas with a suitable cream or consult a physician.
• Low wavelength UV light can cause permanent damage to the retina in severe cases. Make sure to wear protective goggles at all times when using the device.
