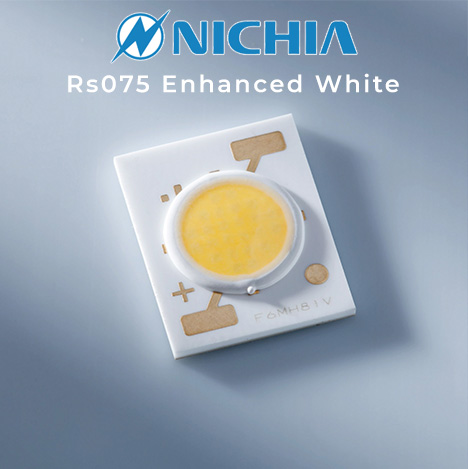

Nichia NVNWS007Z-V1 (Rs075) 15x12mm COB LED Enhanced White 3200K CRI90 1470lm
Nichia’s white LEDs are made up of blue die and yellow phosphor. There are many patterns of phosphor combinations and by using specific ones, Nichia has been developing and manufacturing various types of products (e.g. higher luminous flux, improved Ra or R9~R15).
A new pattern of phosphor combinations from Nichia for white LEDs now enables objects to appear more fresh and vivid, because of special color rendering options that are a different approach from color rendering index. Special color rendering focuses on how objects can appear, for example: meats appear more appetizing; vegetables, fruits, and flowers will look more natural, and fashion fabrics more vibrant. NICHIA now offers a new way to personalize the appearance of objects with LEDs.
The Rs075 white LEDs from Nichia produces a quality of light specifically intended to enhance whites. Through the use of phosphors only (no UV emission), this series maintains high efficiency and high CRI while reproducing vivid whites without a yellowing effect.effect.to produce vivid whites.
Technical details:
| SKU | NVNWS007Z-V1_(Rs075)_Ra90_3200K |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 15x12 mm |
| LED Family | Nichia Enhanced White Series |
| LED Installation Package | Chip on Board |
| Color | Warm White |
| Color Temperature | 3200K |
| Color Rendering Index | 90 |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 1470 |
| Forward Current Typ | 580ma |
| Forward Voltage Typ (V) | 20.6 |
| Power (W) | 11.95 |
| Efficacy (lm per W) | 124 |
| Manufacturer Product Code | NVNWS007Z-V1 (Rs075)_Ra90 |
| Brand | Nichia |
| Dimensions: Length (cm) | 15 |
| Dimensions: Width (mm) | 12 |
| Dimensions: Height (mm) | 2 |
