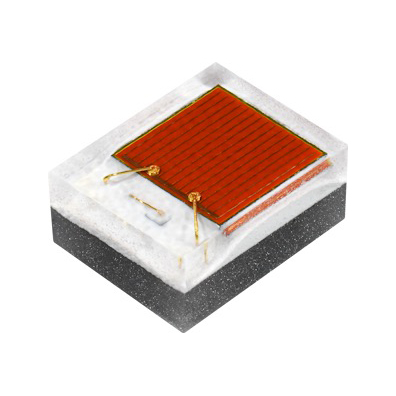

CREE XE-G LED XEGACY-H0-0000-000-000000T3001 Cyan Color Bin C30 Flux Bin T30 (Pack size:3000 LEDs)

Product Overview: XLamp® Element G (XE-G) LEDs are breakthrough solutions for color-mixing lighting applications that require high levels of light output and full control over the spectral content. XLamp XE-G LEDs are available in 17 different colors plus a complete portfolio of white options, giving lighting manufacturers unprecedented flexibility to change and optimize their product's light output properties. The new XE-G 2.05 x 1.6  mm footprint package includes an industry-leading combination of

Key Features:

• for LEDs
• in this size class, including a large isolated thermal pad, ESD
• protection and minimal spacing between the LED chip and the
• edge of the package.
• The XE-G platform is consistent across all colors in key LED
• design parameters, including package size, PCB footprint, anode/
• cathode orientation, optical source size, optical source location
• and ESD protection. This consistency makes it easy to reuse core
• design elements, such as PCBs and optics, across a wide range
• of designs.
• XLamp Element G (XE-G) LEDs are optimized for directional
• lighting applications that benefit from multi-color LED designs,
• including indoor directional, architectural, entertainment and
• aftermarket automotive.
• FEATURES
• Available in 70, 80, & 90 CRI white, violet, royal blue, blue,
• PC  blue, cyan, PC  cyan, green, PC  mint, PC  lime, PC  yellow,
• amber, PC amber, red-orange, PC red-orange, red, PC red, and
• photo red
• Maximum drive current: 3 A
• Reflow solderable - JEDEC J-STD-020C compatible
• Unlimited floor life at ≤ 30 °C/85% RH
• RoHS and REACH compliant
• UL® recognized component (E349212)
