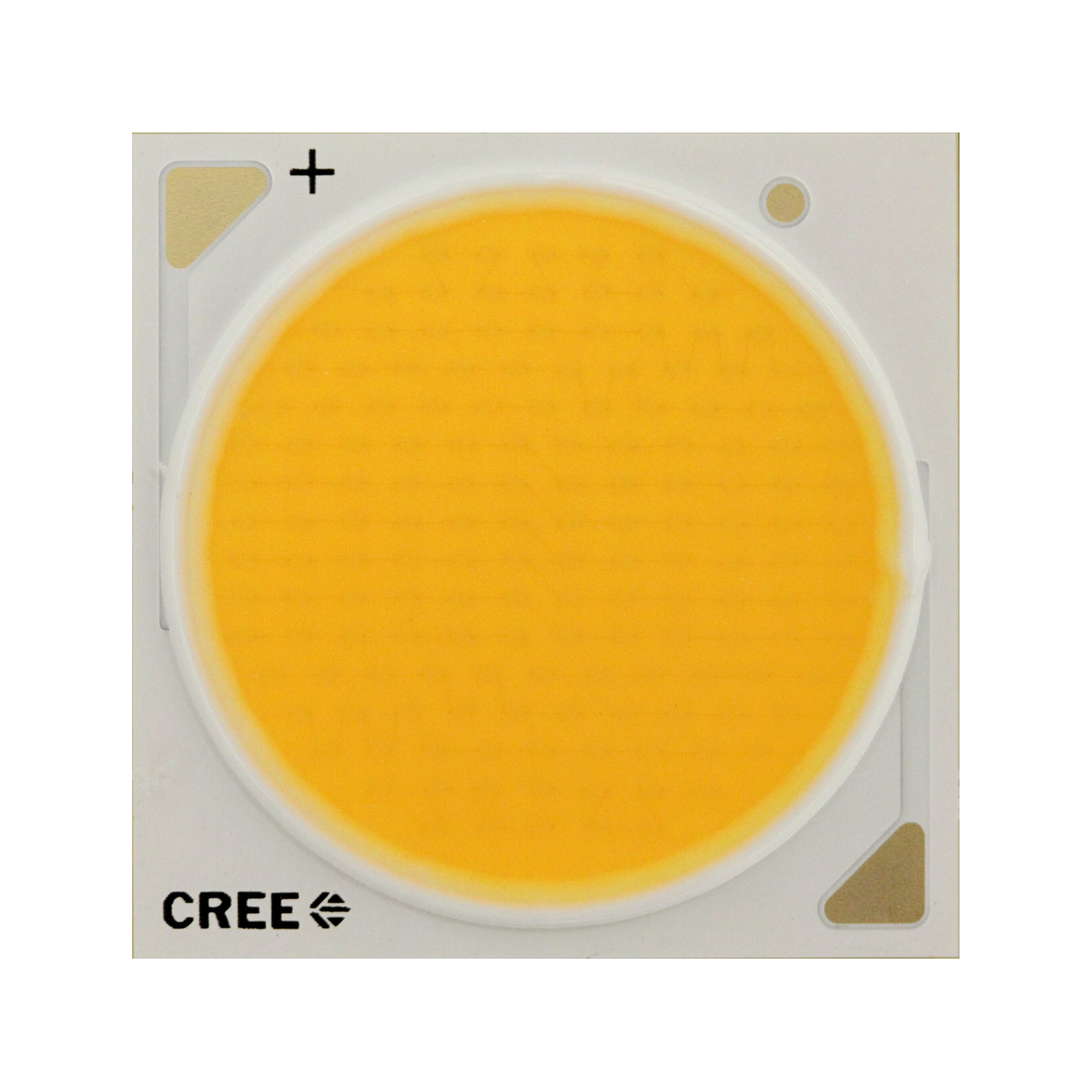

CREE CXA3590 LED CXA3590-0000-000RT0BD35G Warm White 3-Step Ellipse 3500K CRI80 11286lm

CREE CXA3590 LED - A high-performance LED in the CXA3590 family, designed for superior luminous efficacy, excellent thermal management, and consistent color output. The CXA3590 series is ideal for applications demanding high reliability and long operational lifespan.

The XLamp® CXA3590 LED family delivers an industry-leading combination of lumen density and efficacy in LES sizes as small as 3.3 mm. CXA3590 family LEDs offer 50% higher lumen density compared to the XLamp CMU series, improving beam angle and intensity. They are compatible with an ecosystem of holders and optics designed for high-intensity COBs, making them ideal for premium indoor and outdoor lighting applications, including track, spot, and downlight solutions.

Key Features:

• 3.3-mm optical source
• Available in 80-, 90-, and 95-minimum CRI options
• EasyWhite® 2- and 3-step binning
• Premium Color 2- and 3-step binning
• Forward voltage option: 21V class
• 85°C binning and characterization
• Maximum drive current: 300mA
• 114° viewing angle with a uniform chromaticity profile
• Top-side solder connections
• RoHS and REACH compliant
• UL® recognized component (E349212)

Product Specifications:

• SKU: CXA3590-0000-000RT0BD35G
• Chromaticity: 35G 35H
• Color: Warm White
• Kit Code: 35G
• Flux Code: BD
• Group Code: BD
