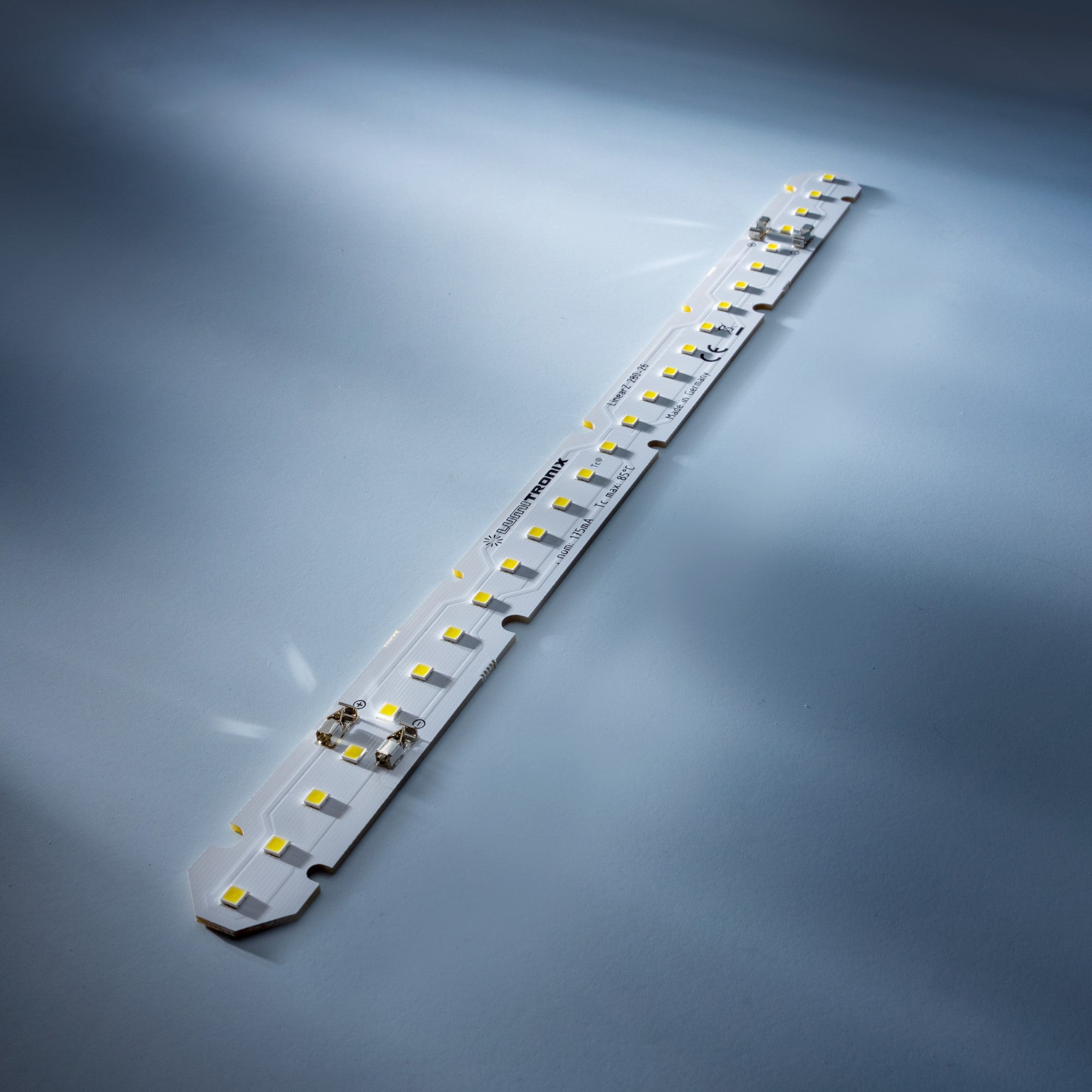

LumiBar-28-3095 Nichia H6 LED Strip Zhaga Cold White 7800K CRI90 1162lm 175mA 37.9V 6.63W 28cm
- Rigid LED strip for straight, mechanically stable light lines
- Luminous flux 1162 lm (4160 lm/m) at 7800K, CRI 90
- Power consumption 6.63 W at an efficacy of 175.3 lm/W
- 26 brand LEDs from Nichia
- Beam angle 120°
- Dimensions 280 x 20 x 1.6 mm
- Made in Germany with brand LEDs, automated placement and full electrical testing
- 3 years warranty
LumiBar-28-3095 Nichia H6 LED Strip Zhaga Cold White 7800K CRI90 1162lm 175mA 37.9V 6.63W 28cm
This product is a rigid LED strip from the LumiBar family, delivering 1162 lm at 7800K with CRI 90, 6.63 W of power consumption and an efficacy of 175.3 lm/W.
LumiBar strips are rigid boards with evenly spaced LEDs, made for linear luminaires where a straight, mechanically stable light line is needed. Compared with a flexible strip, a rigid board holds its position without a continuous carrier, spreads heat far better thanks to the thicker copper, and keeps the LED pitch exactly where the optical design put it. The strips can be connected end to end into long light lines.
This version follows the Zhaga book dimensions, so it is interchangeable with other Zhaga-compliant linear modules and fits directly into standard luminaire housings and profiles. Zhaga compatibility is what allows a luminaire to be serviced or upgraded years later without redesigning the mechanics.
This variant is equipped with the Nichia H6 LED series. H6 is Nichia's high-colour-rendering technology: the phosphor system is tuned to fill in the spectral gaps that ordinary white LEDs leave, which produces noticeably more natural skin tones and material colours. Combined with a high CRI rating this makes the strip a good choice for retail, museum, hospitality and studio lighting where the appearance of the illuminated object matters as much as the light level.
Why we build with Nichia LEDs
Nichia is a major Japanese LED manufacturer and one of the companies closely associated with the development and commercialisation of high-brightness blue and white LED technology. Its professional lighting LEDs are selected for well-documented optical and electrical characteristics, tight binning options and long-term characterisation. For a luminaire maker, that means the PCB, driver and thermal design can be built around defined forward-voltage, flux, colour and temperature limits instead of anonymous components whose behaviour may change from one batch to the next.
The LumiBar-28-3095 comes with a 3-year warranty. A warranty period of that length is only possible because the components, the thermal design and the production process are under our own control, and it gives you real investment security on a component that will be built into an installation.
Made in Germany – for reliable quality
This Lumistrips light engine is developed and manufactured at our production site in Germany. The PCB is assembled on controlled SMD equipment and the finished boards are visually inspected and electrically tested. We use specified, traceable LED components and defined production parameters so that current, voltage, light output and colour remain reproducible from batch to batch.
The difference from generic LED tape or anonymous modules is control of the complete light engine: copper layout, soldering quality, LED spacing, component selection and thermal path are defined together. That gives luminaire makers a more predictable component for continuous operation, easier qualification and repeat orders that behave like the original build.
Technical features
- 26 LEDs from Nichia (H6)
- Colour temperature: 7800K (Cold White)
- Colour rendering index: CRI 90
- Luminous flux: 1162 lm (typical)
- Luminous flux per metre: 4160 lm/m
- Power consumption: 6.63 W
- Luminous efficacy: 175.3 lm/W
- Operating point: 175 mA at 37.9 V
- Beam angle: 120°
- Board type: Rigid
- Dimensions: 280 x 20 x 1.6 mm
- Dimmable
- Rated lifetime: 60000 h
- Warranty: 3 years
- Weight: 30 g
- EAN: 4062986002474
Applications
- Linear luminaires and light lines
- Cove and indirect lighting
- Shelf, cabinet and display lighting
- Shop and commercial lighting
- Office and task lighting
- Architectural and decorative lighting
| SKU | 40489 |
|---|---|
| Weight brut (g) | 30.000000 |
| Color | Cold White |
| Color Temperature | 7800K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 4160 |
| Bright like (W) | 78 |
| Luminous Flux Typ (lm) | 1162 |
| Efficacy (lm per W) | 175.3 |
| Energy Class 2022 | A |
| Power (W) | 6.63 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 36 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 40489 |
| Product Family | Lumibar3098+ |
| Strip Type | Rigid |
| LEDs number per sales unit | 26 |
| Dimensions | 280 x 20 x 1.6 mm |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 1.6 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002474 |
| Forward Voltage Typ (V) | 37.9 |
