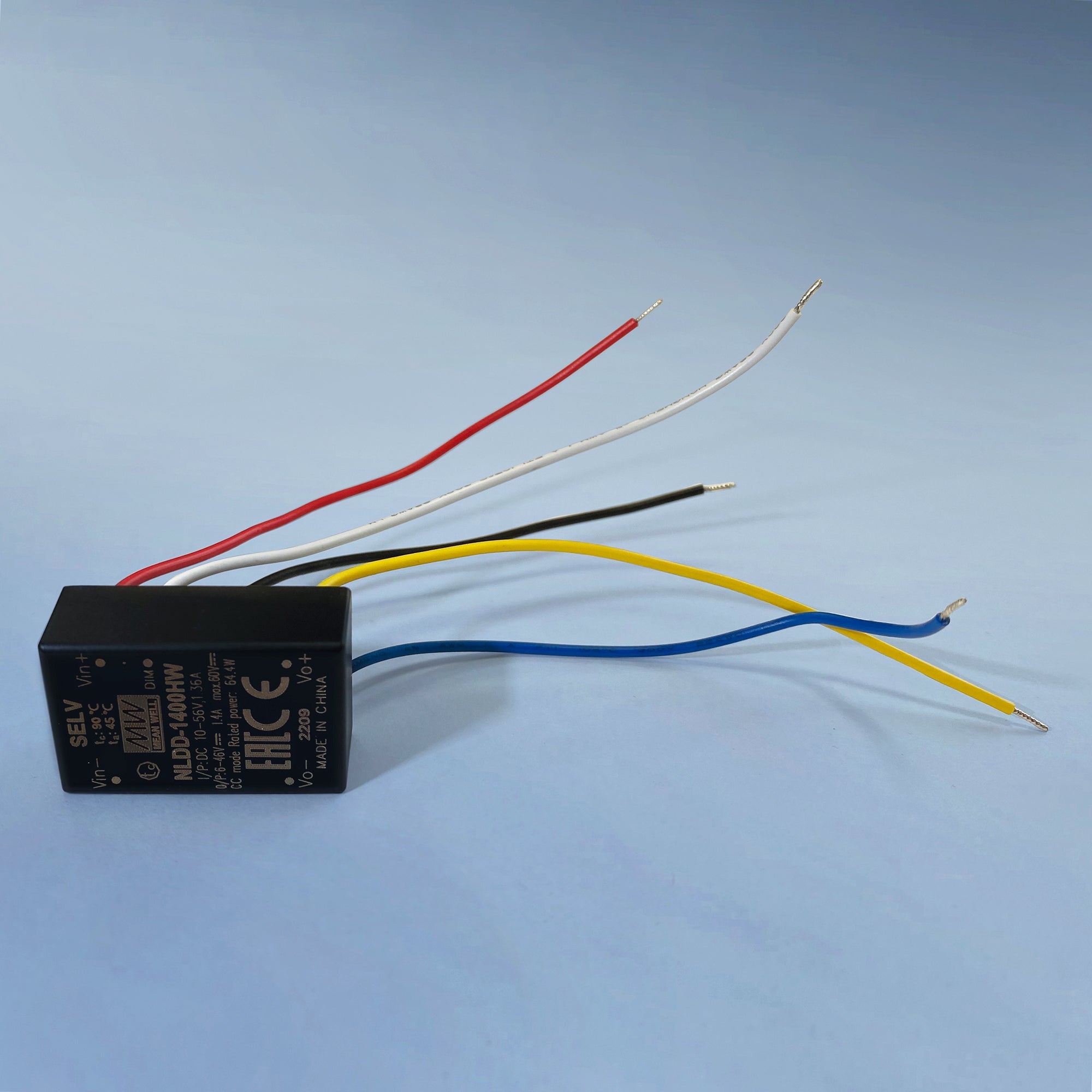

The Meanwell NLDD-1400HW is a compact constant current source with pre-assembled connection cables and integrated PWM function. The DC/DC step-down converter has short-circuit and temperature protection and is ideal for LED applications.
Reliable power supply at reasonable prices
The company Mean Well was founded in Taiwan in 1982 and is today one of the leading manufacturers of standard switching power supplies worldwide. The product portfolio now includes over 4500 switching power supplies, converters and chargers.
Mean Well is particularly well represented in the area of AC/DC power supply units. These convert AC voltage into DC voltage and thus enable the operation of electrical consumers in the power grid. However, Mean Well also offers numerous variations of LED drivers in the area of low-voltage consumers, which serve as power supplies for LED lighting of all kinds. The company name Mean Well was borrowed by founder Jerry Lin from his English dictionary and stands for the two words "mean well", which means "to have good intentions".
Features of the Meanwell constant current source NLDD-1400HW
DC/DC step-down converter
Output current: 1400 mA
Input voltage: 10 - 56 VDC (59 VDC max.)
Output voltage: 6 - 46 VDC
Output power: 64.4 W
High efficiency of up to 96 %
Conforms to BS EN/EN61347 and BS EN/EN55015 standards
Built-in PWM function and ON/OFF remote control
Protective functions: short circuit / overtemperature
