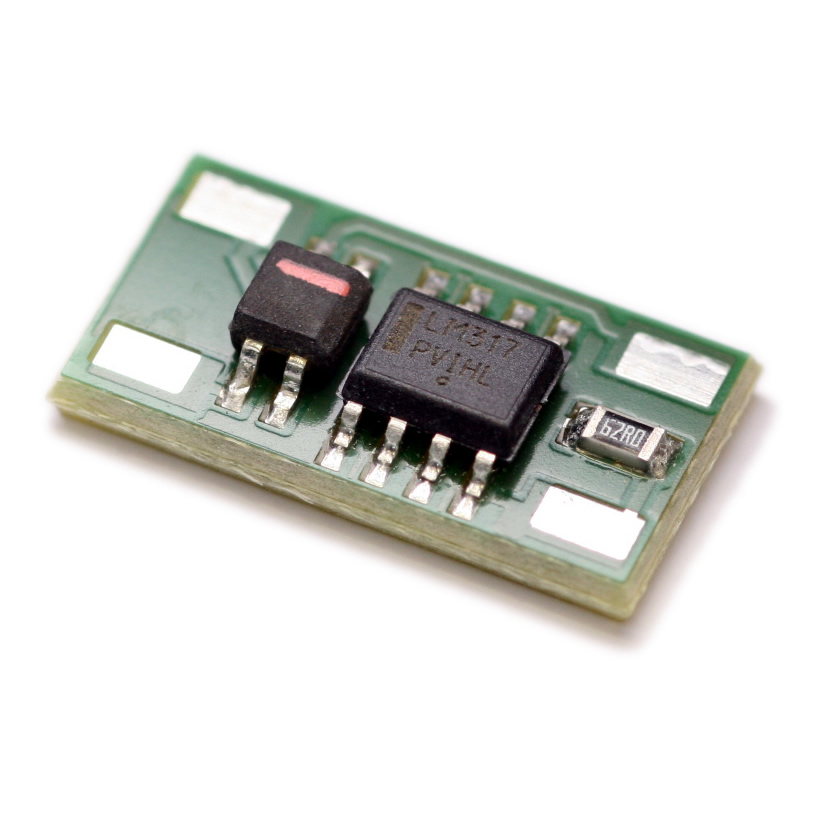

Constant Current LED Driver Lumitronix KSQ 50mA 6-35VDC to 7 > 37VDC

Constant Current LED Driver Lumitronix KSQ 50mA 6-35VDC to 7 > 37VDC

Constant Current LED Driver Lumitronix KSQ 50mA 6-35VDC to 7 > 37VDC
Constant Current LED Driver Lumitronix KSQ 50mA 6-35VDC to 7 > 37VDC

Constant Current LED Driver Lumitronix KSQ 50mA 6-35VDC to 7 > 37VDC

€1.69
Stock Germany >500 pcs
SKU
95031

Lumistrips is brand of high performance LED light solutions made in Germany. As part of the early success of LEDs we have extensive application knowledge from a wide range of sectors. Since 2010, we have developed and produced high quality LED strips & modules in a state-of-the-art production facility in Germany. Our LED strips and modules, internationally sold under the LUMISTRIPS brand, use original packaged LEDs from NICHIA, SEOUL SEMICONDUCTOR or SAMSUNG combined with the best PCB and circuit materials.

Our products have been used successfully in a wide range of applications by customers in Europe, North & South America, Asia, Australia.

Blog Posts (3)

Constant current supply with 1, 5, 20 or 50mA for simple operation of LEDs.

Constant current sources are particularly suited for the safe and professional operation of one or several LEDs. Especially for cases when the input-voltage is not constant (in cars or alternating current), constant current sources offer a comfortable possibility to connect LEDs directly to this current source without hassle.

technical data
  • minimum input voltage: 7VDC or 6VAC
  • maximum input voltage: 37VDC or 26VAC
  • power loss: max. 500mW at 20°C
  • output current: 1mA-50mA (depending on the selected type)
  • tolerance of output current: 2-5%
  • Measures: 17,0x9,4x3,5mm
  • operating temperature: -20°C to 60°C
Safety
  • thermal protection: should the constant current source become too hot, it automatically regulates the current downwards.
  • the input is polarised.
  • the output is voltage-proof and short circuit protected

The following amounts of LEDs can be connected in a row to the current source, depending on the input voltage:

07V = 1 LED | 12V = 2 LEDs | 14V = 3 LEDs | 18V = 4 LEDs | 21V = 5 LEDs
25V = 6 LEDs | 28V = 7 LEDs | 32V = 8 LEDs | 35V = 9 LEDs

Technical Data
SKU 95031
Weight brut (g) 20.000000
Driver Voltage Range (V) 7 to 37
Dimensions 17X9.4X3.5
Brand Lumistrips
Manufacturer Product Code bg
Product Family KSQ
Availability beyond shown stock: YES
Dimensions: Length (cm) 1.7
Dimensions: Width (mm) 9.4
Dimensions: Height (mm) 3.5
