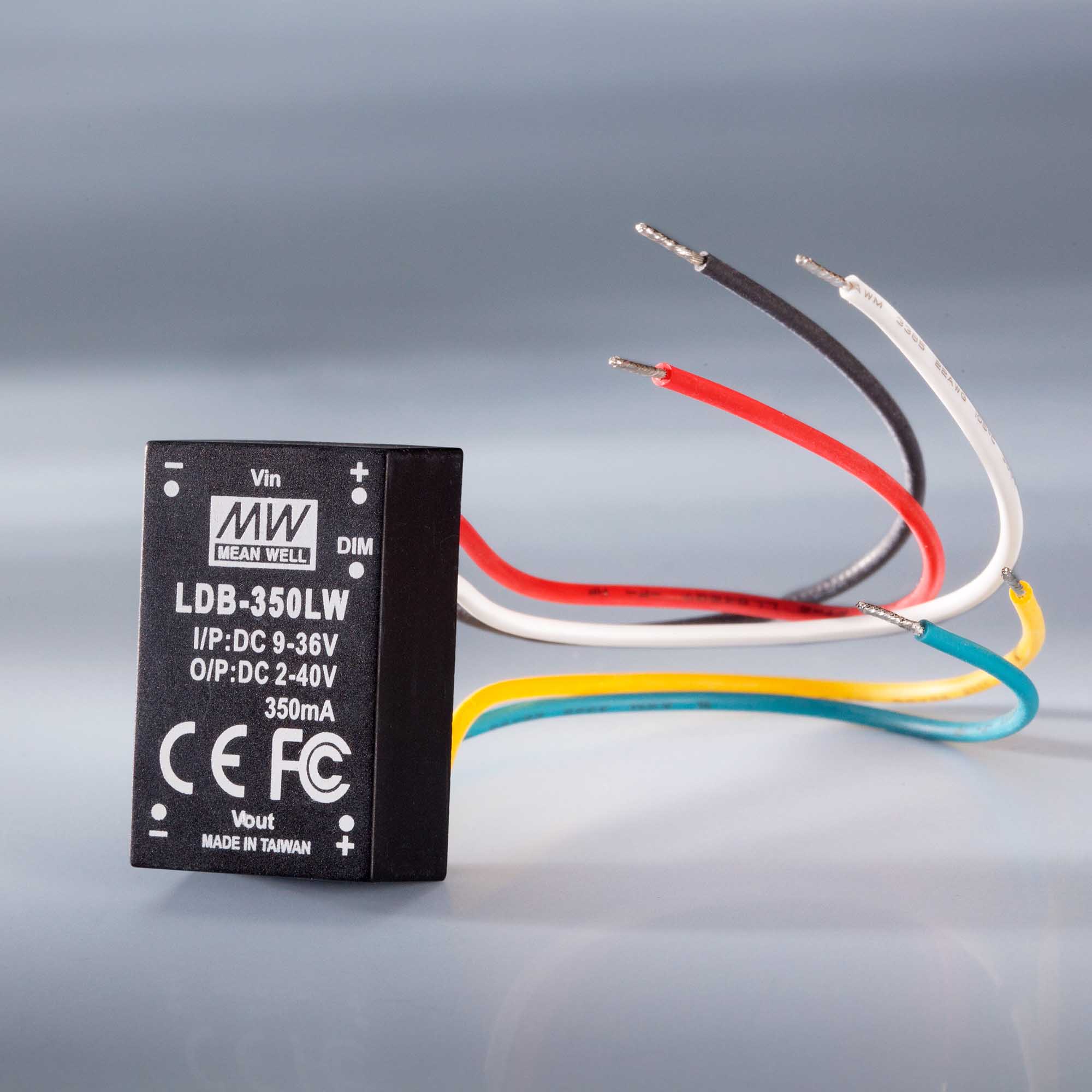

Constant current LED driver Mean Well LDB-LW-350 IP67 350mA 9-36VDC to 2 > 40VDC
€10.55
Ships in 3-6 weeks
SKU
95281
- Buy 5 for €7.36 each and save 30%
Constant current LED driver Mean Well LDB-LW-350 IP67 350mA 9-36VDC to 2 > 40VDC
Mean Well constant current LED driver for use with discreet LEDs (High Power, COB and so on) or strips that require 350mA current. The components must be connected in series so the voltage of the chain is in the interval 2 > 40 VDC. Compact size, dimensions (mm) 31.8*20.3*12.2mm .Features:
- DC-DC buck-boost converter
- Wide input voltage: 9 ~ 36VDC
- Protections: Short circuit / Over temperature
- Wide output LED string voltage: 2 ~ 40VDC
- High efficiency up to 91%
- Built-in EMI filter, comply with EN55015 and FCC part15 without additional input filter and capacitors
- Built-in PWM and remote ON/OFF control
- Cooling by free air convection
- Fully encapsulated with IP67 level
- Compact size
- Low cost, high reliability
- Suitable for driving illumination LED
- 3 years warranty
| SKU | 95281 |
|---|---|
| Weight brut (g) | 15.600000 |
| Output Current | 350mA |
| Driver Voltage Range (V) | 2 to 40 |
| Dimensions | 31.8x20.3x12.2mm |
| Manufacturer Part Number | 4021087026260 |
| Brand | Mean Well |
| Manufacturer Product Code | LDB-350LW |
| Product Family | LDB |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 3.18 |
| Dimensions: Width (mm) | 20.3 |
| Dimensions: Height (mm) | 12.2 |
