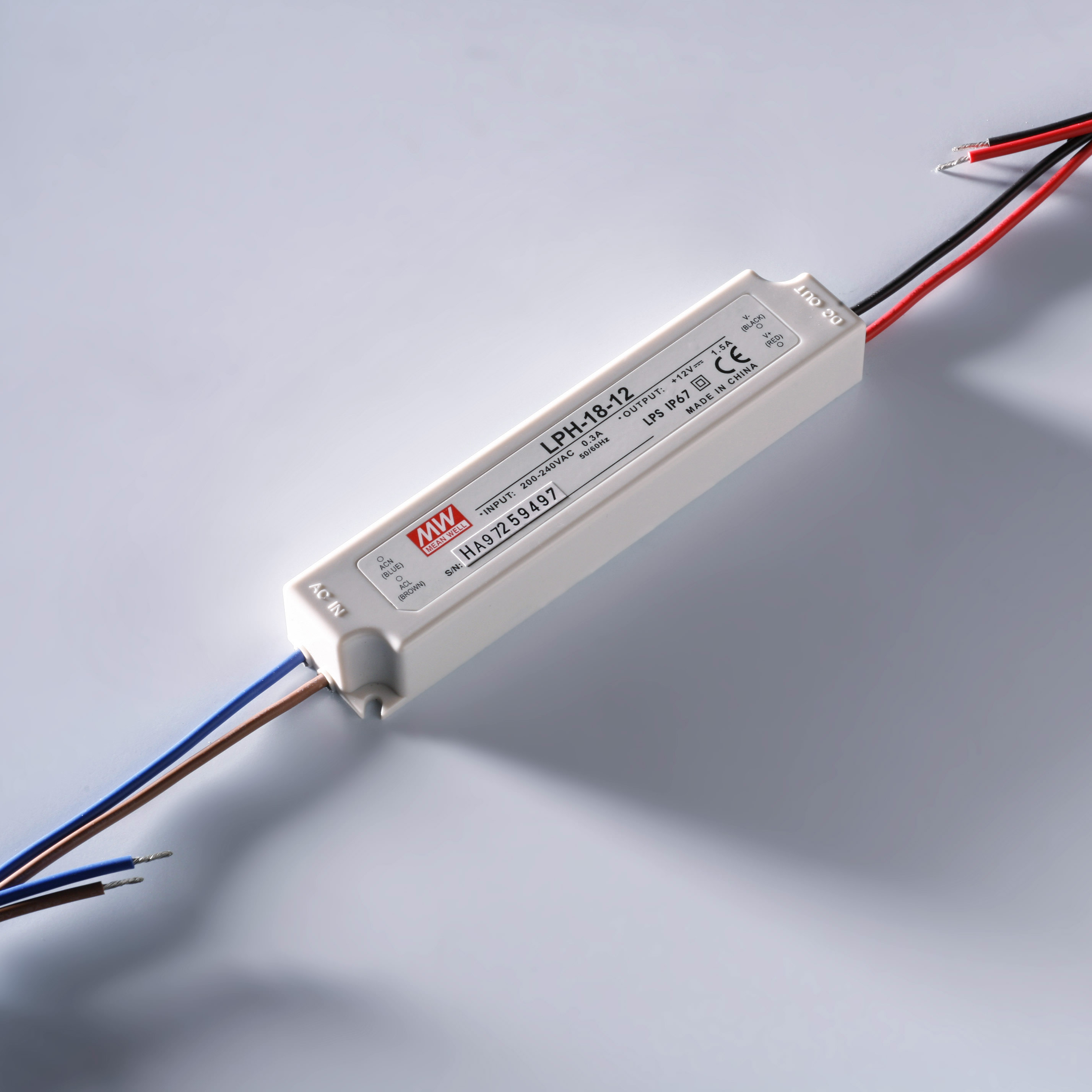

Constant Voltage Power Supply Mean Well LPH-18-12 IP67 230V to 12V 1.5A 18W

Name: Constant Voltage Power Supply Mean Well LPH-18-12 IP67 230V to 12V 1.5A 18W
Brand: Mean Well
SKU: 95055
Price: 8.4 EUR
Availability: InStock

Be the first to review this product

€8.40

Low Stock Germany, only 1 pcs.

SKU

95055

Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.

MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

Product Datasheets & Files

Constant Voltage Power Supply Mean Well LPH-18-12 IP67 230V to 12V 1.5A 18W

Mean Well constant voltage LED transformer for use with LED modules and strips that require 12VDC voltage. The components can be connected in parallel so the total power of the chain is max 1500mA or 18 W. Compact size, dimensions(mm): 140*30*22mm .

Features:

Constant Voltage
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
180~264VAC
Class 2 power unit
Isolation class II, no F.G.
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty

Technical Data
SKU	95055
Weight brut (g)	171.500000
Brand	Mean Well
Manufacturer Product Code	LPH-18-12
Output Current (Range)	max 1500mA
Transformer Output Voltage	12V
Power (W)	18
IP Protection	IP67
Dimmable	Not Dimmable
Dimensions	140x30x22mm
Dimensions: Length (cm)	14
Dimensions: Width (mm)	30
Dimensions: Height (mm)	20
Product Family	LPH
Availability beyond shown stock:	YES
