Constant Voltage Power Supply Mean Well LPV-35-12 IP67 230V to 12V 3A 36W

€20.63
Ships in 1-3 weeks
SKU
100127

Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.

MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

Blog Posts

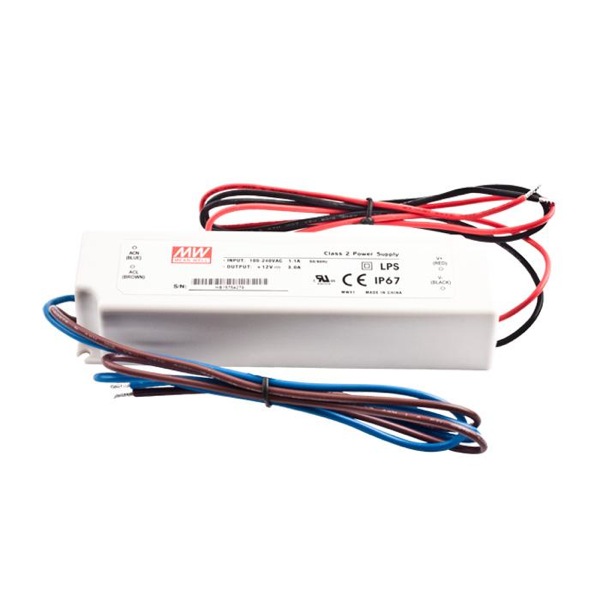

Constant Voltage Power Supply Mean Well LPV-35-12 IP67 230V to 12V 3A 36W

Mean Well constant voltage LED transformer for use with LED modules and strips that require 12VDC voltage. The components can be connected in parallel so the total power of the chain is max 3000mA or 36 W. Compact size, dimensions(mm): 48*40*30mm .

Features:
  • Constant Voltage
  • Fully encapsulated with IP67 level and slim case
  • Economical design
  • Protections: Short circuit/ Overload/ Over voltage
  • Universal AC input/ Full range (90~264VAC input )
  • Withstand 300VAC surge input for 5 seconds
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • Class 2 power unit
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty
Technical Data
SKU 100127
Weight brut (kg) 340.0000
Manufacturer Mean Well
Manufacturer Product Code LPV-35-12
Output Current (Range) max 3000mA
Output Voltage 12V
Power (W) 36
IP Protection IP67
Dimmable Not Dimmable
Dimensions 48x40x30mm
