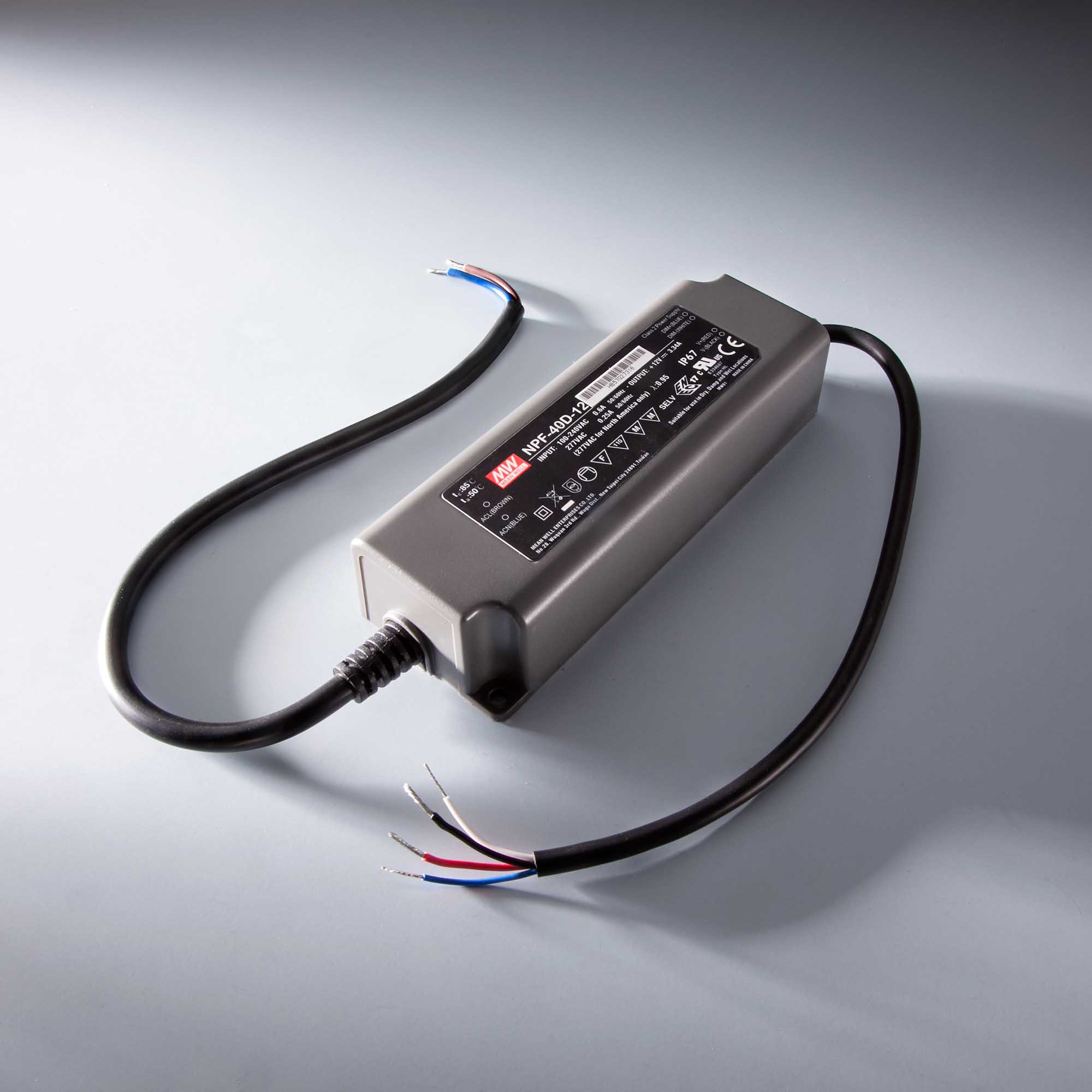

Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W

Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W

Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W
Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W

Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W

€70.11
Ships in 2-4 weeks
SKU
95309

Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.

MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

Blog Posts (4)

Constant Voltage Power Supply Mean Well NPF-90D-12 IP67 230V to 12V 7.5A 90W

Mean Well constant voltage LED transformer for use with LED modules and strips that require 12VDC voltage. The components can be connected in parallel so the total power of the chain is max 7500mA or 90 W. Compact size, dimensions(mm): 171*63*37.5mm.

Features:
  • Fully encapsulated with IP67 level
  • Protections: Short circuit/ Over Current/ Over voltage/ Over temperature
  • Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off )
  • 90~305VAC input, built-in active PFC function
  • High efficiency up to 90.5%
  • Cooling by free air convection
  • Built-in active PFC function
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Suitable for dry, damp, wet location
  • No load power consumption <0.15W
  • 5 years warranty
Technical Data
SKU 95309
Weight brut (g) 770.000000
Brand Mean Well
Manufacturer Product Code NPF-90D-12
Output Current (Range) max 7500mA
Transformer Output Voltage 12V
Power (W) 90
IP Protection IP67
Dimmable Dimmable
Dimensions 171x63x37.5mm
Dimensions: Length (cm) 17.1
Dimensions: Width (mm) 63
Dimensions: Height (mm) 67.5
Product Family NPF
Availability beyond shown stock: YES
