Constant Current Source ERP Power PSB50E-1200-42-T 230V to 28 >42VDC 600>1200mA

€67.02
Stock Germany >100 pcs
SKU
32476

Official distributor of ERP Power products

We are the official distributor of the compact and powerful LED drivers and power supplies of the Californian technology company ERP Power. Distribution includes Germany, Austria, Switzerland, the Netherlands, France and Belgium.

Extremely high power density in the smallest space

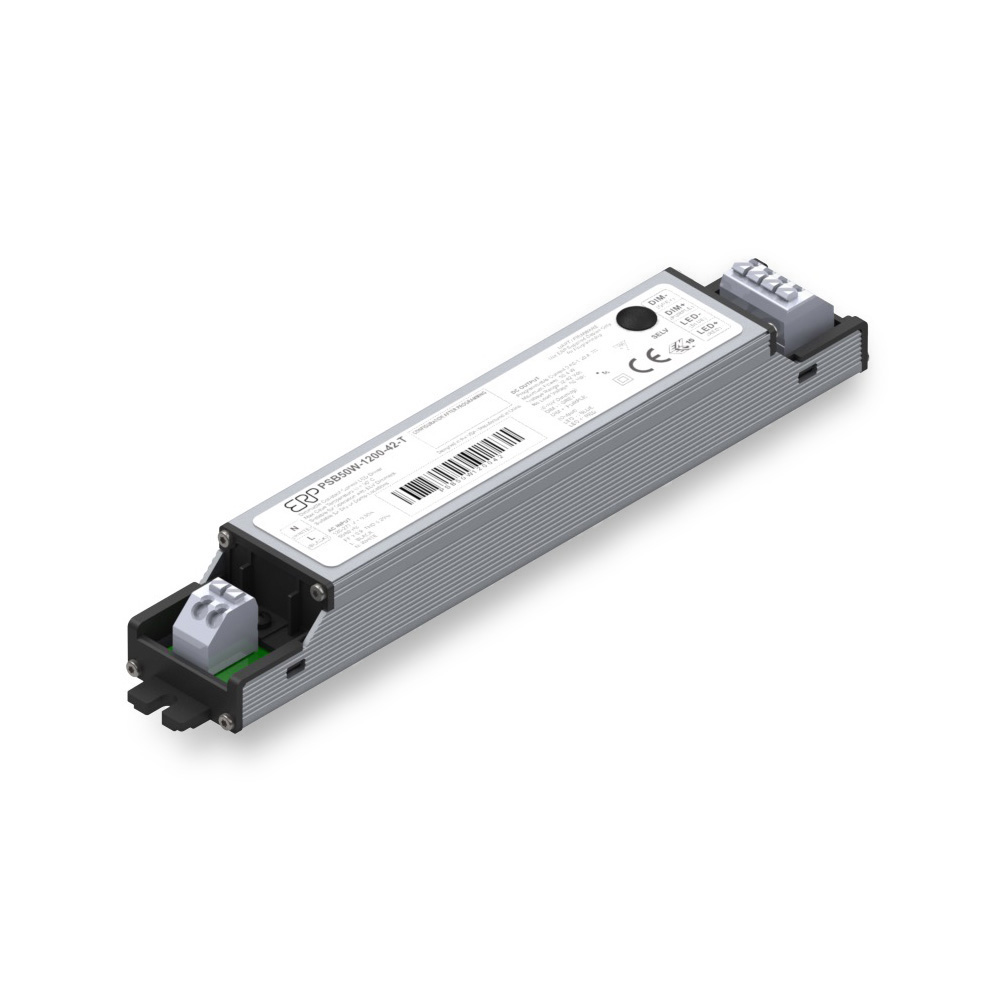

The constant current source PSB50E-1200-42-T from the Californian engineering company ERP Power convinces with its extremely compact design of approx. 15 x 3 x 2 cm, which allows it to be installed without problems even in the smallest installation spaces. Furthermore, it offers a very high power density.

The power source of device class 2 has a robust metal housing with silicone closure (IP20), which allows operation up to a maximum temperature of 90°C. At an average operating temperature of 70°C, the lifetime of the ERP power source is at least 50,000 hours. The connection is made via terminals.

But that's not all. The triple dimming function (TRIAC, ELV and 0-10 V) ensures individual dimming scenarios. Dimming can be carried out on the input side via phase lead and phase cut-off dimmers as well as via the 0 - 10 V interface.

A really impressive constant current source for LEDs, which is particularly convincing due to its high power density and very small size. You will find further constant current sources as well as constant voltage sources from ERP Power in our product range.

Note: The constant current source is set to the lowest output current (600 mA) as standard on delivery. However, you can change the current to the maximum value (1200 mA) using the software specially developed by ERP and the programming cable (Art. no.: 33760) also available here in the shop. You can download the software under the following link: https://erp.sharefile.com/d-se7af6bb67fe40928

ERP Power - Quality and Reliability

ERP Power was founded in 2004. Since then, the company has been developing and producing highly efficient control gear for LED lighting in a very compact design. The smaller design means that the development of housings for luminaires is no longer dominated by the size of the control gear, thus opening up new degrees of freedom. ERP Power offers products that are certified according to the current standards. Further developments are aimed at wired or wireless communication. ERP Power is based in Moorpark, California, USA and has ISO9001 certified production.

Features of the constant current source PSB50E-0850-56-T

  • Output voltage: max. 42 V
  • Input voltage: 220 - 240 V
  • Power: 50.4 W
  • Output current: 600 - 1200 mA
  • Service life: min. 50,000 h
  • Triple dimming function (Tri-Mode Dimming™): TRIAC, ELV and 0-10 V
  • Protection class: IP20
  • Dimensions: 146.9 x 26.2 x 21.85 mm
Technical Data
SKU 32476
Weight brut (kg) 0.0500
Output Current (Range) 600 to 1200mA
Dimmable Dimmable
Manufacturer ERP Power
Manufacturer Product Code 4260127456982
Availability beyond shown stock: YES
Dimensions: Length (cm) 15.8
Dimensions: Width 2.625
Dimensions: Height 2.185
