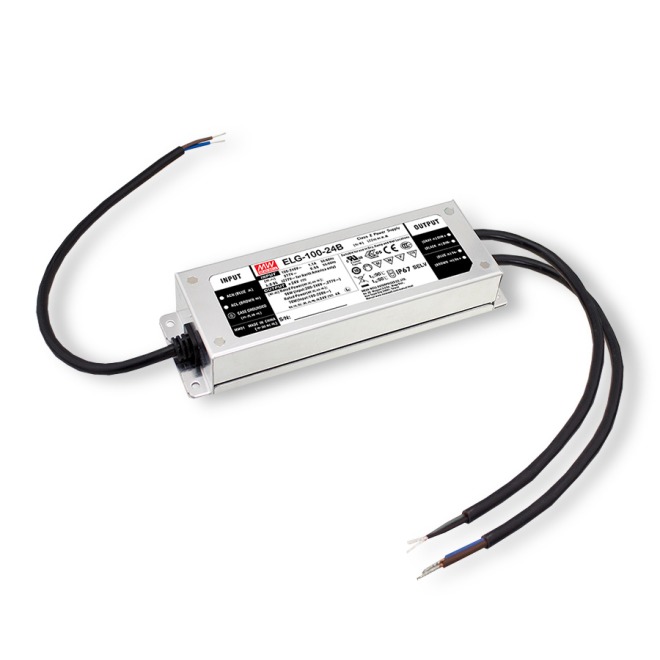

Meanwell ELG-100-24V-DA Power Supply Unit
€52.03
Stock Germany >10 pcs
SKU
32338
The ELG-100 power supply from Meanwell supports the operation of both constant current and constant voltage. The power supply has a power of 100 W and an output voltage of 24 V. Thanks to the high efficiency of up to 91% and the fanless design, the ELG-100 can be operated at a housing temperature of -40 °C to +90 °C under open-air convection.
The metal housing design and IP67/IP65 protection rating make the power supply suitable for both indoor and outdoor applications. The ELG-100 is equipped with various functional options, such as several dimming methods, to ensure optimum design freedom for LED lighting systems.
Features
- Constant voltage and constant current mode output
- Metal housing design with functional ground
- Built-in active PFC function
- Class 2 power unit
- Standby power consumption < 0.5W
- IP67/IP65 rating for indoor and outdoor installations
- Function options: output adjustable potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime> 50000 hours
- 5 years warranty
Applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
| SKU | 32338 |
|---|---|
| Weight brut (g) | 850.000000 |
| Driver Voltage Range (V) | 12 to 24 |
| Output Current (Range) | 2000 to 4000mA |
| Dimmable | Dimmable |
| Manufacturer Part Number | 4021087038621 |
| Brand | Mean Well |
| Manufacturer Product Code | ELG-100-24V-DA-3Y |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 19.9 |
| Dimensions: Width (mm) | 63 |
| Dimensions: Height (mm) | 35.5 |
