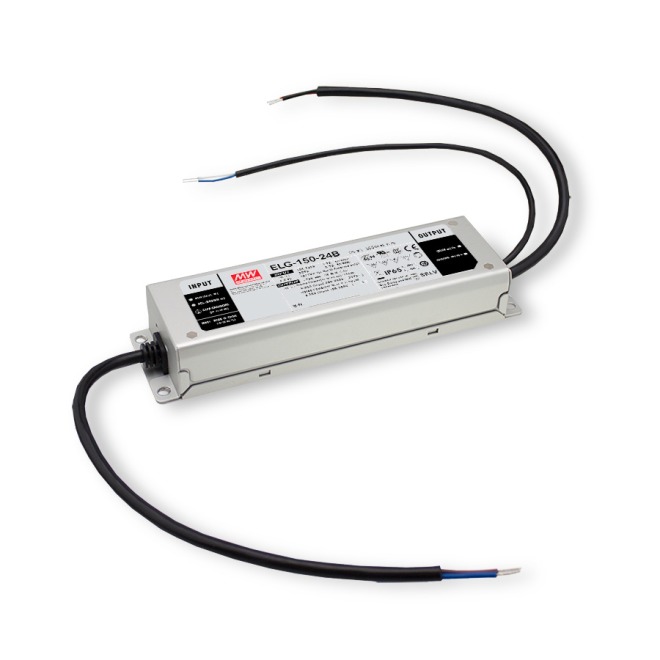

Meanwell ELG-150-24V-DA Power Supply Unit

Meanwell ELG-150-24V-DA Power Supply Unit

Meanwell ELG-150-24V-DA Power Supply Unit
Meanwell ELG-150-24V-DA Power Supply Unit

Meanwell ELG-150-24V-DA Power Supply Unit

€56.26
Ships in 2-4 weeks
SKU
32339

Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.

MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

Blog Posts (3)

The ELG-100 power supply from Meanwell supports the operation of both constant current and constant voltage. The power supply has a power of 150 W and an output voltage of 24 V. Thanks to the high efficiency of up to 91% and the fanless design, the ELG-100 can be operated at a housing temperature of -40 °C to +90 °C under open-air convection.

The metal housing design and IP67/IP65 protection rating make the power supply suitable for both indoor and outdoor applications. The ELG-100 is equipped with various functional options, such as several dimming methods, to ensure optimum design freedom for LED lighting systems.

Features

  • Constant voltage and constant current mode output
  • Metal housing design with functional ground
  • Built-in active PFC function
  • Class 2 power unit
  • Standby power consumption < 0.5W
  • IP67/IP65 rating for indoor and outdoor installations
  • Function options: output adjustable potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime> 50000 hours
  • 5 years warranty

Applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
Technical Data
SKU 32339
Weight brut (g) 950.000000
Driver Voltage Range (V) 33 to 39
Output Current (Range) 1330 to 2660mA
Dimmable Dimmable
Brand Mean Well
Manufacturer Product Code ELG-150-24V-DA-3Y
Availability beyond shown stock: YES
Dimensions: Length (cm) 21.9
Dimensions: Width (mm) 63
Dimensions: Height (mm) 35.5
