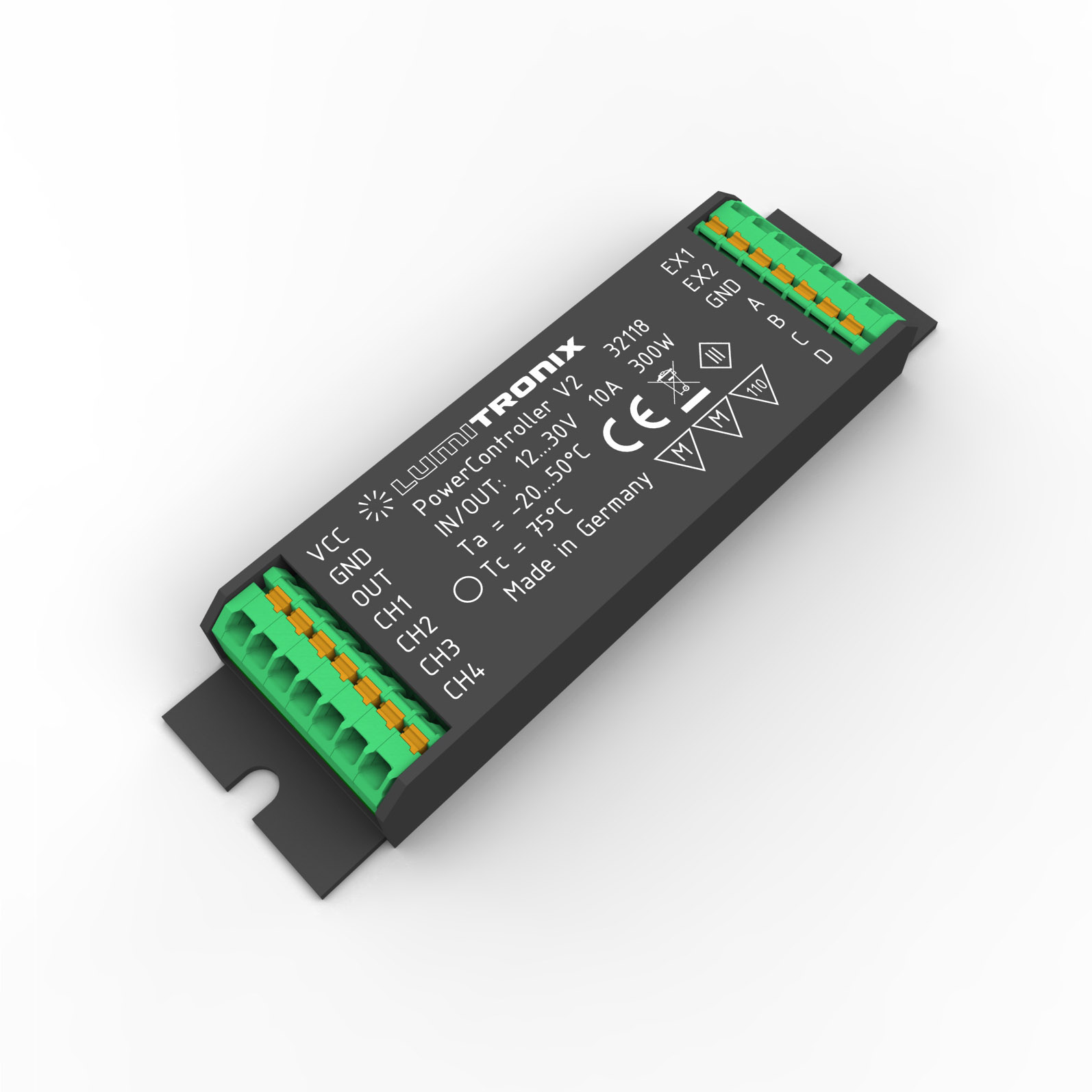

PowerController V2 Light Control Unit 1- 4 control channels for Tunable White, RGBW or single color for 10-30VDC up to 300W

Compact control unit for numerous lighting applications

The PowerController V2 is a powerful control unit for Tunable-White, Dim2Warm or colour changes. It offers a wide range of possibilities with a minimum size of only 100 x 29 x 13 mm.

Four input channels (two active and two passive) allow the connection of buttons, dimmers, potentiometers or sensors, while four output channels provide a great deal of flexibility when implementing a wide variety of lighting scenarios.

This means that the PowerController V2 can be used as a single-channel control unit, dual-channel control unit, three-channel control unit or four-channel control unit.

Pre-installed standard configuration and other variants

We offer the PowerController V2 in the standard configuration 4x buttons and 2x tunable white. Further configurations are also available as free downloads:

• Input: 4x buttons - Output: 4x LED modules, single colours
• Input: 4x potentiometer - Output: 4x LED modules, single colours
• Input: 2x buttons 2x potentiometers - Output: 2x LED modules Tunable White
• Input: 2x buttons 2x potentiometers - Output: 2x LED modules Tunable White (dim to warm)
• Input: 2x buttons 2x potentiometers - Output: 1x LED module RGBW

An overview and detailed instructions can be found in the download area under “Operating Instructions PowerController V2“. The standard configurations are available for free download here:

With the programming adapter (Art. 32480) these configurations can be loaded onto the PowerController. You can use the Dimmer Potentiometer 17mm, 100 kOhm (Art. 95181) for dimm control of each channel.

Easy installation due to minimum size

The slim format allows installation in almost any type of luminaire, also due to the practical terminals. A total of up to 10 A can be switched via the outputs. The PowerController V2 allows the control of constant voltage LED modules.

Control of multiple constant current LED modules is also possible

The Powercontroller V2 unit is compatible with the new extension constant current LED driver, article number 34722. With this driver you can control up to 4 groups of lightsources at a constant current of 1-1500mA and 4-42 V, such our LinearZ LED modules.

Features

• Up to four analog signal sources can be freely configured: button, switch, 0-10 V, 1-10 V, NTC, potentiometer, LDR
• Two analog signal sources can also be used with active sensors, e.g.: motion sensor, brightness sensor, capacitive button or infrared sensor
• Four output channels (e.g. 2x Tunable-White / 1x RGBW / 4 single colours)
• Up to 10 A can be switched via the output channels (1x 10 A / 2x 5 A)
• For controlling constant voltage LED modules (output voltage from 12 - 30 V)
• Input voltage depending on LED module (12 - 30 V)
• Output power: 120 W at 12 V DC; 240 W at 24 V DC; 300 W at 30 V DC
• The compact design with 13 mm height and 29 mm width allows installation in almost any luminaire. The practical clamps allow easy and quick installation.
• Ideally suited for controlling the following Tunable-White, Dim2Warm and RGBW products: LumiFlex, SlimFlex, BackMatrix and SmartArray 24 V
• Ideal for controlling all types of luminaires with “Tunable White“ LED modules, e.g. ceiling luminaires, industrial luminaires, floor luminaires, wall luminaires, pendant luminaires
