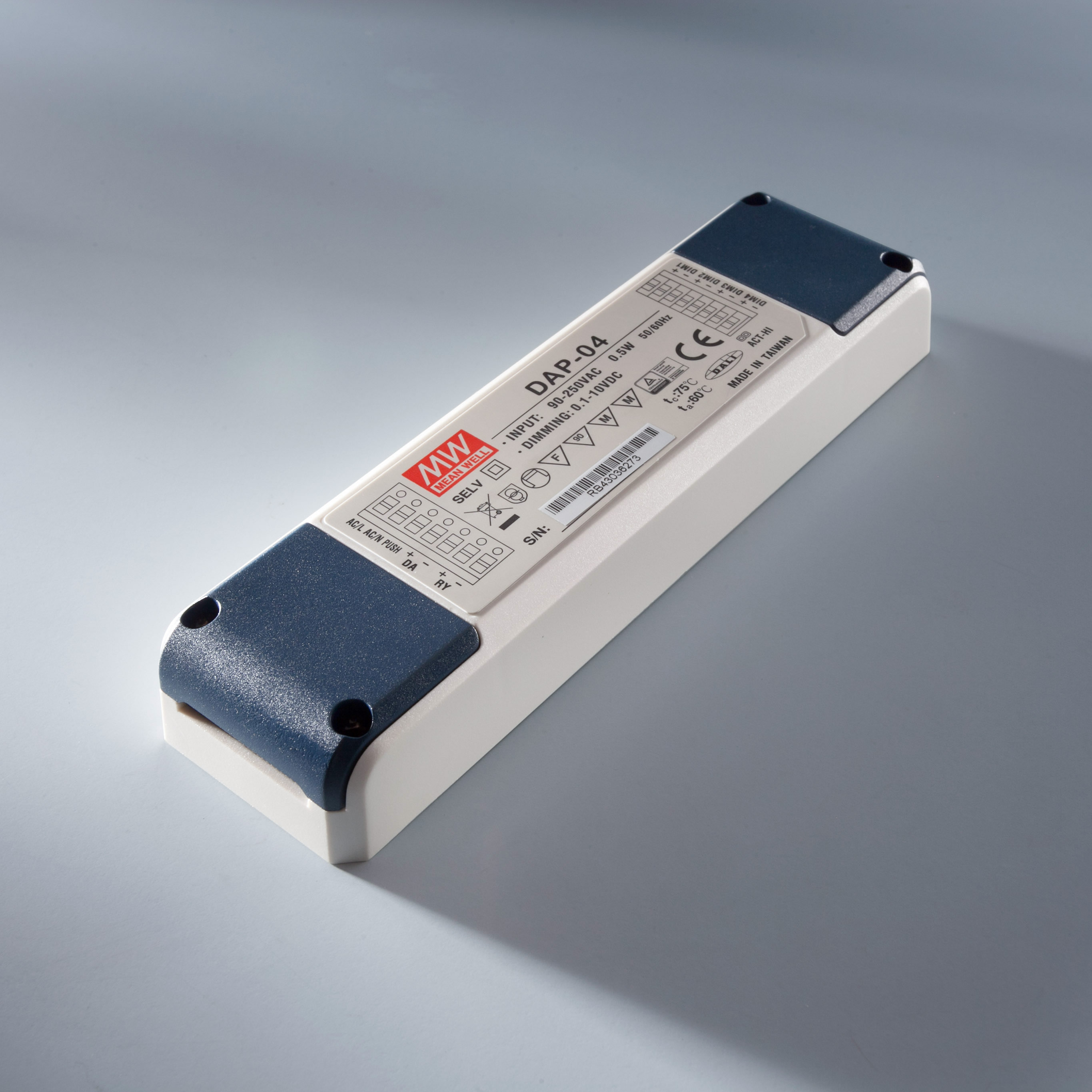

Signal Converter Meanwell DAP-04 DALI to PWM

Name: Signal Converter Meanwell DAP-04 DALI to PWM
Brand: Mean Well
SKU: 95159
Price: 33.24 EUR
Availability: InStock

Be the first to review this product

€33.24

Low Stock Germany, only 5 pcs.

SKU

95159

Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.

MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

Product Datasheets & Files

Signal Converter Meanwell DAP-04 DALI to PWM

Convert DALI signal to PWM signal
4 DALI addressable output channels
Built-in push dim function
Universal AC input (up to 305VAC)
Dimming range: 1~100%
Meet DALI standards (IEC62386-101,102,207)
PWM active high or active low selectable
Linear or logarithm dimming curve selectable (meet IEC62386-207)
Built-in relay for ON/OFF control of LED PSU
Fully isolated plastic case
Class II power unit, no FG
No load power consumption<0.5W
Suitable to use along with MEAN WELL's AC/DC LED PSU which have 3-in-1 dimming function
3 years warranty

Technical Data
SKU	95159
Weight brut (g)	160.000000
Brand	Mean Well
Manufacturer Product Code	DAP-04
IP Protection	IP20
Dimensions	165x46x23mm
Dimensions: Length (cm)	16.5
Dimensions: Width (mm)	46
Dimensions: Height (mm)	23
Product Family	DAP
Availability beyond shown stock:	YES
