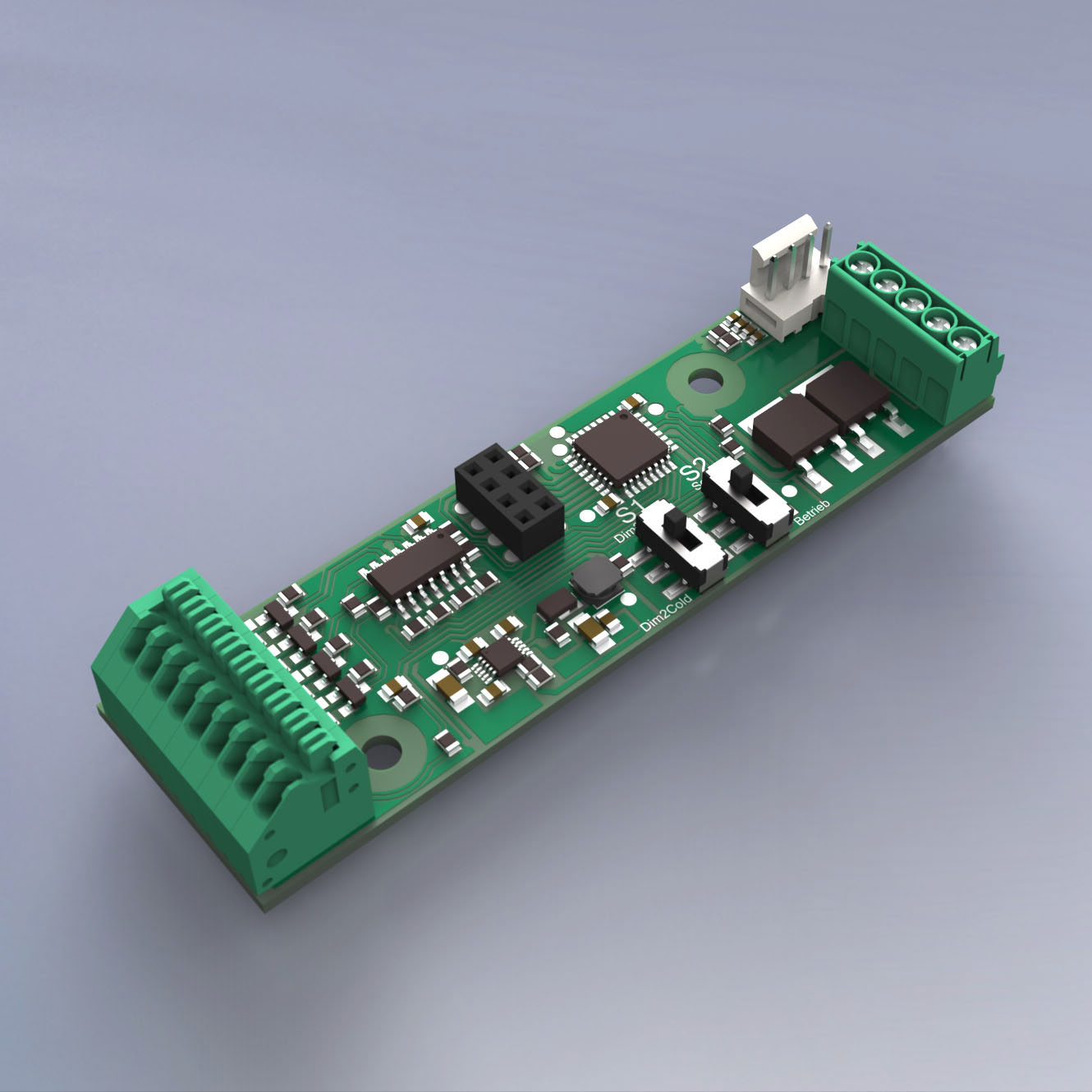

Tunable White control unit with dimming and 2 Special Dimming modes

€66.56
Stock Germany >100 pcs
SKU
51161

We are a specialist of high performance LED light solutions. As part of the early success of LEDs we have extensive application knowledge from a wide range of sectors. Since 2010, we have developed and produced NICHIA LED modules in a state-of-the-art production facility in Germany. These modules have been used successfully in a wide range of application and developed specifically to meet customer specifications.

Our range of Lumego LED panels combine the performance of Nichia LEDs, with the well known quality of German Design and reliable manufacturing in Europe.

Blog Posts
Ledrise PowerController - The multifunctional dimmer with immense power reserves

Pure flexibility and power! With the PowerController, Ledrise demonstrates the versatile options that can be packed into such a small control unit for “Tunable White”. Any desired lighting scenario can be easily realised using the two separately adjustable universal inputs, one for brightness and one for colour temperature. The high current rating and output also enable the PowerController applications in the industrial light fixture sector. Furthermore, with the input for brightness sensors and motion detectors, brightness dependent and motion dependent lighting situations can be realised. The PowerController from Ledrise is the first choice for all common “Tunable White” modules or "Tunable White" light fixtures.

Features
  • ”Tunable White” control unit with dimming function and DIM2Warm/Dim2Cold mode
  • For controlling constant voltage LED modules (output voltage 12-30V)
  • Input voltage dependent on the LED module (12-30V)
  • Compact dimensions: 89x26x17mm
  • High current rating of up to 5A
  • High output of up to 150W (for 30V)
  • Very low stand-by output of <100mW across the entire voltage range
  • Dim2Warm/Dim2Cold can be activated via the cable bridge (standard mode: Tunable White)
    1. Dim2Warm: Dimming down results in a warmer colour temperature, e.g. cosy atmosphere in the living room
    2. Dim2Cold: Dimming down results in a cooler colour temperature
    3. The maximum colour temperature (Dim2Warm) or minimum colour temperature (Dim2Cold) can be selected freely
  • Memory function: The brightness and colour temperature levels even remain stored in the case of power failure and when the power returns
  • Two separately adjustable universal inputs for push buttons, potentiometer, 1-10V interface or 0-10V interface:
    1. Input 1: To control brightness
    2. Input 2: To control colour temperature
  • Separate input or connection for external sensors (brightness sensor, motion detector)
  • Drill holes for M3 screws for easy attachment
  • Ideal for controlling all kinds of light fixtures with “Tunable White” LED modules, e. g. ceiling lamps, industrial lights, floor lamps, wall lamps, pendant lamps
  • Excellently suitable for controlling the following Ledrise “Tunable White” products: LumiFlex, SlimFlex, BackMatrix and SmartArray 24V
Technical Data
SKU 51161
Weight brut (kg) 0.0200
Manufacturer Ledrise
Manufacturer Product Code 51161
Availability beyond shown stock: NO
