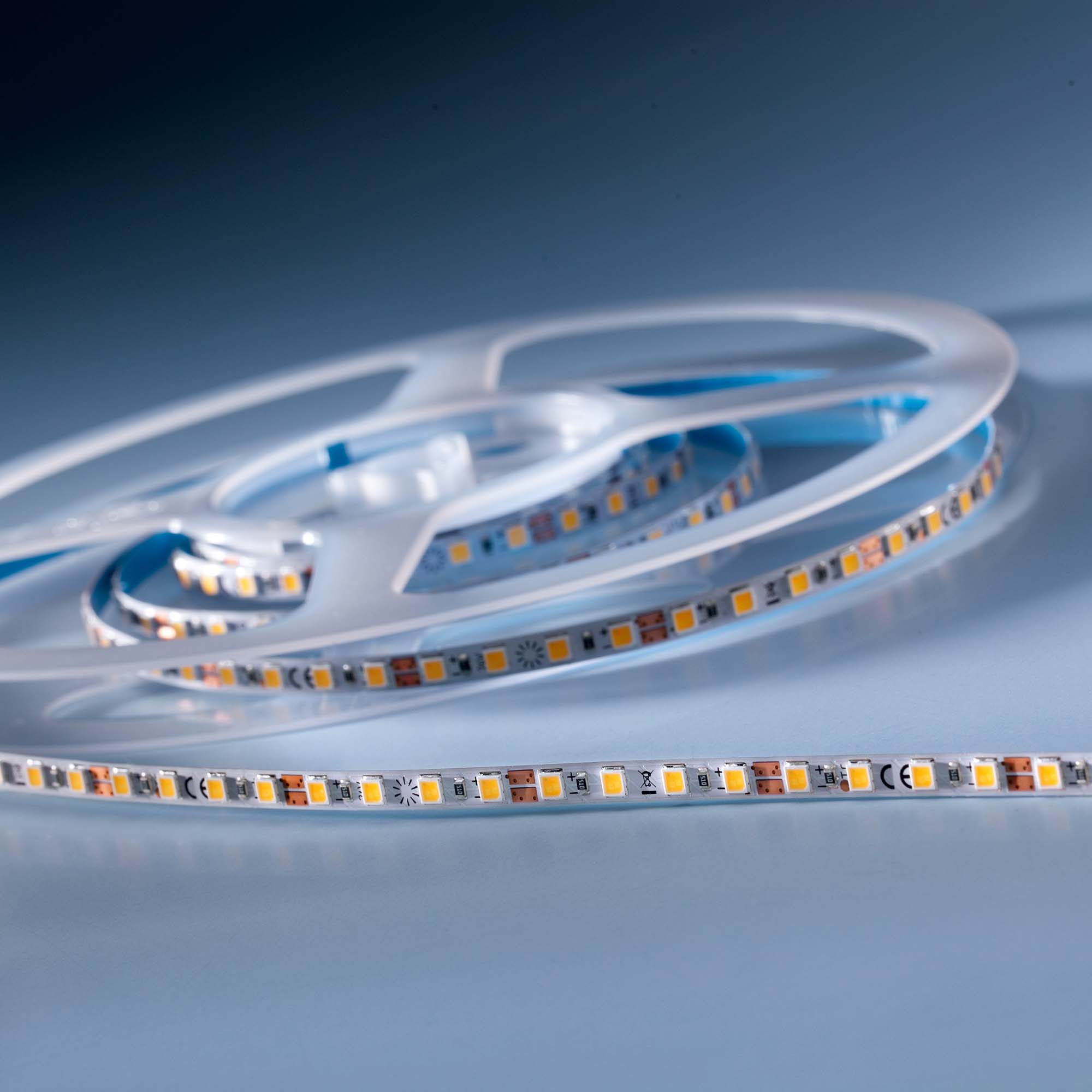

SlimFlex3090 Nichia LED Strip 5mm wide pure white CRI90 4000K 4240lm 24V 120 LEDs/m 2m reel (2120lm/m 18W/m )

SlimFlex3090 Nichia Ultra-Slim CRI90 LED Strip Pure White 4000K, Only 5 mm Wide

The SlimFlex3090 4000K brings high-performance light to places where standard LED strips do not fit. With a width of only 5 mm and a height of 1.1 mm, it fits into very narrow aluminum profiles, slim linear luminaires, shelf edges, furniture joints and narrow coves. It is equipped with 240 Nichia 757 series mid-power LEDs on a 2 m reel (120 per meter), which deliver 2120 lm per meter, 4240 lm per reel, with an efficacy of 118 lm/W: a lot of light from a single, very narrow strip.

With a color rendering index above 90, colors, materials and skin tones look natural, and the 4000K light color creates a clean, focused pure white light that supports concentration and alertness, ideal for offices, shops, kitchens, studies, medical practices and display cases. Nichia binning to a 3-step MacAdam ellipse ensures consistent pure white light, and the strip can be cut every 33.3 mm to the exact length required. It is made in Germany and backed by a 5-year warranty.

Features of the SlimFlex3090 LED Strip 4000K

• 240 Nichia 757 series mid-power LEDs per 2 m reel (120 LEDs per meter)
• Pure White 4000K with CRI>90
• High brightness: 2120 lm per meter, 4240 lm per reel, at 18 W per meter
• Efficacy of 118 lm/W at a realistic junction temperature of 65°C, energy efficiency class E
• Color consistency to a 3-step MacAdam ellipse
• Lifetime of more than 60,000 hours (L80B10)
• Ultra-slim: 5 mm wide, 1.1 mm high
• Can be cut every 33.3 mm
• 24 V DC constant voltage, dimmable
• Wide 120° beam angle
• Double-sided, heat-conducting adhesive tape
• Maximum length per power feed: 2 m
• 5-year warranty
• Made in Germany

Applications of the SlimFlex3090 LED Strip 4000K

With its high brightness, CRI90 light quality and ultra-slim format, the SlimFlex3090 4000K is designed for the following main applications:

• Linear lighting: Mounted in a slim aluminum profile with an opal diffuser, the SlimFlex3090 creates narrow, continuous lines of light for ceilings, walls, furniture and minimalist linear luminaires. With 120 LEDs per meter (a pitch of about 8 mm), choose a profile with enough distance between strip and diffuser for a dot-free line. With 2120 lm per meter, one strip covers accent and ambient lighting and task lighting under cabinets and shelves from short distances (up to about 60 cm), while two strips in parallel reach the brightness needed for general lighting. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Cove lighting: Installed in a ceiling or wall cove, the strip produces soft, glare-free indirect light. Its output of 2120 lm per meter is enough to provide general room lighting from a single cove line, and the 5 mm width also fits narrow coves where other strips cannot be installed. The 3-step MacAdam binning prevents visible color shifts along the cove. Learn how to plan it in our cove lighting guide.
• Troffer and panel lighting: For troffers and LED panels, several SlimFlex3090 strips can be mounted in parallel on the base plate behind the diffuser. Their narrow PCB, high brightness and CRI>90 make them a high-quality replacement for fluorescent tubes in offices, classrooms, hospitals and shops, where good color rendering improves visual comfort and concentration. More about LED strips and modules for troffer lights.
• High-quality white light: With a color rendering index above 90, the SlimFlex3090 reproduces colors more faithfully than standard CRI80 LED strips, while its high efficacy keeps energy consumption low. The 4000K color temperature gives a clean, focused pure white light that supports concentration and alertness. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Technical Data of the SlimFlex3090 LED Strip 4000K

• Article number (SKU): 56026
• Equivalent model: SlimFlex
• LED manufacturer: Nichia (757 series)
• Light color: Pure White, 4000K
• Color rendering index: CRI (Ra) >90
• Binning: 3-step MacAdam ellipse
• Photometric code: 940/339
• Luminous flux: 4240 lm per reel, 2120 lm per meter
• Efficacy: 118 lm/W (mains voltage luminous efficacy 118 lm/W)
• Beam angle: 120°
• Lifetime: >60,000 h (L80B10C1)
• Operating mode: Constant voltage, 24 V DC, dimmable
• Current: 1500 mA per 2 m reel
• Power: 36 W per 2 m reel, 18 W per meter
• Number of LEDs: 240 per reel, 120 per meter
• Dimensions: 2000 x 5 x 1.1 mm (L x W x H)
• Cutting interval: 33.3 mm
• Maximum length per power feed: 2 m
• Weight: 80 g
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Photobiological safety (EN 62471): Risk group RG0
• Energy efficiency class: E
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Cutting: the strip can be cut with scissors every 33.3 mm, at the marked cutting points.
• Mounting: clean and degrease the surface, then fix the strip with its self-adhesive tape. For the best heat transfer, light diffusion and mechanical protection, we recommend mounting it in one of our aluminum profiles.
• Connection: connect the strip by soldering leads to the connection pads provided for this purpose.
• Power supply: operate the strip with a stabilized 24 V DC constant voltage LED driver that has short-circuit, overload and overtemperature protection.
• Load and longer runs: a full 2 m reel draws 36 W (1.5 A). The maximum length per power feed is 2 m; longer continuous lines can be built with additional feeds.
• Heat: at 18 W per meter on a narrow 5 mm PCB, mount the strip on an aluminum profile or another metal surface for good heat dissipation.
• Handling: avoid sharp bending and mechanical stress on the components, observe standard ESD precautions, and keep the strip away from aggressive chemicals. Store and operate it at 10% to 60% relative humidity.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the SlimFlex3090 Outperforms Low-Cost LED Strips

Compared with low-cost LED strips, the SlimFlex3090 differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
• PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
