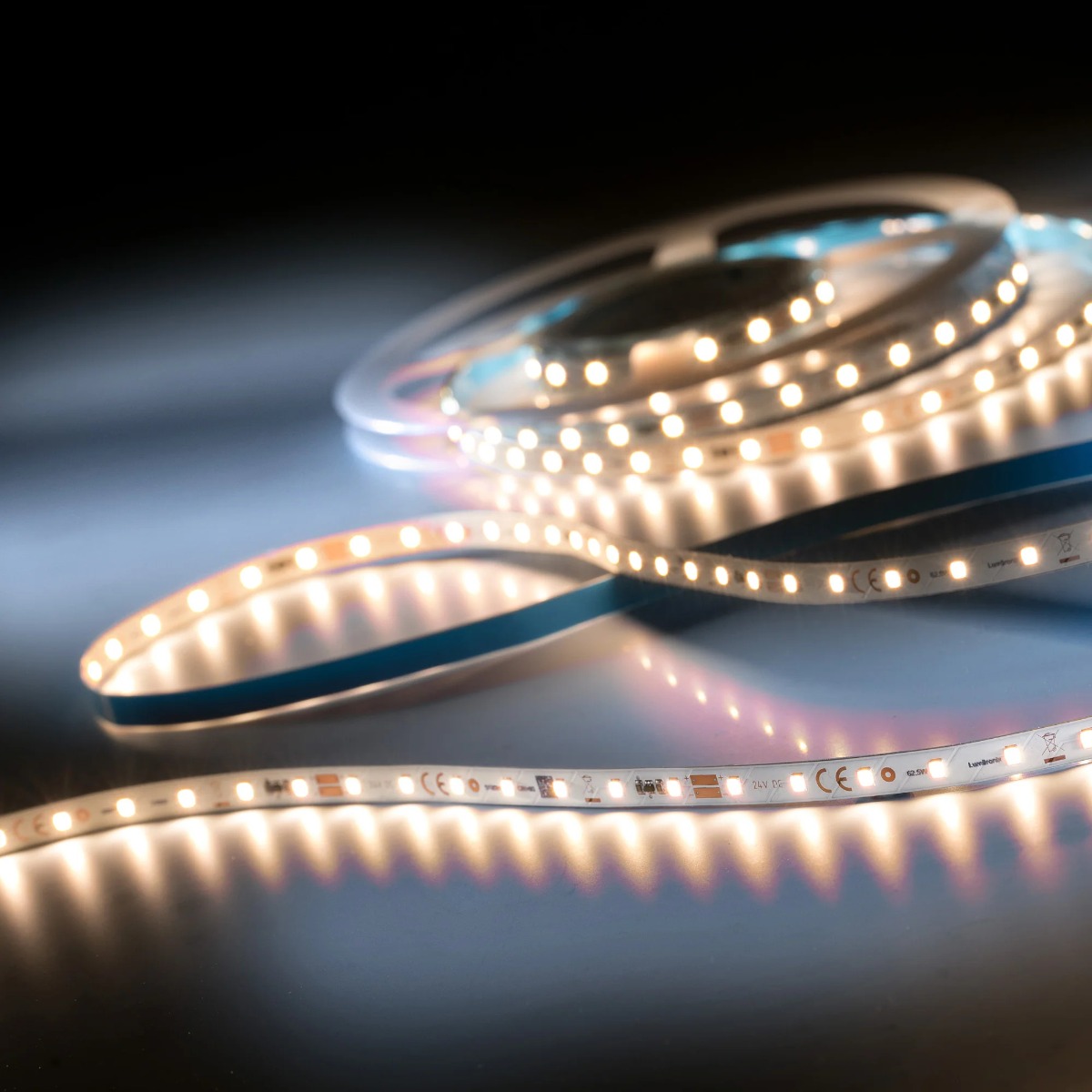

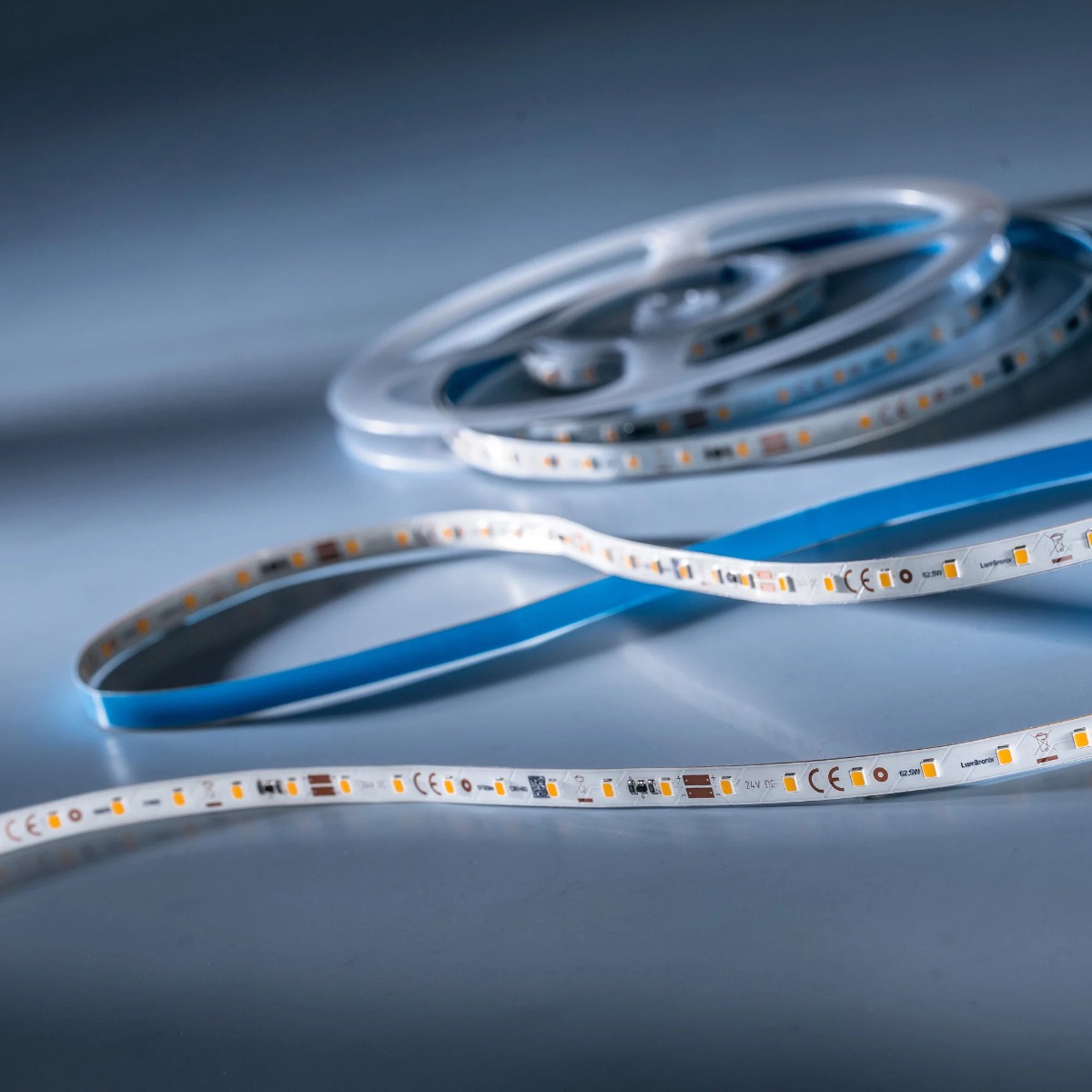

LumiFlex3090 Cree LED Strip warm white CRI90 3000K 9100lm 24V 70 LEDs/m 5m reel (1820lm/m 12.5W/m)

LumiFlex3090 Professional High-Efficiency CRI90 LED Strip Warm White 3000K

The LumiFlex3090 3000K is a high-efficiency, high color rendering LED strip for retail, hospitality, office and residential projects that need efficient warm white light with accurate color rendering. It is built with 350 Cree JB2835 mid-power LEDs per 5 m reel (70 per meter) and delivers 9100 lm per reel (1820 lm per meter) at only 12.5 W per meter. With 146 lm/W at a junction temperature of 65°C and a mains voltage luminous efficacy of 159 lm/W, it reaches energy efficiency class D, a very economical choice for projects where operating costs matter.

A color rendering index above 90 and LEDs binned to a 3-step MacAdam ellipse ensure accurate colors and visually identical light from strip to strip, which is essential wherever several runs are installed in the same field of view. The strip is made from one continuous 5-meter printed circuit board, produced in our reel-to-reel line in Germany, so there are no soldered joints between sections, and integrated linear current control keeps the brightness constant over the entire length.

The LumiFlex3090 can be cut every 100 mm and is mounted quickly with its double-sided, heat-conducting adhesive tape. With its slim 8 mm width, 1.2 mm height, 24 V constant voltage operation and full dimmability, it fits into aluminum profiles, coves, troffers and custom luminaires without additional cooling, and with only 2.6 A per 5 m reel it keeps the load on drivers and wiring low.

Features of the LumiFlex3090 Professional High-Efficiency LED Strip 3000K

• 350 Cree JB2835 mid-power LEDs per 5 m reel (70 LEDs per meter)
• Warm White 3000K with CRI>90
• High brightness: 1820 lm per meter, 9100 lm per reel, at only 12.5 W per meter
• Very high efficacy of 146 lm/W at a realistic junction temperature of 65°C (159 lm/W mains voltage luminous efficacy)
• Energy efficiency class D
• Color consistency to a 3-step MacAdam ellipse
• Lifetime of more than 60,000 hours (L80B10)
• Linear current control for constant brightness over the entire length
• One continuous 5 m PCB, without soldered joints
• Can be cut every 100 mm
• 24 V DC constant voltage, dimmable
• Wide 120° beam angle
• Double-sided, heat-conducting adhesive tape, no additional cooling required
• Slim profile: 8 mm wide, 1.2 mm high
• 5-year warranty
• Made in Germany

Applications of the LumiFlex3090 LED Strip 3000K

Thanks to its combination of very high efficacy, high color rendering and a slim, flexible format, the LumiFlex3090 3000K is designed for the following main applications:

• Linear lighting: Mounted in an aluminum profile with an opal diffuser, the LumiFlex3090 creates continuous, even lines of light for ceilings, walls and furniture. With 70 LEDs per meter (a pitch of about 14 mm), choose a profile with enough distance between strip and diffuser, or a cover with high diffusion, for a dot-free line; for very shallow profiles, a strip with 140 LEDs per meter is the better choice. The absence of soldered joints along the 5 m reel ensures a perfectly uniform line. With 1820 lm per meter, one strip covers accent and ambient lighting, while two strips in parallel reach the brightness needed for general lighting. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Cove lighting: Installed in a ceiling or wall cove, the strip produces soft, glare-free indirect light. Its output of 1820 lm per meter is ideal for strong ambient room light from a single cove line, and the 3-step MacAdam binning prevents visible color shifts along long cove runs. The 3000K light color creates a soothing warm white light that keeps a relaxing atmosphere but adds a little more clarity than 2700K, well suited to kitchens, bathrooms, cafés, hotels, galleries and retail spaces. Learn how to plan it in our cove lighting guide.
• Troffer and panel lighting: For troffers and LED panels in suspended ceilings, several LumiFlex3090 strips can be mounted in parallel on the base plate behind the diffuser. The slim 8 mm PCB, high efficacy and CRI>90 make it a high-quality replacement for fluorescent tubes in reception areas, hotels, shops and other spaces where a warmer, welcoming light is preferred. More about LED strips and modules for troffer lights.
• High-quality white light: With a color rendering index above 90, the LumiFlex3090 reproduces colors more faithfully than standard CRI80 LED strips, while its very high efficacy keeps energy consumption low. The 3000K color temperature gives a soothing warm white light that keeps a relaxing atmosphere but adds a little more clarity than 2700K. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Technical Data of the LumiFlex3090 LED Strip 3000K

• Article number (SKU): 43846
• Equivalent model: LumiFlex350 Pro HE
• LED manufacturer: Cree JB2835
• Light color: Warm White, 3000K
• Color rendering index: CRI (Ra) >90
• Binning: 3-step MacAdam ellipse
• Photometric code: 930/339
• Luminous flux: 9100 lm per reel, 1820 lm per meter
• Efficacy: 146 lm/W (mains voltage luminous efficacy 159 lm/W)
• Beam angle: 120°
• Lifetime: >60,000 h (L80B10C1)
• Operating mode: Constant voltage, 24 V DC, dimmable
• Current: 2600 mA per 5 m reel
• Power: 62.5 W per 5 m reel, 12.5 W per meter
• Number of LEDs: 350 per reel, 70 per meter
• Dimensions: 5000 x 8 x 1.2 mm (L x W x H)
• Cutting interval: 100 mm
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Photobiological safety (EN 62471): Risk group RG0
• Energy efficiency class: D
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Cutting: the strip can be cut with scissors every 100 mm, at the marked cutting points.
• Mounting: clean and degrease the surface, then fix the strip with the double-sided, heat-conducting adhesive tape. For the best heat transfer, light diffusion and mechanical protection, we recommend mounting it in one of our aluminum profiles.
• Connection: connect the strip by soldering leads to the connection pads provided for this purpose.
• Power supply: operate the strip with a stabilized 24 V DC constant voltage LED driver that has short-circuit, overload and overtemperature protection. A full 5 m reel draws 62.5 W (2.6 A).
• Handling: avoid sharp bending and mechanical stress on the components, observe standard ESD precautions, and keep the strip away from aggressive chemicals. Store and operate it at 10% to 60% relative humidity.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the LumiFlex3090 Outperforms Low-Cost LED Strips

Compared with low-cost LED strips, the LumiFlex3090 differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only genuine Cree JB2835 LEDs. As a member of the Cree LED branding partner program, we source them through Cree's authenticated supply chain, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality varies from one purchase to the next.
• PCB design and materials: a single continuous circuit board made of high-quality materials, designed without mechanical and electrical weak points, with integrated linear control for constant brightness. This gives better current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation, even at high operating temperatures that would damage many other strips.

Who We Are: Ledrise, Professional LED Strips Made in Germany

Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.

We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.

Our Quality Promise

• Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
• Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
• Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
• Full traceability: production batches are marked and tracked with laser-engraved barcodes.
• Honest data: the performance values in our datasheets match those in real-world applications.
• Long-term security: a 5-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.

Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
