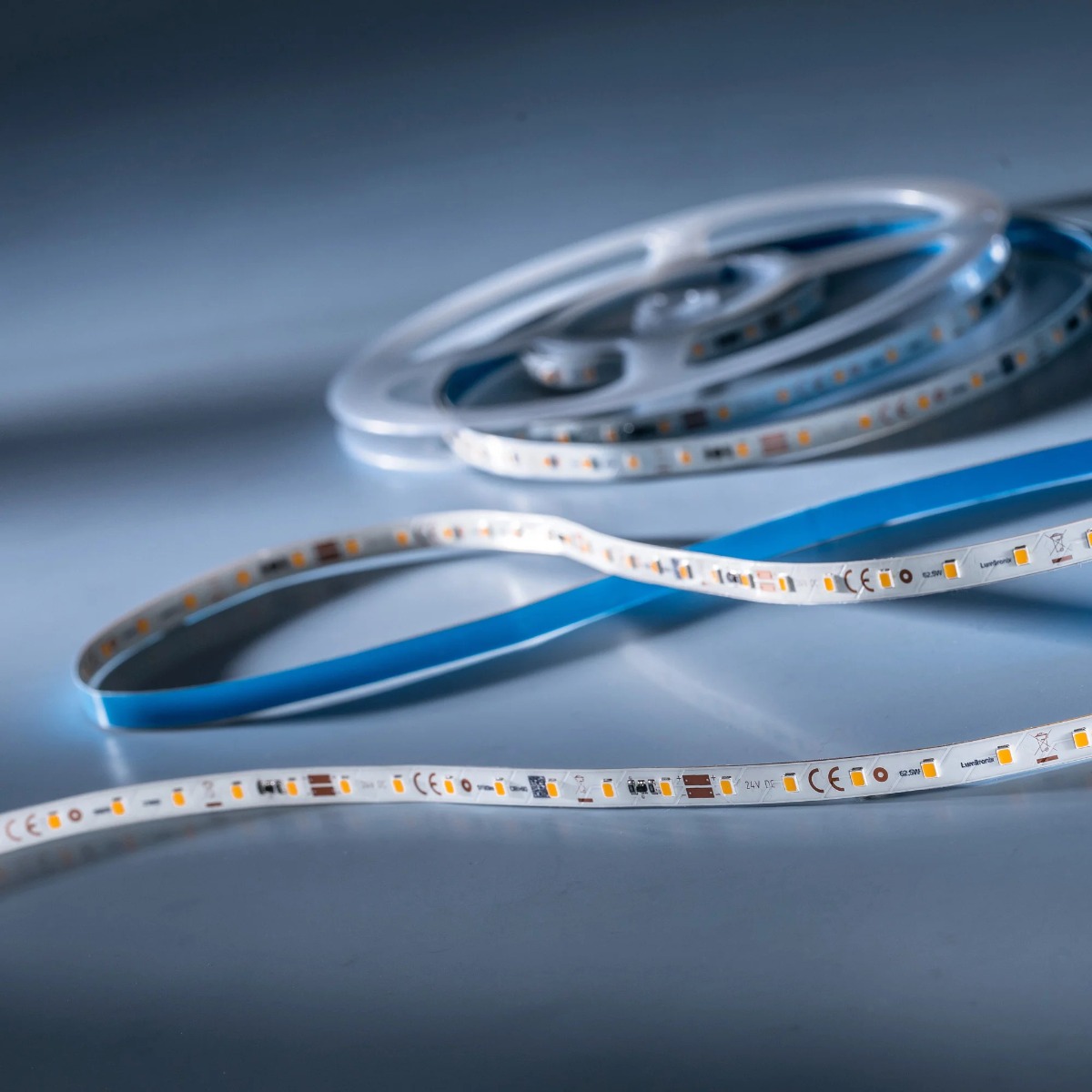

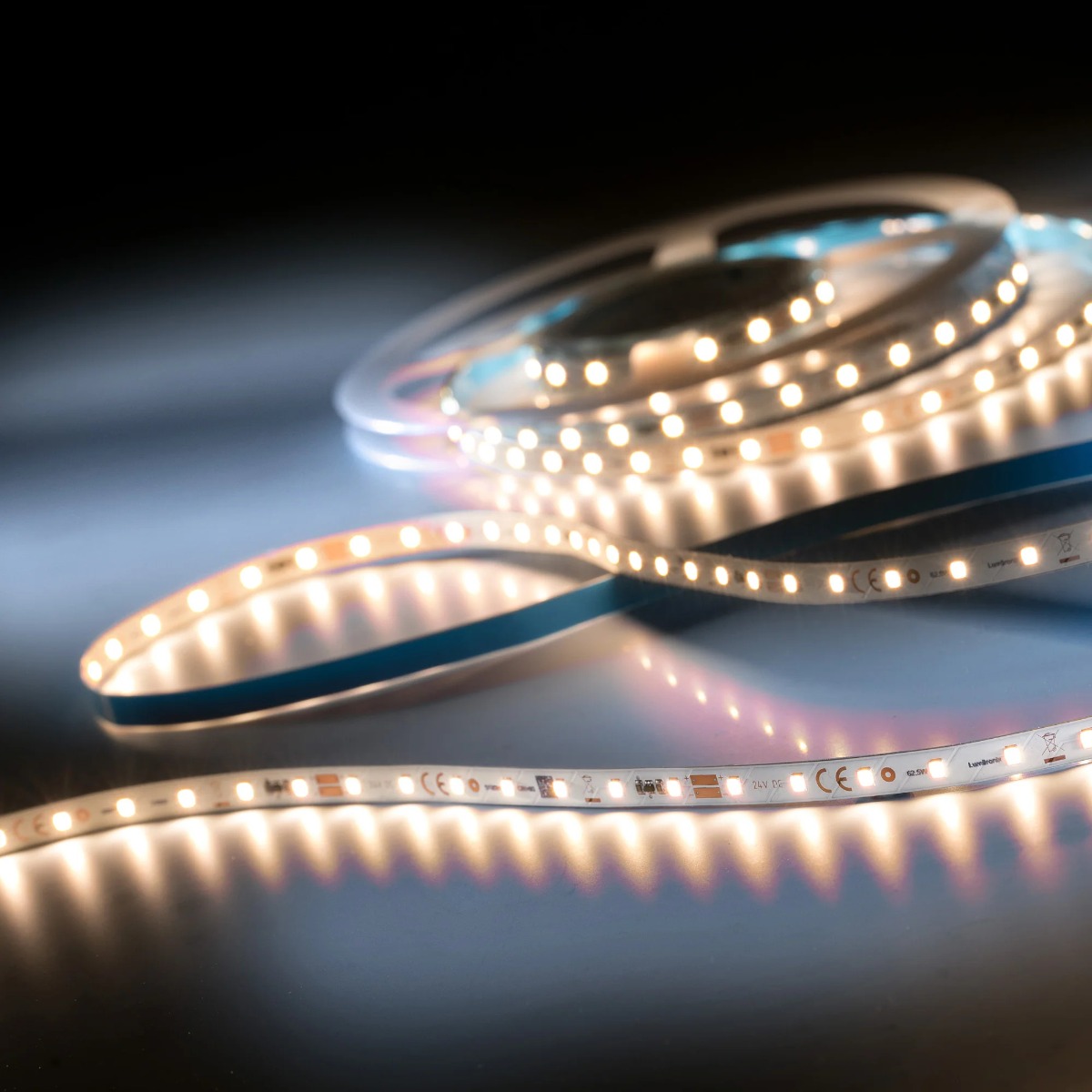

LumiFlex3090 Cree LED Strip pure white CRI90 4000K 9450lm 137PPF 24V 70 LEDs/m 5m reel (1890lm/m 12.5W/m)

LumiFlex3090 Professional High-Efficiency CRI90 LED Strip Pure White 4000K

The LumiFlex3090 4000K is a high-efficiency, high color rendering LED strip for offices, retail displays, workshops and healthcare spaces, and for horticulture installations that need an efficient white spectrum. It is built with 350 Cree JB2835 mid-power LEDs per 5 m reel (70 per meter) and delivers 9450 lm per reel (1890 lm per meter) at only 12.5 W per meter. With 152 lm/W at a junction temperature of 65°C and a mains voltage luminous efficacy of 164 lm/W, it reaches energy efficiency class D, a very economical choice for projects where operating costs matter. With a photon flux of 137 µmol/s per 5 m reel (about 27 µmol/s per meter), the 4000K version is also well suited to growing applications, where its white spectrum supports plant growth and easy visual crop inspection.

A color rendering index above 90 and LEDs binned to a 3-step MacAdam ellipse ensure accurate colors and visually identical light from strip to strip, which is essential wherever several runs are installed in the same field of view. The strip is made from one continuous 5-meter printed circuit board, produced in our reel-to-reel line in Germany, so there are no soldered joints between sections, and integrated linear current control keeps the brightness constant over the entire length.

The LumiFlex3090 can be cut every 100 mm and is mounted quickly with its double-sided, heat-conducting adhesive tape. With its slim 8 mm width, 1.2 mm height, 24 V constant voltage operation and full dimmability, it fits into aluminum profiles, coves, troffers and custom luminaires without additional cooling, and with only 2.6 A per 5 m reel it keeps the load on drivers and wiring low.

Features of the LumiFlex3090 Professional High-Efficiency LED Strip 4000K

• 350 Cree JB2835 mid-power LEDs per 5 m reel (70 LEDs per meter)
• Pure White 4000K with CRI>90
• High brightness: 1890 lm per meter, 9450 lm per reel, at only 12.5 W per meter
• Very high efficacy of 152 lm/W at a realistic junction temperature of 65°C (164 lm/W mains voltage luminous efficacy)
• Energy efficiency class D
• Photon flux of 137 µmol/s PPF per reel for horticultural use
• Color consistency to a 3-step MacAdam ellipse
• Lifetime of more than 60,000 hours (L80B10)
• Linear current control for constant brightness over the entire length
• One continuous 5 m PCB, without soldered joints
• Can be cut every 100 mm
• 24 V DC constant voltage, dimmable
• Wide 120° beam angle
• Double-sided, heat-conducting adhesive tape, no additional cooling required
• Slim profile: 8 mm wide, 1.2 mm high
• 5-year warranty
• Made in Germany

Applications of the LumiFlex3090 LED Strip 4000K

Thanks to its combination of very high efficacy, high color rendering and a slim, flexible format, the LumiFlex3090 4000K is designed for the following main applications:

• Linear lighting: Mounted in an aluminum profile with an opal diffuser, the LumiFlex3090 creates continuous, even lines of light for ceilings, walls and furniture. With 70 LEDs per meter (a pitch of about 14 mm), choose a profile with enough distance between strip and diffuser, or a cover with high diffusion, for a dot-free line; for very shallow profiles, a strip with 140 LEDs per meter is the better choice. The absence of soldered joints along the 5 m reel ensures a perfectly uniform line. With 1890 lm per meter, one strip covers accent and ambient lighting, while two strips in parallel reach the brightness needed for general lighting. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Cove lighting: Installed in a ceiling or wall cove, the strip produces soft, glare-free indirect light. Its output of 1890 lm per meter is ideal for strong ambient room light from a single cove line, and the 3-step MacAdam binning prevents visible color shifts along long cove runs. The 4000K light color creates a clean, focused pure white light that supports concentration and alertness, well suited to offices, classrooms, hospitals, grocery stores, jewelry boutiques, workshops and kitchens. Learn how to plan it in our cove lighting guide.
• Troffer and panel lighting: For troffers and LED panels in suspended ceilings, several LumiFlex3090 strips can be mounted in parallel on the base plate behind the diffuser. The slim 8 mm PCB, high efficacy and CRI>90 make it a high-quality replacement for fluorescent tubes in offices, classrooms, hospitals and shops, where good color rendering improves visual comfort and concentration. More about LED strips and modules for troffer lights.
• High-quality white light: With a color rendering index above 90, the LumiFlex3090 reproduces colors more faithfully than standard CRI80 LED strips, while its very high efficacy keeps energy consumption low. The 4000K color temperature gives a clean, focused pure white light that supports concentration and alertness. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.
• Horticulture: lettuce production: In vertical farms, the flexible strip can be mounted under each cultivation level, distributed according to shelf width and plant layout. Its 4000K CRI90 spectrum covers the whole visible range with a single LED type, supporting healthy crop growth while allowing easy visual inspection and comfortable working conditions. See our page on LED grow lights for lettuce production.
• Horticulture: microgreens: For microgreens trays, LEDs can be positioned close to the crop canopy, so the strips can be spread according to tray dimensions, shelf geometry and mounting height to reach the target PPFD evenly. With 137 µmol/s per reel, the strip offers a flexible way to build uniform grow lights for multi-level racks. More on LED grow light engines for microgreens production.
• Horticulture: microalgae photobioreactors: The narrow, flexible PCB can be placed close to transparent reactor tubes, with several strips distributed around the reactor for multi-sided illumination and fewer dark zones. White light is a practical choice for dense cultures, since green photons penetrate further into the suspension. Mount the strips on aluminum profiles so their heat is carried away from the culture. Read our guides on LED light engines for microalgae photobioreactors and how to design grow lights for photobioreactors.
• Horticulture: canopy inter-lighting: Placed directly within the crop canopy, LED strips bring light to the shaded middle and lower leaves that top lighting cannot reach, and the white spectrum makes crop inspection easier. More about inter-lighting in greenhouses.

Please note: the standard LumiFlex3090 is not waterproof and is specified for operation at 10% to 60% relative humidity. For greenhouses, grow rooms and other humid environments, install it in a closed aluminum profile, or order a custom version with IP67 LumProtect® lamination through our Build Your Own flexible LED strips service.

Technical Data of the LumiFlex3090 LED Strip 4000K

• Article number (SKU): 43875
• Equivalent model: LumiFlex350 Pro HE
• LED manufacturer: Cree JB2835
• Light color: Pure White, 4000K
• Color rendering index: CRI (Ra) >90
• Binning: 3-step MacAdam ellipse
• Photometric code: 940/339
• Luminous flux: 9450 lm per reel, 1890 lm per meter
• Photon flux: 137 µmol/s PPF per reel
• Efficacy: 152 lm/W (mains voltage luminous efficacy 164 lm/W)
• Beam angle: 120°
• Lifetime: >60,000 h (L80B10C1)
• Operating mode: Constant voltage, 24 V DC, dimmable
• Current: 2600 mA per 5 m reel
• Power: 62.5 W per 5 m reel, 12.5 W per meter
• Number of LEDs: 350 per reel, 70 per meter
• Dimensions: 5000 x 8 x 1.2 mm (L x W x H)
• Cutting interval: 100 mm
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Photobiological safety (EN 62471): Risk group RG0
• Energy efficiency class: D
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Cutting: the strip can be cut with scissors every 100 mm, at the marked cutting points.
• Mounting: clean and degrease the surface, then fix the strip with the double-sided, heat-conducting adhesive tape. For the best heat transfer, light diffusion and mechanical protection, we recommend mounting it in one of our aluminum profiles.
• Connection: connect the strip by soldering leads to the connection pads provided for this purpose.
• Power supply: operate the strip with a stabilized 24 V DC constant voltage LED driver that has short-circuit, overload and overtemperature protection. A full 5 m reel draws 62.5 W (2.6 A).
• Handling: avoid sharp bending and mechanical stress on the components, observe standard ESD precautions, and keep the strip away from aggressive chemicals. Store and operate it at 10% to 60% relative humidity.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the LumiFlex3090 Outperforms Low-Cost LED Strips

Compared with low-cost LED strips, the LumiFlex3090 differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only genuine Cree JB2835 LEDs. As a member of the Cree LED branding partner program, we source them through Cree's authenticated supply chain, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality varies from one purchase to the next.
• PCB design and materials: a single continuous circuit board made of high-quality materials, designed without mechanical and electrical weak points, with integrated linear control for constant brightness. This gives better current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation, even at high operating temperatures that would damage many other strips.
