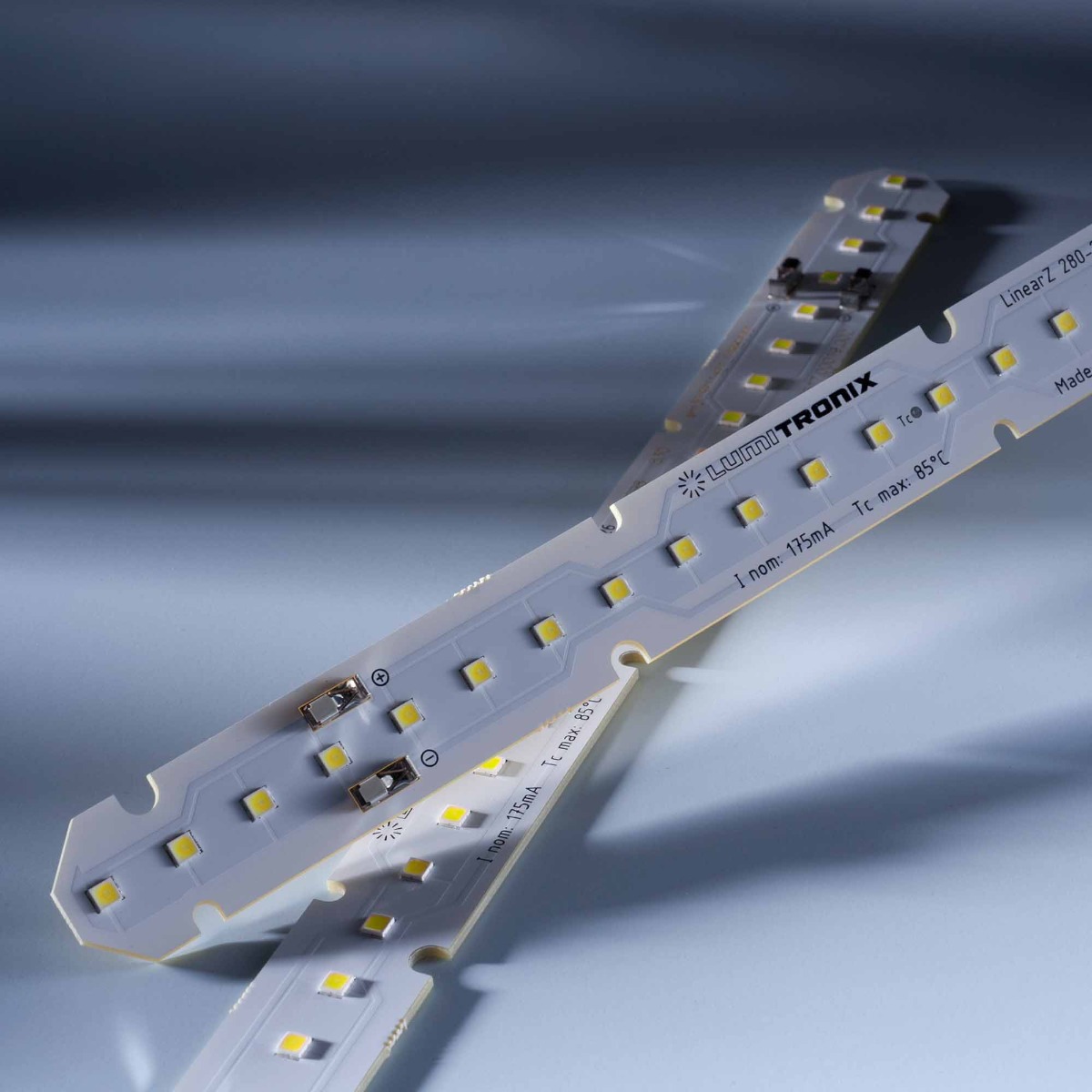

Build Your Own LumiBar-26-3098+ Nichia LED Strip Zhaga L28W2 White CRI 70-99 1800-7800K 175mA 26 LEDs 28cm (up to 4500lm/m)
€0.00
Production Order: 6-12 weeks
SKU
lumibar_26_3098
Use this specialized form to order your custom LumiBar-26-3098+ LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own LumiBar-26-3098+ Nichia LED Strip
- LumiBar-26-3098+ is equipped with 26 Mid-Power Nichia 757 LEDs from Japan, with the highest performance on the market
- Zhaga L28W2, 280x20mm LED strip with versatile and easy-to-use plug-and-play connection system
- CRI options: 70, 80, 90, 95, 99
- Color temperature options: 1800K to 7800K
- Special Nichia technology options: Optisolis, Vitasolis, H6, HPS
- Constant Current, typical 175mA
Build Your Own LumiBar-26-3098+ Nichia LED Strip Zhaga L28W2 White CRI 80-99 1800-7800K 175mA 26 LEDs 28cm (up to 4500lm/m)
The LumiBar-52-3098+ LED strip, designed according to the Zhaga L26W2 standard, is easy and convenient to install and compatible with common luminaires. Installation does not require a heat sink and connection can be made without soldering, via the plug & play surface connectors. With a slim design, the LED strip is deal for use in narrow luminaires for commercial, industrial, or workplace lighting.
The LumiBar-26-3098+ is made to be equipped with 26 of the Nichia 757 Series Mid Power LEDs, a huge market success due to their highest luminous efficacy (222 lm/w), small size (3030 package), extreme lifetime (more than 100,000 hours) and high versatility. You can choose from the complete selection of Nichia 757 LEDs, with CRI from 70 to 99 and color temperature from 1800K to 6500K, empowering you to create the perfect product for your application.
The LumiBar-26-3098+ Nichia LED Strip is 280 x 20mm and is a constant current design, with 175 mA.
Made in Germany, the LumiBar-26-3098+ Nichia LED strip is a professional product, designed for long-term use, with a 5-year warranty.
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Custom LumiBar LED Strip Order Process Explained & Technical details:
Build Your Own LumiBar-26-3098+ Nichia LED Strip, Made in Germany, with Nichia 757 LED series.
Step 1: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 200 pcs.
Step 2: LED Color temperature
Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.
Step 3: Nichia 757 LED CRI and Special Type
The LED strip will be built with the latest generation Nichia 757 LED series, the industry leading 3030 Mid-power LEDs. The 757 LED series have industry's highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime). Each LED has a typical consumption of 0.2W at 65mA, for a luminous flux up to 45 lm.
Click here to see current Nichia line-up.
Special Nichia 757 LED types include:
- Optisolis 757 & CRI99: LEDs with a spectrum close to natural light, CRI99, R9 minimum 85
- H6 757 Series & CRI90: LEDs that achieve a color quality better than traditional LEDs (Ra≥90, R9≥50, R15≥85) while maintaining an efficacy better than Ra≥80 LEDs.
- Vitasolis 757 Series & CRI80: Vitasolis LEDs emit a natural white color with a high content of blue-green energy proven to stimulate awakening and supports a vibrant life.
- HPS 757 Series & CRI70: LED that genuinely reproduces the emission color of High Pressure Sodium lamps (HPS), which is most often used for road lighting and outdoor lighting around the world.
Not all color temperatures are available for every LED type or CRI. Datasheet will specify Nichia LED part number.
Step 3: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.
LumiBar Technical Specifications:
- 26 Nichia 757 LEDs per strip, 93 per meter
- Dimensions: 280x20x4.55mm
- Zhaga L28W2 standard
- FR4 rigid PCB
- Constant current design (typical 175mA)
- Plug & Play connection system via surface connectors, for 18AWG...26AWG cable
- Very high brightness, up to 4500lm per meter for CRI80 at 5000K
- 100.000h lifetime
- CRI options: 70, 80, 90, 95, 99
- Color temperature options: 1800K to 7800K
- Special Nichia technology options: Optisolis, Vitasolis, H6, HPS
- Rated output up to 8W
- Optimized for office and residential spaces
- Easy to install
- Dimmable
- 5-year warranty
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
PCB Markings include:
- CE, ROSH
- Article Number
- LED color code
- Nichia LED-Bin
- CRI
| SKU | lumibar_26_3098 |
|---|---|
| Weight brut (g) | 1.000000 |
| Luminous Flux per meter | 4500 |
| Dimmable | Dimmable |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Product Family | Lumibar4080 |
| Strip Type | Rigid |
| LEDs per meter | 92 |
| LEDs number per sales unit | 26 |
| Dimensions | 280x20x4.5 |
| Dimensions: Length (cm) | 50 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 4.5 |
| Brand | Lumistrips |
Write Your Own Review
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
