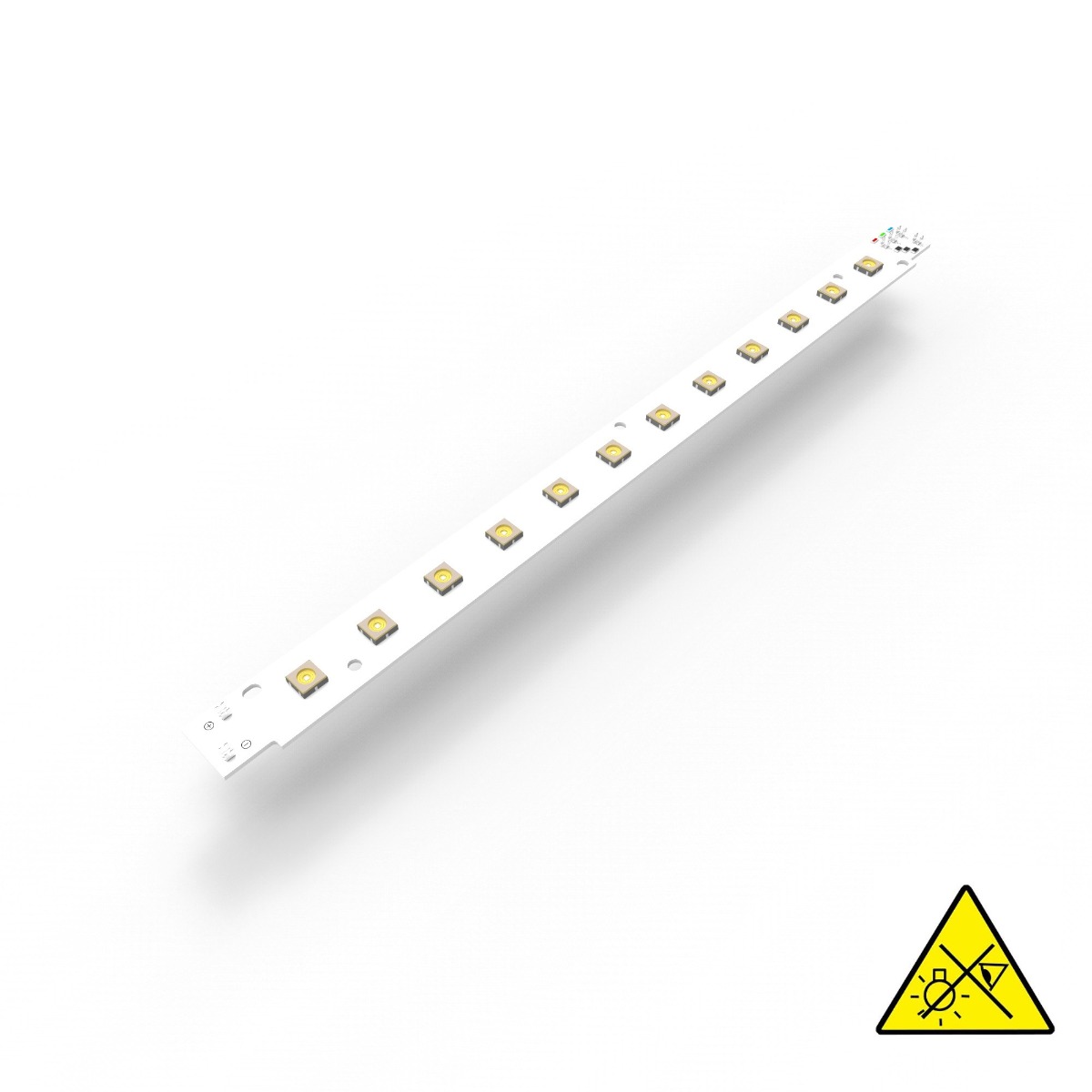

The Violet UVB Seoul Viosys LED Module is a high-performance, rigid PCB LED strip engineered for demanding UVB applications. It contains 12 Seoul Viosys UV LEDs with a peak wavelength of approximately 310 nm, delivering consistent and reliable UVB output in a compact 281 mm × 19.2 mm form factor.
Violet UVB Seoul Viosys LED Strip 310nm 12 LEDs 112mW 28cm 650mA for disinfection and sterilization
€129.90
Stock Germany >10 pcs
SKU
42951
Professional UV-B LED strip for disinfection and sterilization of surfaces, air and liquids
- Constant current operation with 450-650 mA (driver & controller required, not incl.)
- 12 x High performance Seoul Viosys UV-C 310nm LEDs
- 3 status LEDs (red, green, blue)
Violet UVB Seoul Viosys LED Module (12× Seoul Viosys LEDs, 310 nm)
- Peak wavelength: ≈ 310 nm (UVB region)
- LED configuration: 12 × Seoul Viosys UVB LEDs on a rigid PCB (281 × 19.2 mm)
- Typical forward current: 450 mA per module
- Approximate power consumption: ~9.6 W (typical operating conditions)
- Low-profile rigid design: easy to mount and integrate; allows reliable thermal management
- Stable optical output: designed for long operational life under correct thermal and electrical conditions
Technical Specifications
| Specification | Value |
|---|---|
| LED type | Seoul Viosys UV LEDs (12 pieces) |
| Peak wavelength | ≈ 310 nm (UVB) |
| Dimensions (L × W) | 281 mm × 19.2 mm |
| Typical forward current | 450 mA |
| Approx. power | ~9.6 W |
| Mounting | Rigid PCB — screw or adhesive mounting recommended with proper heatsink |
| Cooling | Requires adequate thermal path (heatsink or metal chassis) to preserve output and lifetime |
Designed for precision UVB tasks, the module is ideal for phototherapy (medical UVB treatments), UV-curing of specialty resins and adhesives, material testing, fluorescence excitation and other industrial or scientific processes that require a narrowband UVB source.
Safety
- UVB radiation can damage eyes and skin. Always use appropriate PPE (UV-blocking eyewear, gloves, protective clothing).
- Limit exposure times and control beam path to avoid unintentional human exposure.
- Follow local regulations and standards for UV equipment and medical devices when applicable.
The sterilization module is operated with 400mA or 650 mA constant current LED driver at 22-24 V.
We recommend the Mean Well LCM driver for simple dimming via 0-10V or DALI or our Powercontroler V2 series for more dimming options (including via wireless button or phone app).
The module is primarily aimed at the industrial sectors, such as lighting manufacturers and companies in the medical technology sector.
| SKU | 42951 |
|---|---|
| Weight brut (g) | 22.000000 |
| Color | UVC Ultraviolet |
| Power (W) | 10 |
| Viewing Angle | 120° |
| Warranty (months) | 24 |
| Product lifetime (h) | 12000 |
| Wavelength (nm) | 310 |
| Manufacturer Product Code | 42951 UV-C |
| Strip Type | Rigid |
| Dimensions | 281x19.2x3.72 |
| Dimensions: Length (cm) | 28.2 |
| Dimensions: Width (mm) | 19.2 |
| Dimensions: Height (mm) | 3.72 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002368 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | YES |
