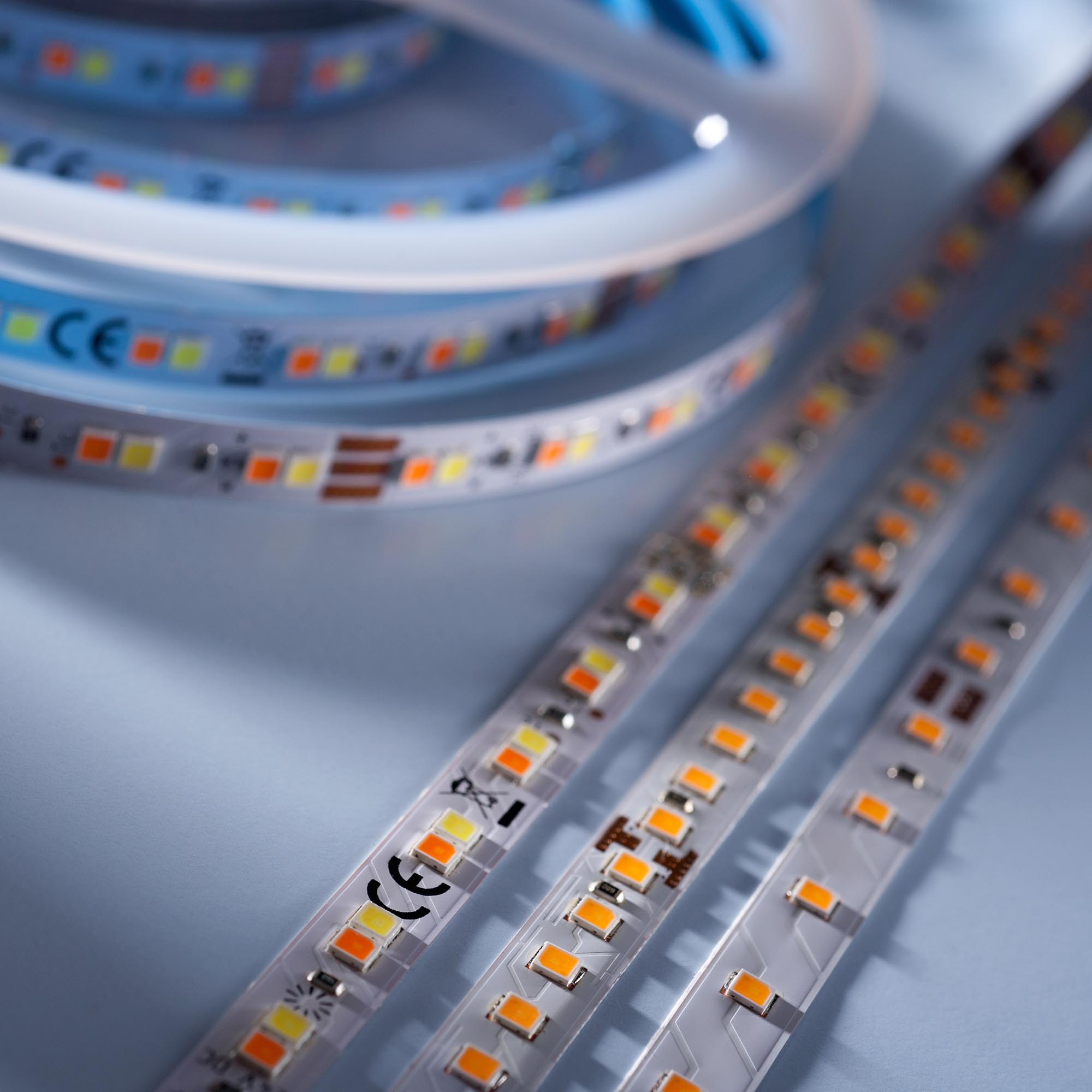

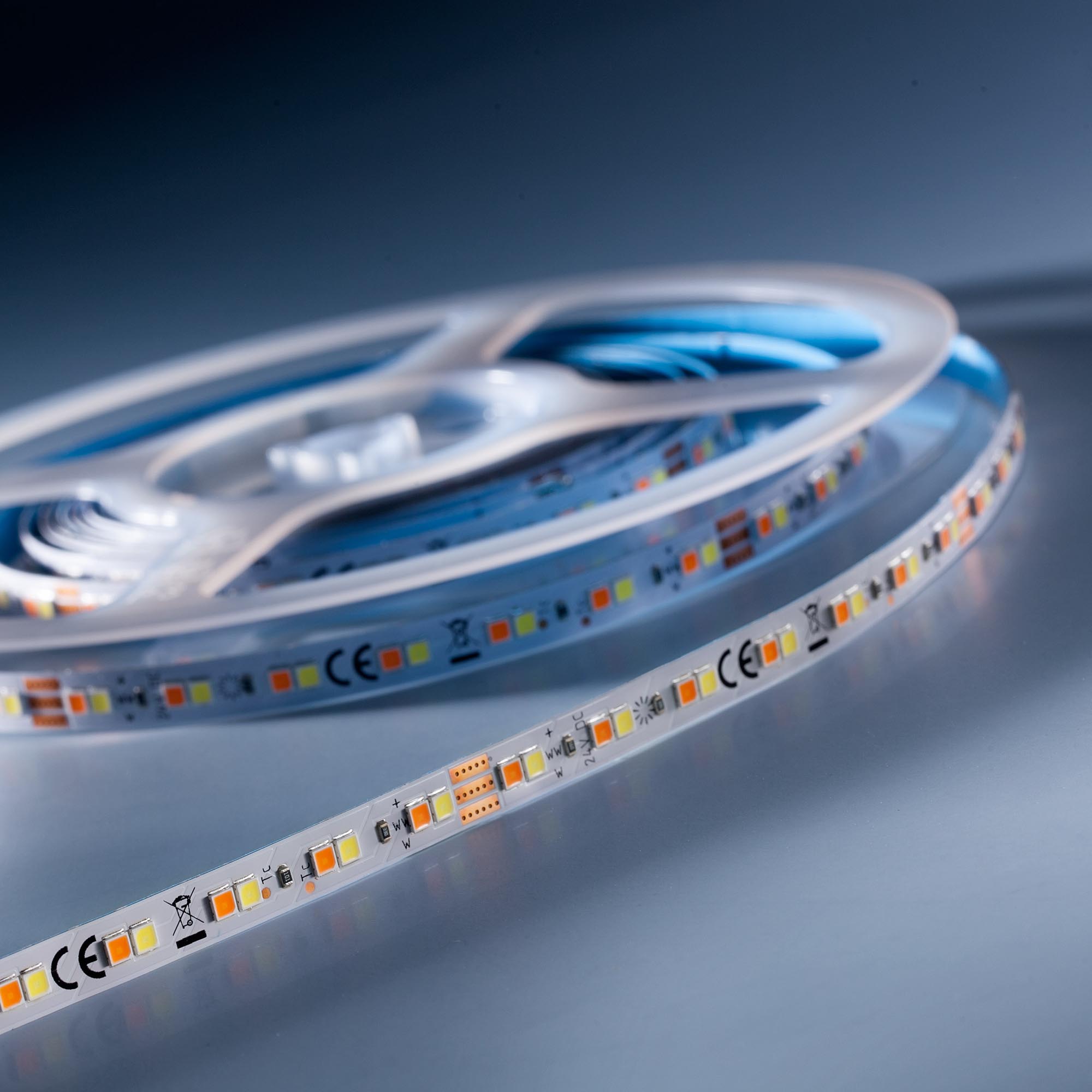

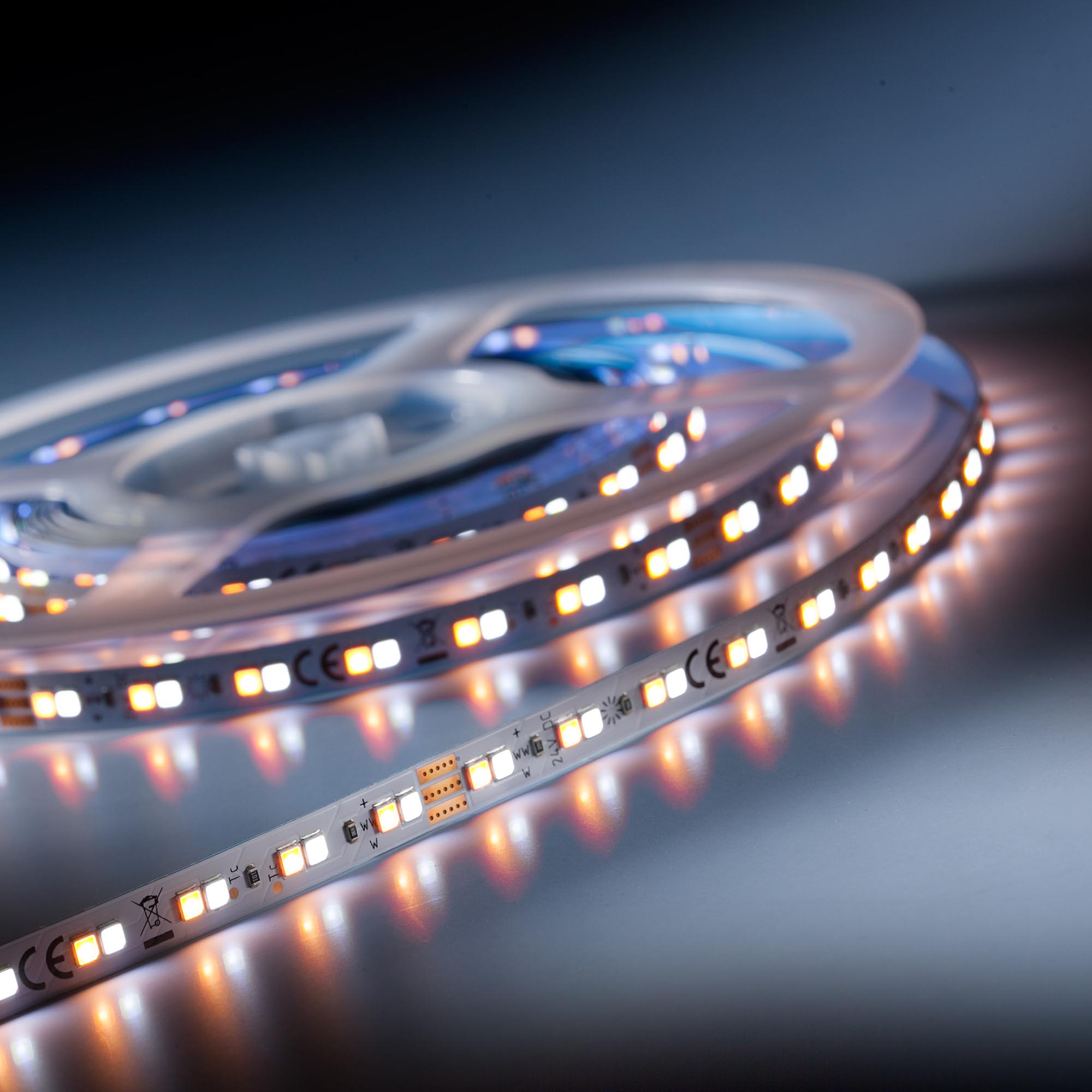

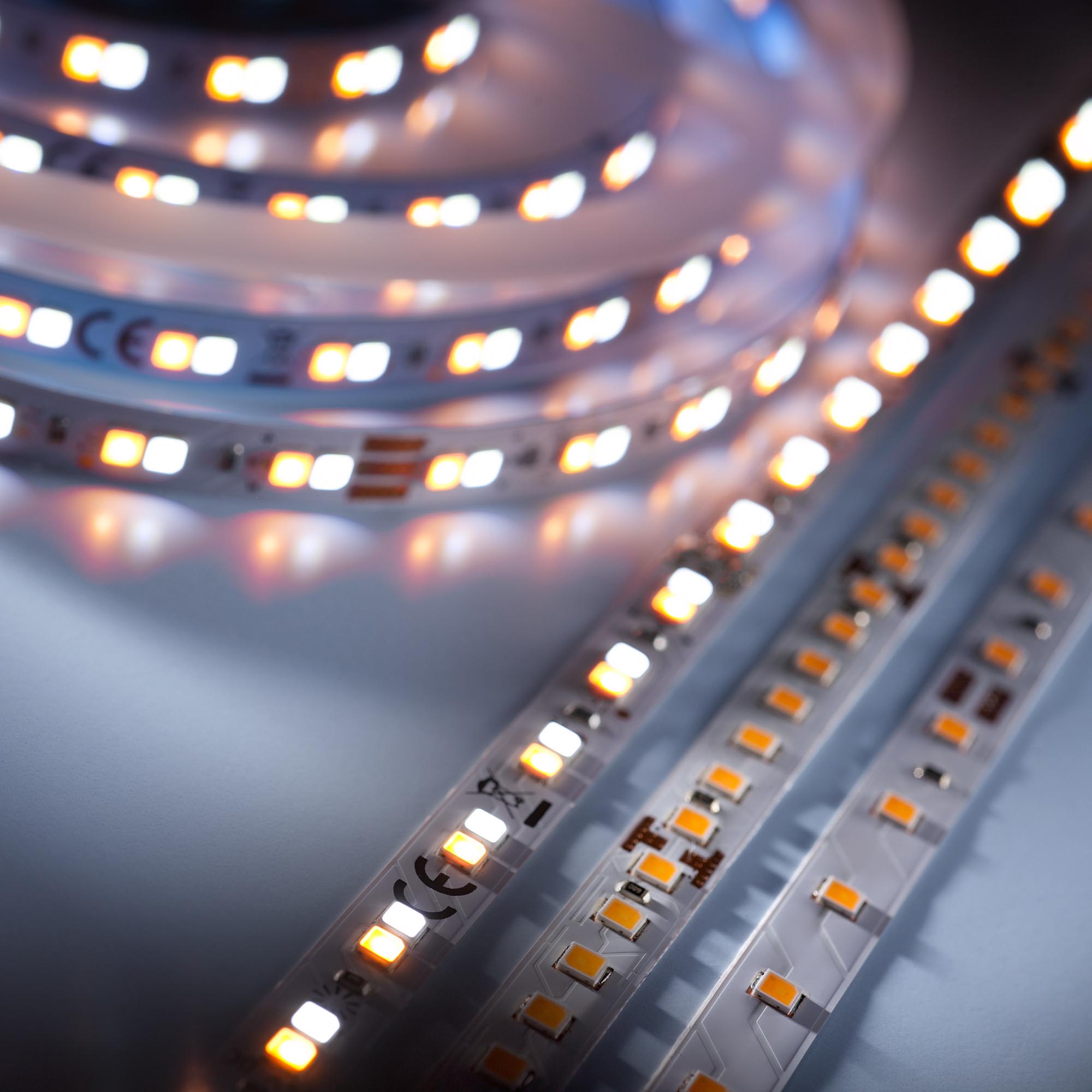

LumiFlexTW-2080 Nichia LED Strip Tunable white 2000-6500K 6980lm 24V 140 LEDs/m 5m reel (874+1396lm/m and 9.6W/m)

LumiFlexTW-2080 Nichia Tunable White LED Strip 2000-6500K

The LumiFlexTW-2080 Nichia covers an exceptionally wide color temperature range, from candlelight-like 2000K to daylight 6500K, so the same installation can follow the light of the day from sunrise to afternoon. It is equipped with 700 Nichia 757 series mid-power LEDs (140 per meter), in two separately controllable channels, and delivers 874 lm per meter in warm white and up to 1396 lm per meter in cold white at 9.6 W per meter and channel, with an efficacy of up to 145 lm/W.

This combination of brightness, efficiency and a wide tuning range makes the LumiFlexTW-2080 a strong choice for linear luminaires and cove lighting in homes, hotels, restaurants, offices and shops, and for human-centric lighting concepts. Nichia binning to a 3-step MacAdam ellipse ensures uniform white light along the whole reel and from batch to batch.

Features of the LumiFlexTW-2080 Nichia LED Strip

• 700 Nichia 757 series mid-power LEDs per 5 m reel (140 LEDs per meter)
• Tunable white from 2000K to 6500K, CRI>80
• Two channels: 874 lm per meter in warm white and 1396 lm per meter in cold white
• 9.6 W per meter and channel, 48 W per channel per 5 m reel
• Efficacy of 91-145 lm/W at a realistic junction temperature of 65°C, energy efficiency class C
• Color consistency to a 3-step MacAdam ellipse
• Lifetime of more than 60,000 hours (L80B10)
• Can be cut every 100 mm
• 24 V DC constant voltage, dimmable
• Wide 120° beam angle
• Self-adhesive back, no additional cooling required
• Slim profile: 8 mm wide, 1.2 mm high
• 5-year warranty
• Made in Germany

Applications of the LumiFlexTW-2080 Nichia LED Strip

With its tunable white light and flexible format, the LumiFlexTW-2080 Nichia is designed for the following main applications:

• Linear lighting: In aluminum profiles, the LumiFlexTW-2080 Nichia creates continuous lines of light for ceilings, walls and furniture, and tunable white linear luminaires for offices, shops and hospitality. Because the warm white and cold white LEDs alternate along the strip (70 of each per meter), mount it in a profile with an opal diffuser and enough distance between strip and cover, so the two colors blend into one uniform line of light at every setting. With 874 lm per meter in warm white and 1396 lm per meter in cold white, one strip provides accent and ambient lighting, while two strips in parallel reach the brightness needed for general lighting. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Cove lighting: Installed in a ceiling or wall cove, the LumiFlexTW-2080 Nichia produces soft, glare-free indirect light whose color temperature can follow the time of day or the occasion: warm light for a relaxed evening atmosphere in living rooms, hotels and restaurants, neutral or cool light for activity and concentration in offices, shops and kitchens. With 874 lm per meter in warm white and 1396 lm per meter in cold white, it is ideal for strong ambient room light from a single cove line, and the 3-step MacAdam binning prevents visible color differences along long cove runs. Learn how to plan it in our cove lighting guide.
• Tunable white light: With a color rendering index above 80, the strip provides clean, uniform white light at every setting. Where color accuracy is critical, choose our CRI95 LumiFlexTW-3095. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.
• Human-centric lighting with 2 channels: The warm white and cold white channels are controlled separately with a 2-channel (tunable white) controller, so you can set any color temperature between 2000K and 6500K and the brightness independently. Cooler, brighter light during the day supports alertness and concentration, while warmer, dimmed light in the evening supports relaxation, the principle of human-centric lighting for homes, offices, schools, hotels and care facilities. Read more about Human Centric Lighting with adjustable intensity and color temperature and how wireless Casambi control enables human-centric lighting scenes.

Technical Data of the LumiFlexTW-2080 Nichia LED Strip

• Article number (SKU): 56051
• Equivalent model: LumiFlex700 TW
• LED manufacturer: Nichia
• Light color: Tunable white, 2000K to 6500K (2 channels)
• Color rendering index: CRI (Ra) >80
• Binning: 3-step MacAdam ellipse
• Photometric code: 820-865
• Luminous flux: Warm white 4370 lm per reel (874 lm/m), cold white 6980 lm per reel (1396 lm/m)
• Efficacy: 91-145 lm/W (mains voltage luminous efficacy 118 lm/W)
• Beam angle: 120°
• Lifetime: >60,000 h (L80B10C1)
• Operating mode: Constant voltage, 24 V DC, dimmable
• Current: 2000 mA per channel
• Power: 48 W per channel per 5 m reel, 9.6 W per meter and channel
• Number of LEDs: 700 per reel, 140 per meter
• Dimensions: 5000 x 8 x 1.2 mm (L x W x H)
• Cutting interval: 100 mm
• Weight: 80 g
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Photobiological safety (EN 62471): Risk group RG0
• Energy efficiency class: C
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Cutting: the strip can be cut with scissors every 100 mm, at the marked cutting points.
• Mounting: clean and degrease the surface, then fix the strip with its self-adhesive tape. For the best heat transfer, light diffusion and mechanical protection, we recommend mounting it in one of our aluminum profiles.
• Connection: solder leads to the connection pads provided for this purpose, observing the marking of the warm white and cold white channels.
• Power supply: operate the strip with a stabilized 24 V DC constant voltage LED driver that has short-circuit, overload and overtemperature protection.
• Control: connect the two channels to a 2-channel (tunable white) LED controller or dimmer to set color temperature and brightness, for example a wireless Casambi controller or a wall dimmer.
• Driver sizing: each channel draws up to 48 W (2 A) per 5 m reel; size the driver for both channels at full output, 96 W per 5 m reel, plus a safety margin.
• Handling: avoid sharp bending and mechanical stress on the components, observe standard ESD precautions, and keep the strip away from aggressive chemicals. Store and operate it at 10% to 60% relative humidity.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the LumiFlexTW-2080 Nichia Outperforms Low-Cost LED Strips

Compared with low-cost tunable white LED strips, the LumiFlexTW-2080 Nichia differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
• PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.

Who We Are: Ledrise, Professional LED Strips Made in Germany

Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.

We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.

Our Quality Promise

• Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
• Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
• Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
• Full traceability: production batches are marked and tracked with laser-engraved barcodes.
• Honest data: the performance values in our datasheets match those in real-world applications.
• Long-term security: a 5-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.

Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
