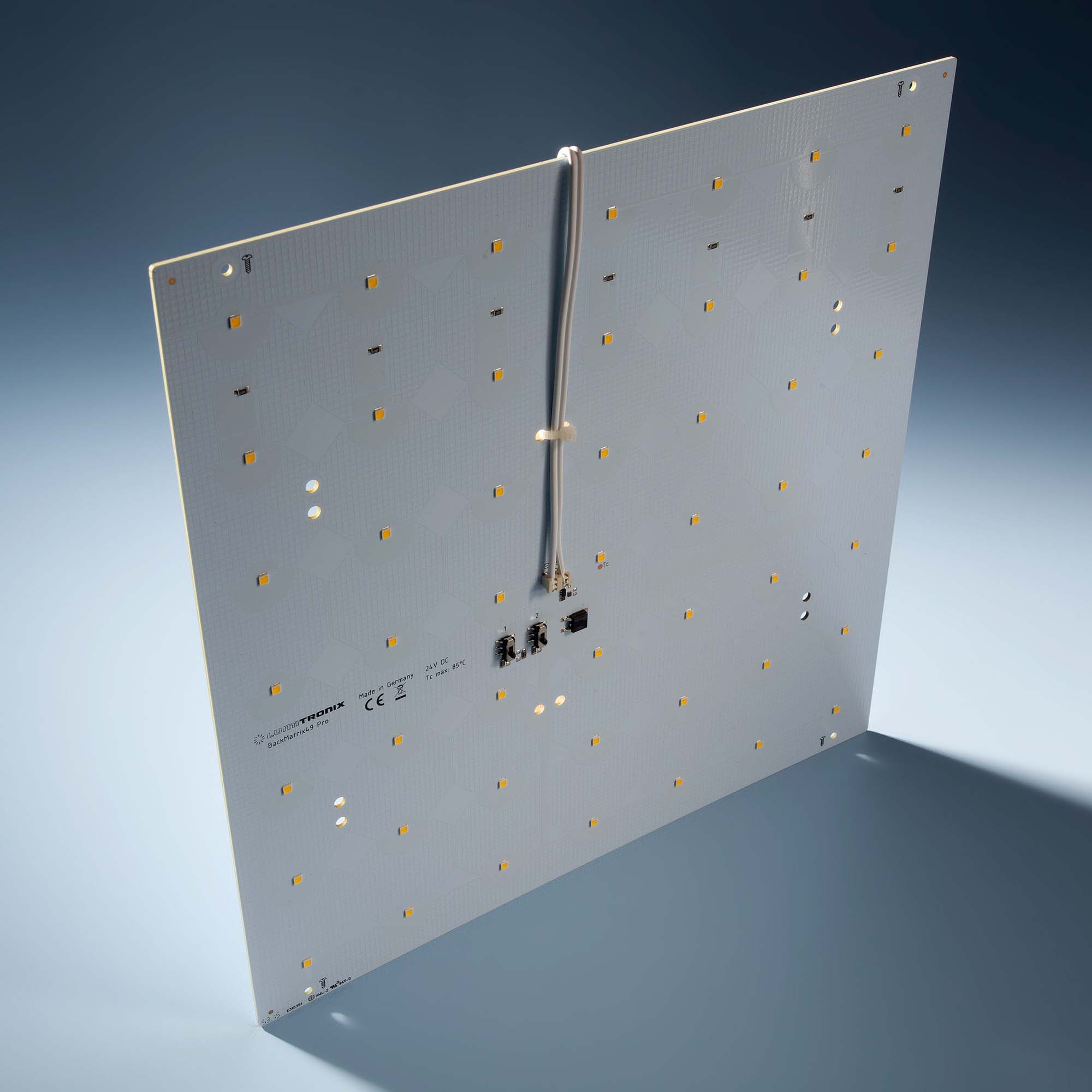

BackMatrix-49-3080 Nichia LED Module pure white CRI80 4000K 3200lm 49 LEDs 24V 21.2W 120° 29x29cm (38000 lm/sqm)

The BackMatrix-49-3080 LED module is a powerful lighting solution that is designed to deliver optimum illumination for large surfaces, including luminous ceilings, walls or 3D elements. The module provides a uniform lighting in color and intensity, with high spectrum quality and very high brightness. The module achieves optimum illumination by utilizing high-performance Nichia LEDs that deliver up to 38,000 lumens per square meter.

One special attribute of the BackMatrix module is its onboard switch, which allows for the three levels of brightness adjustment of the Nichia 757 LEDs, ranging from high 38,000 lumens per square meter to relaxed 13,700 lumens. Even at the highest setting, the module does not require cooling.

The BackMatrix module is also incredibly easy to install and doesn't require any cooling. Each matrix has a connector with insulation displacement, eliminating the need for soldering during electric connection. Contact between modules can be established using a single standard cable, allowing for very long cable lengths.

All the Nichia LEDs used in the BackMatrix module have at least 42,800 hours L70 lifetime in hot working conditions, ensuring that most users will see a lifetime of at least 100,000 hours. Additionally, LEDs are color-sorted up to a 3-step MacAdam Ellipse, guaranteeing color uniformity at installation and problem-free extension of the lighting system or servicing of its parts.

The BackMatrix-49-3080 LED module has a range of impressive features that make it a highly versatile lighting solution. The module comes with 49 high-performance Nichia 757G LEDs, and it has a maximum luminous flux of 3200lm or 38000lm per square meter. It also features three light levels via an onboard setting, which are 3200/2180/1150lm. The module has three power levels of 25.2/16.8/8.4W at constant voltage 24V and delivers pure white light with 4000K and CRI80+. Its efficiency can reach up to 137lm/W. The module is optimized for advertising and luminous ceilings, and its insulation displacement termination provides a solderless connection option.

The module is incredibly slim, measuring 290x290x7mm, and it comes with a 5-year warranty, which gives buyers peace of mind. Lastly, it is proudly made in Germany.

Features BackMatrix-49-3080

• Module with 49 high performance Nichia 757G LEDs
• Maximum luminous flux per module 3200lm or 38000lm per square meter
• 3 light levels via onboard setting: 3200/2180/1150lm
• 3 power levels 25.2/16.8/8.4W at constant voltage 24V
• Pure white light with 4000K and CRI80+
• Efficiency up to 137lm/W
• Optimized for advertising and luminous ceilings
• Insulation displacement termination as a solderless connection option
• No cooling required
• On-board brightness adjustment
• Three brightness settings adjustable via the switch on the module
• Nichia binning (3-step MacAdam) for consistent white lighting
• Dimensions: 290x290x7mm
• 5 years warranty
• Made in Germany
