With 24% global market share, Nichia is the largest LED manufacturer in the world and inventor of the blue (and also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to durability, brightness and efficiency, reaching new records on a regular basis.
Lumitronix is the official Nichia distributor in Europe and Ledrise.eu is the exclusive online sales platform for all Nichia LEDs from Lumitronix. We order them directly from Nichia, Japan and ship from Germany to you.

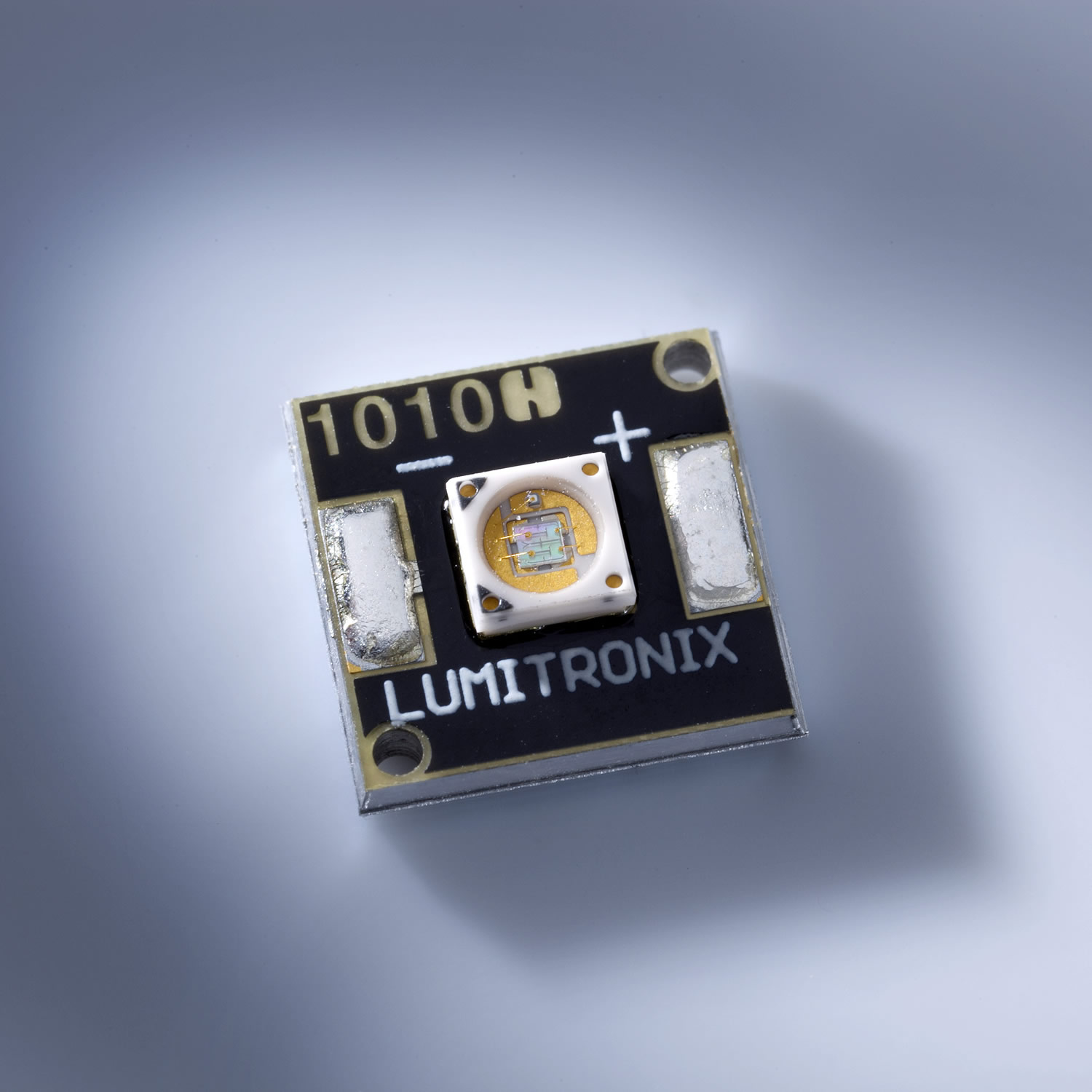

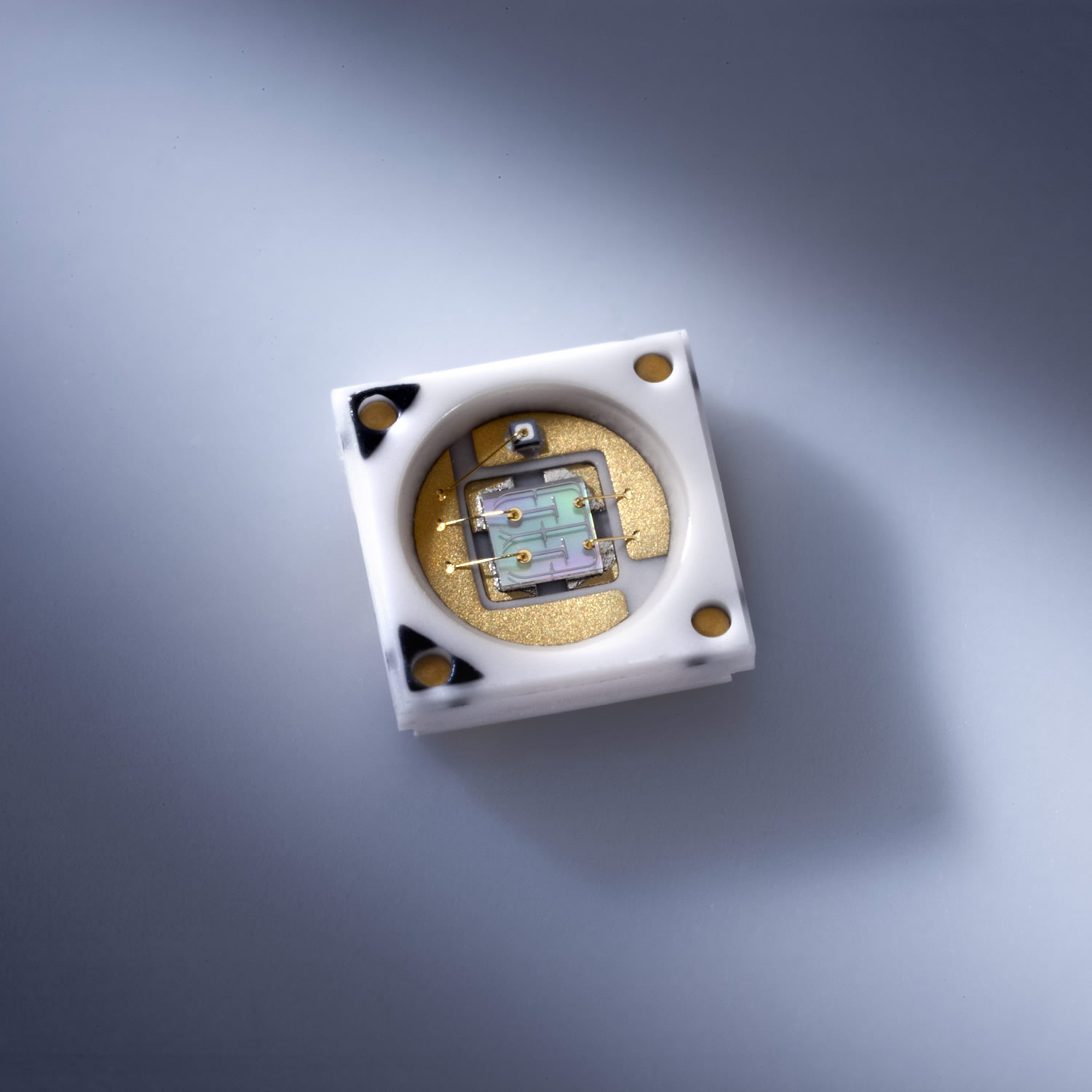

Nichia's NCSU 275 SMD LED UV is a high-quality and reliable product suitable for various industrial applications. The LED has a maximum radiant power of 370mW at 405nm wavelength, making it perfect for use in applications such as medical engineering, test and sorting machines, hardening, and cameras with UV light. The LED comes in a compact 3.5x3.5x0.88mm size, which makes it easy to integrate into any application.
The NCSU 275 LED is available in four different wavelengths, including 365nm, 385nm, 395nm, and 405nm, making it versatile for different applications. The LED is manufactured by one of the largest LED manufacturers in the world, Nichia, which is renowned for its quality, durability, brightness, and homogeneity.
The LED is packaged in an SMD UV 275 package, which is designed for ease of use and installation. The LED is also rated as risk group 3 (EN 62471), making it safe for use in industrial settings. However, it is essential to consult our employees for advice on the product before ordering, as the LED constitutes a danger for the eye even at short-term radiation.
Features
Application areas
Warning Actinic UV danger for eyes and skin
Ultra violet radiation in the wavelength range of 200-400nm may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.
UV-A danger for the eyes
Ultra violet radiation in the wavelength range of 315-400nm (UV-A) is for the most part absorbed by the eye lens and may cause UV cataracts (clouding of the lens of the eye).
SKU | 14330.02 |
---|---|
Weight brut (g) | 1.000000 |
LED Size | 3.5x3.5 mm |
LED Family | Nichia UV (New!) |
LED Application | Lithography, Curing |
LED Installation Package | Emitter |
Color | UVA Ultraviolet |
Viewing Angle | 120° |
Forward Current Typ | 500ma |
Forward Voltage Typ (V) | 3.6 |
Power (W) | 1.8 |
Product lifetime (h) | 60000 |
Wavelength (nm) | 385 |
Manufacturer Product Code | NCSU275 U385/P3-P4/Lk1-M2 |
Brand | Nichia |
Availability beyond shown stock: | YES |
Dimensions: Length (cm) | 0.35 |
Dimensions: Width (mm) | 0.90 |
Dimensions: Height (mm) | 0.35 |
